A5s
Cikkszám:
M01020012

The A5s is a high-end small receiving card developed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as
NovaStar). A single A5s supports resolutions up to 320×256@60Hz. Supporting the pixel level brightness and chroma
calibration, individual gamma adjustment for RGB, and 3D functions, the A5s can significantly improve the display
effect and user experience.

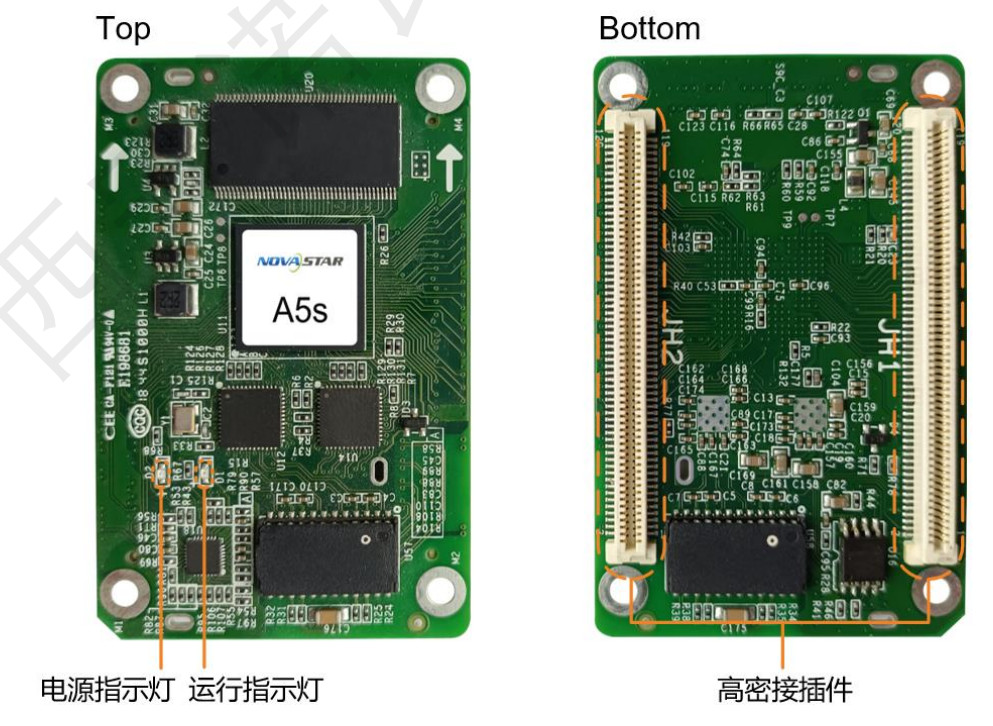

The A5s uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high
stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of
serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware
design, the A5s has improved electromagnetic compatibility and is suitable for various on-site setups.

A5s
Details
Improvements to Display Effect:

 Pixel level brightness and chroma calibration
   Work with NovaStar’s high-precision calibration
   system to calibrate the brightness and chroma of
   each pixel, effectively removing brightness
   differences and chroma differences, and
   enabling high brightness consistency and
   chroma consistency.

 Quick adjustment of dark or bright lines
   The dark or bright lines caused by splicing of
   cabinets or modules can be adjusted to improve
   the visual experience. This function is easy to
   use and the adjustment takes effect immediately.

 3D function
   Working with the sending card that supports 3D
   function, the receiving card supports 3D image
   output.
 Image rotation in 90° increments
   The display image can be set to rotate in
   multiples of 90° (0°/ 90°/180°/270°).

Specifications

Data
Crowd:
17,3 g/db
