A5s Plus
Cikkszám:
M01020064

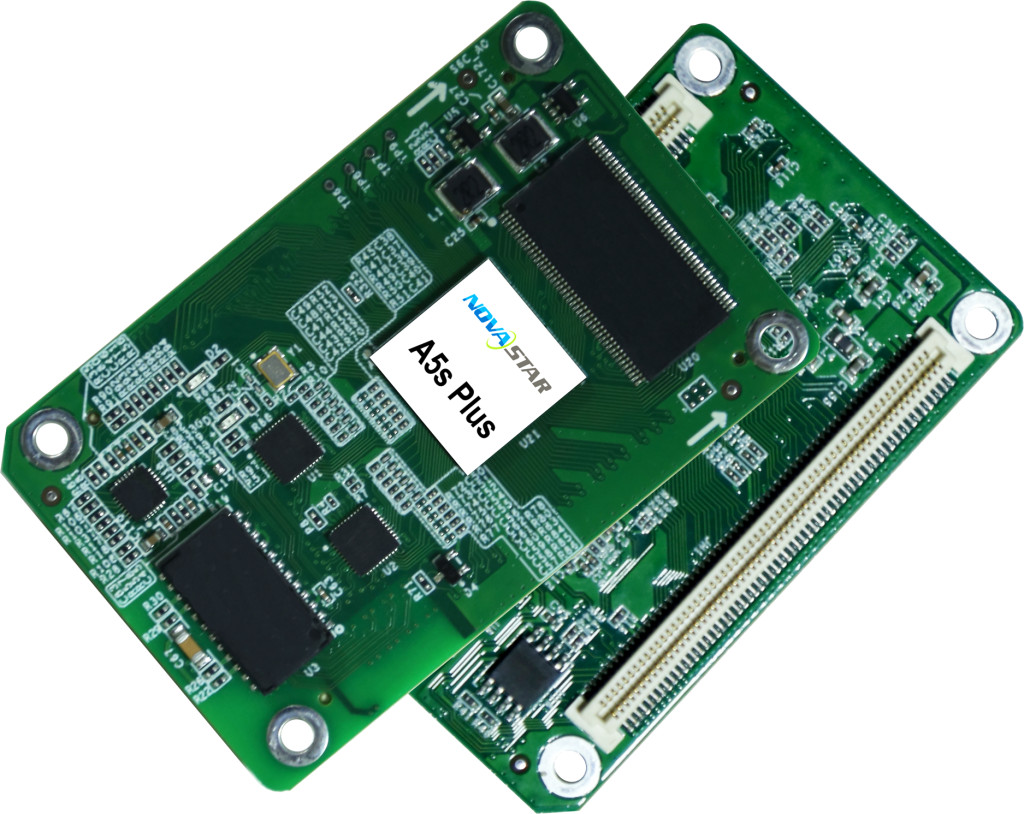

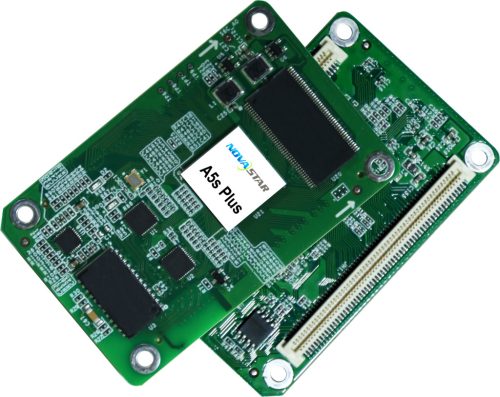

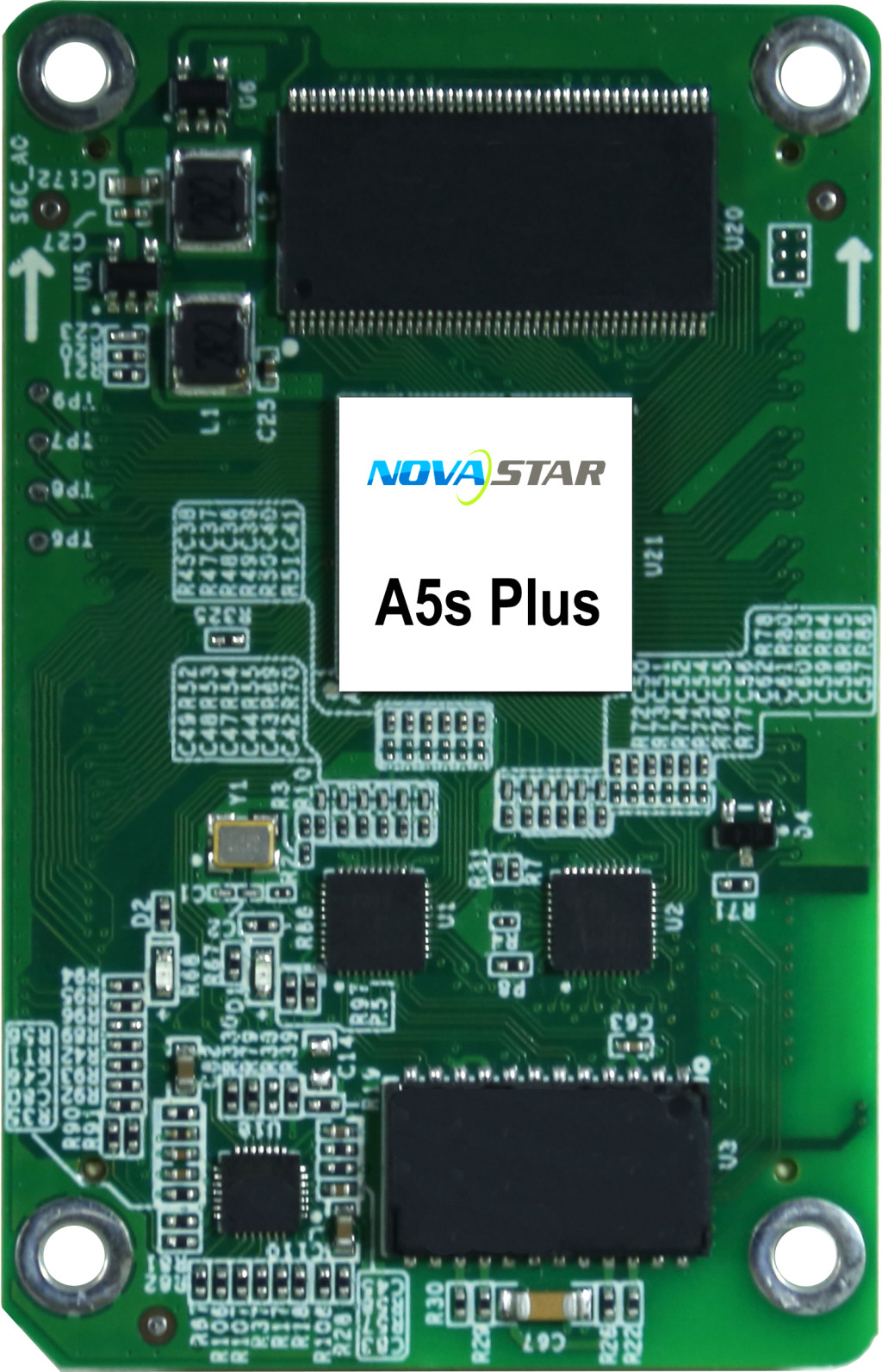

The A5s Plus is a general small-size receiving card developed by NovaStar Tech Co., Ltd.
(hereinafter referred to as NovaStar). Supporting various functions such as Color Management,
18bit+, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright
Lines, Multi-batch Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and
90° Image Rotation, the A5s Plus can significantly improve the display effect and user
experience.

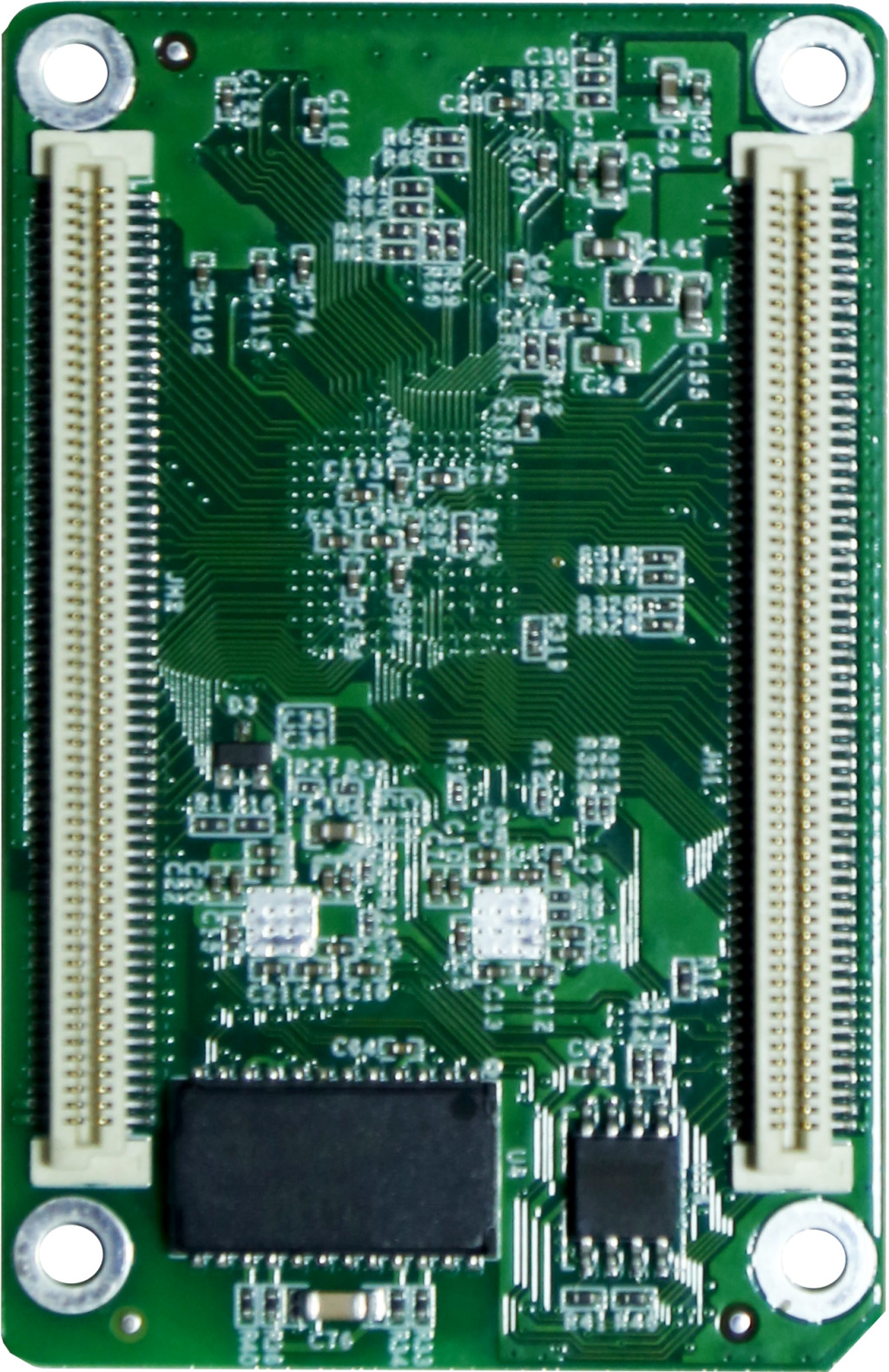

The A5s Plus uses high-density connectors for communication to limit the effects of dust and
vibration, resulting in high stability. It supports up to 32 groups of parallel RGB data or 64
groups of serial data (expandable to 128 groups of serial data). Its reserved pins allow for
custom functions of users. Thanks to its EMC Class B compliant hardware design, the A5s Plus
has improved electromagnetic compatibility and is suitable for various on-site setups.

 For PWM driver ICs, the maximum load capacity per card is:

− 512×384@60Hz (For 8bit video sources)
− 256×384@60Hz (For 10bit and 12bit video sources)


 For common driver ICs, the maximum load capacity per card is:
− 384×384@60Hz (For 8bit video sources)
− 192×384@60Hz (For 10bit and 12bit video sources)

A5s Plus
A5s Plus
A5s Plus
1
3
Details
Improvements to Display Effect:

 Color Management
   Support standard (Rec.709 / DCI-P3 / Rec.2020) and custom color gamuts, enabling more
   precise colors on the screen.

 18bit+
   Improve the LED display grayscale by 4 times to avoid grayscale loss due to low brightness
   and allow for a smoother image.

 Pixel Level Brightness and Chroma Calibration
   Work with NovaStar's calibration system to calibrate the brightness and chroma of each
   pixel, effectively eliminating differences and enabling high consistency for both brightness
   and chroma.

 Quick Adjustment of Dark or Bright Lines
   The different brightness of seams caused by splicing of modules or cabinets can be
   corrected to improve the visual experience. The correction is easy and takes effect
   immediately.

 Multi-batch Adjustment
   Adjust the brightness of cabinets or modules to minimize display discrepancies caused by
   variations in production batches.

 Low Latency
   For PWM driver ICs, the latency of video source on the receiving card end can be reduced to
   1 frame. To use low latency with DCLK continuous PWM driver ICs, a customized firmware is
   required.

 3D
   Work with the controller that supports 3D function to enable 3D output.

 Individual Gamma Adjustment for RGB
   Working with NovaLCT and the controller that supports this function, the receiving card
   supports individual adjustment to red gamma, green gamma and blue gamma, which can
   effectively control image non-uniformity at low grayscale conditions and white balance
   offset, allowing for a more realistic image.

 90° Image Rotation
   The display image can be rotated in multiples of 90° (0°/90°/180°/270°).

Specifications
Rerelase Notes

Data
Crowd:
16,2 g/db
