CVT4K-M
Cikkszám:
M09030090

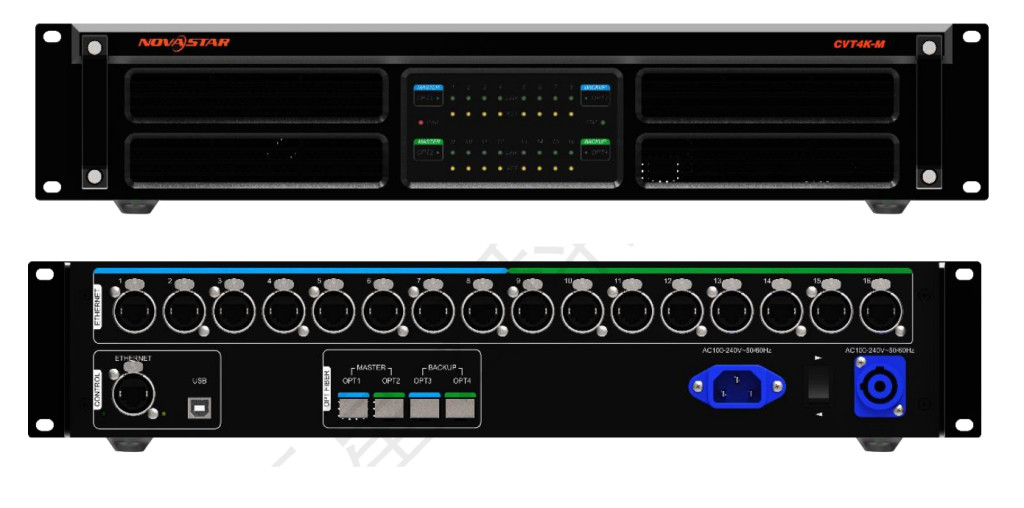

The CVT4K-M is a high-performance fiber converter developed by NovaStar Tech Co., Ltd.
(hereinafter referred to as NovaStar). It is used for conversion between optical signals and
electrical signals, allowing for long-distance signal transmission that is stable and not easily
interfered with. Easy to use, the CVT4K-M makes it convenient to connect terminal devices and
simplifies on-site wiring connections
Details
Features:
16x Neutrik Ethernet inputs or outputs
4x Multi-mode twin-core LC optical ports, two as master inputs or outputs and the others as
backup
Dual redundant power supplies, more stable and reliable
2 types of power connectors (3-pin power socket and PowerCON), satisfying different
customer needs
2 types of control ports (type-B USB and Ethernet), more flexible and convenient to connect
a control computer
Various indicators on the front panel to show device status clearly
Specifications
Rerelase Notes
16x Neutrik Ethernet inputs or outputs
4x Multi-mode twin-core LC optical ports, two as master inputs or outputs and the others as
backup
Dual redundant power supplies, more stable and reliable
2 types of power connectors (3-pin power socket and PowerCON), satisfying different
customer needs
2 types of control ports (type-B USB and Ethernet), more flexible and convenient to connect
a control computer
Various indicators on the front panel to show device status clearly
Specifications
Rerelase Notes
Data
Crowd:
4,6 kg/db
