ET2S-G
Cikkszám:
M10010208

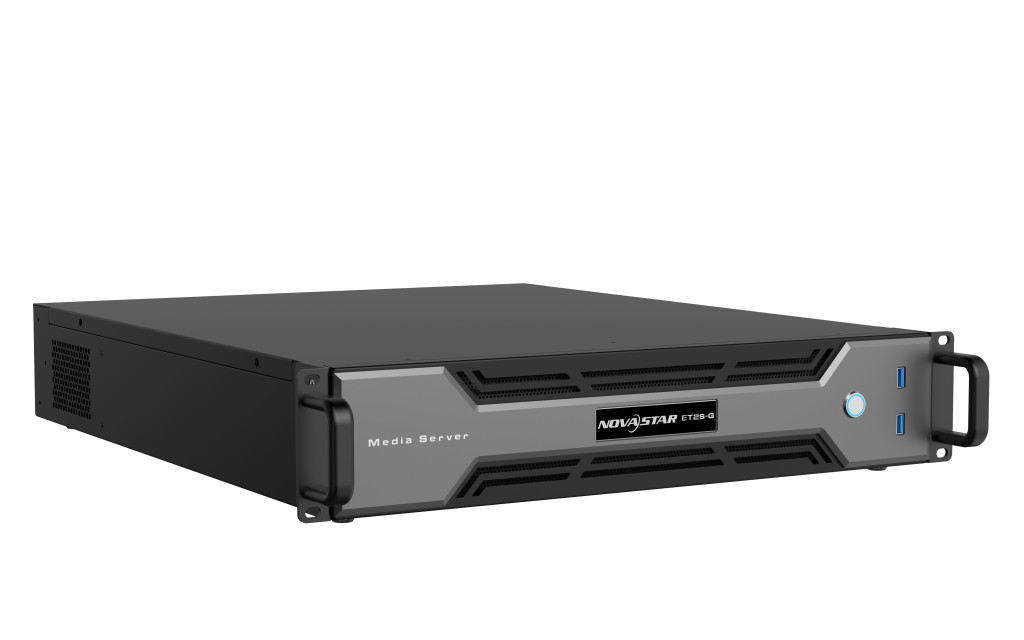

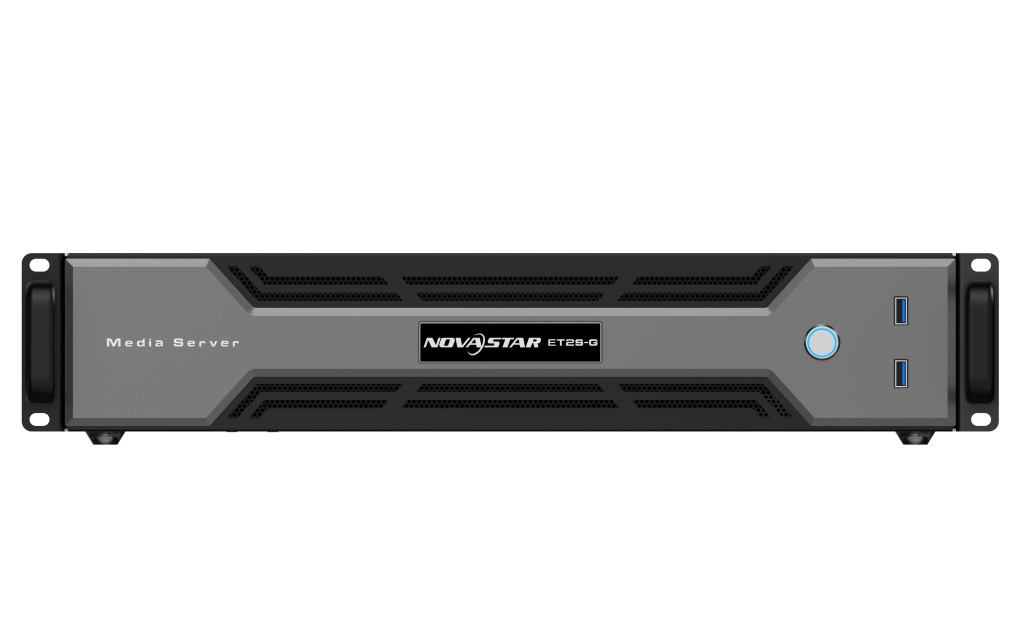

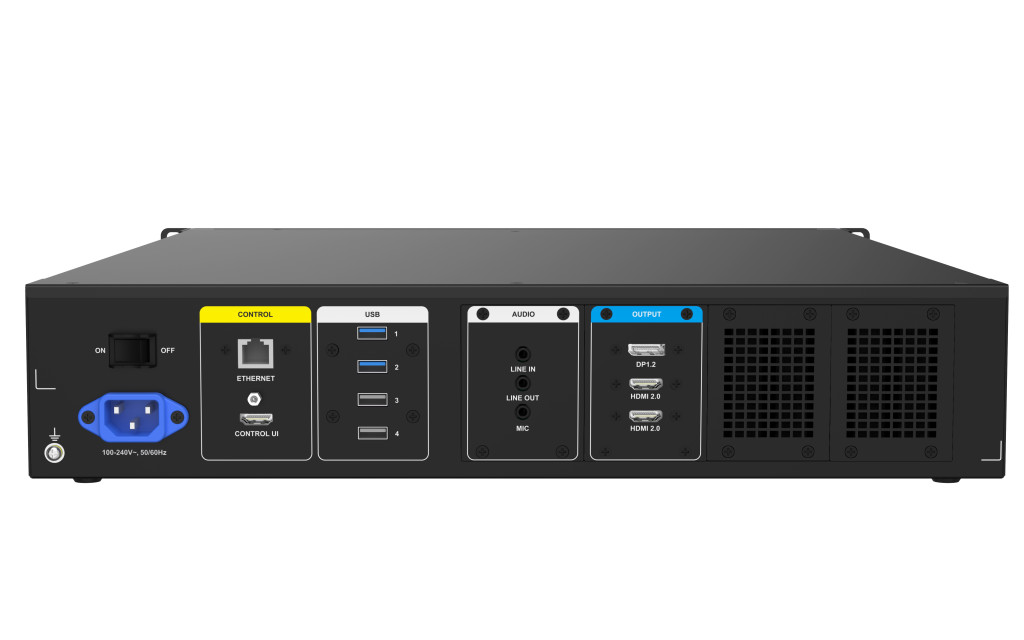

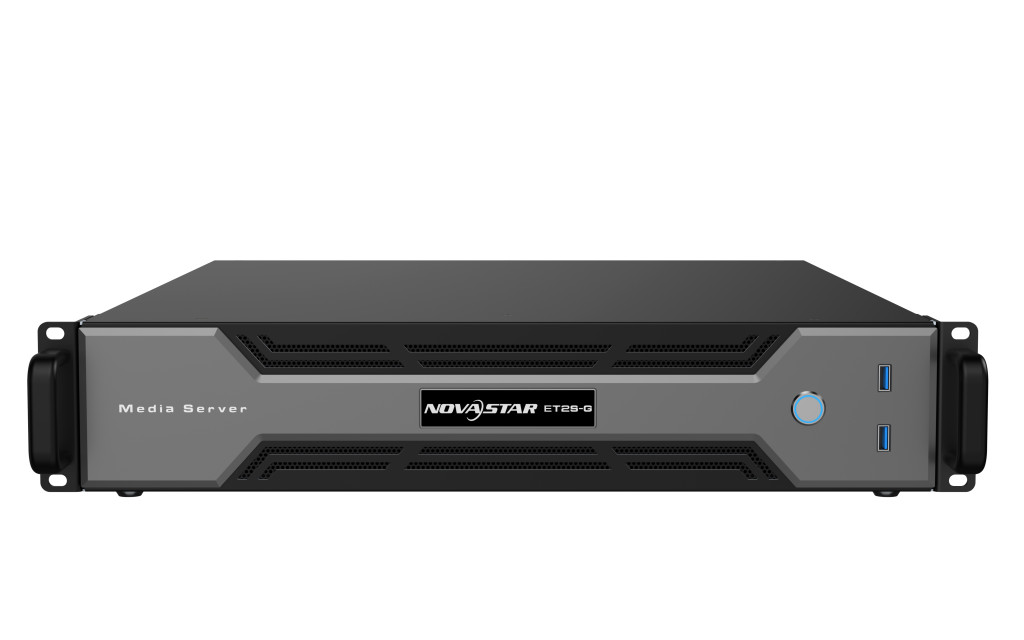

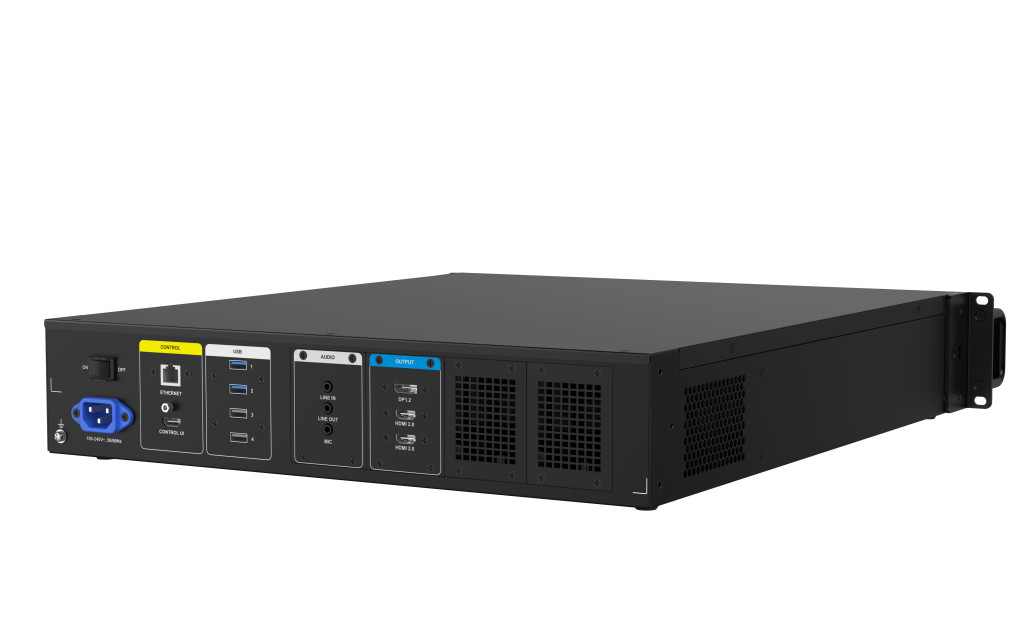

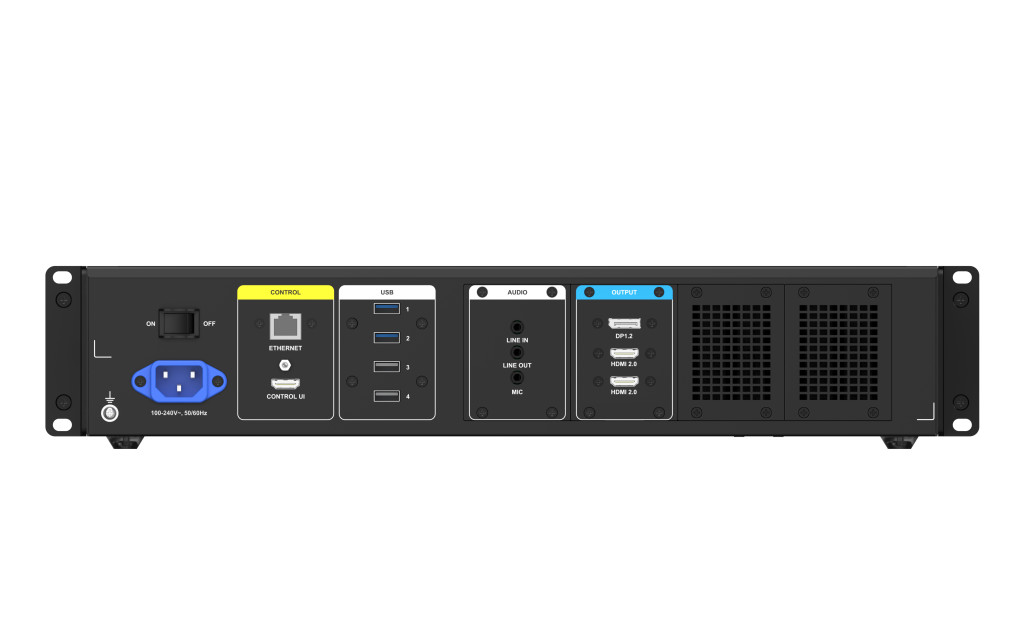

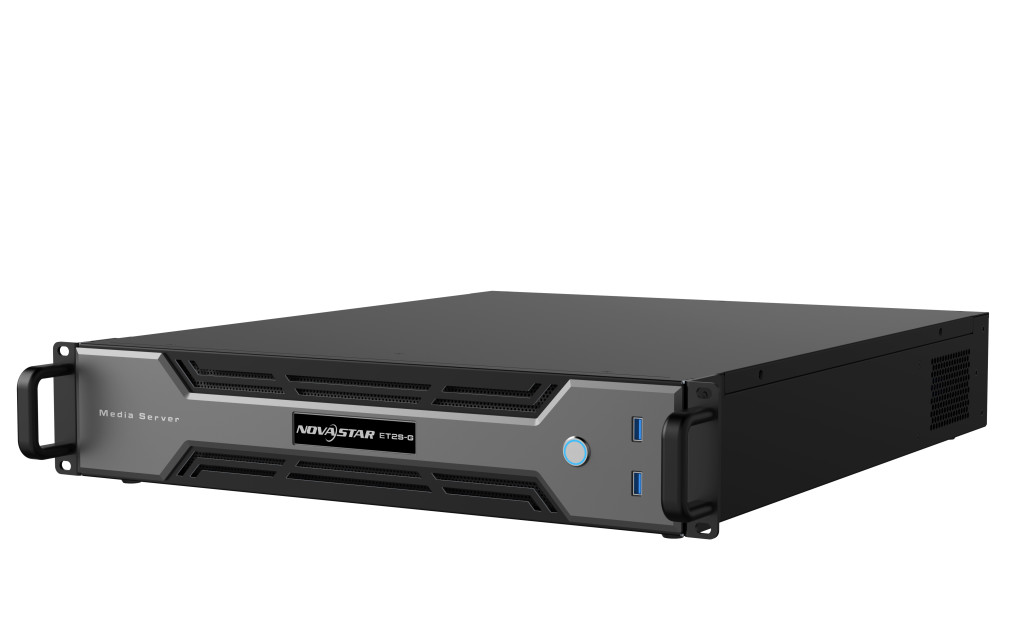

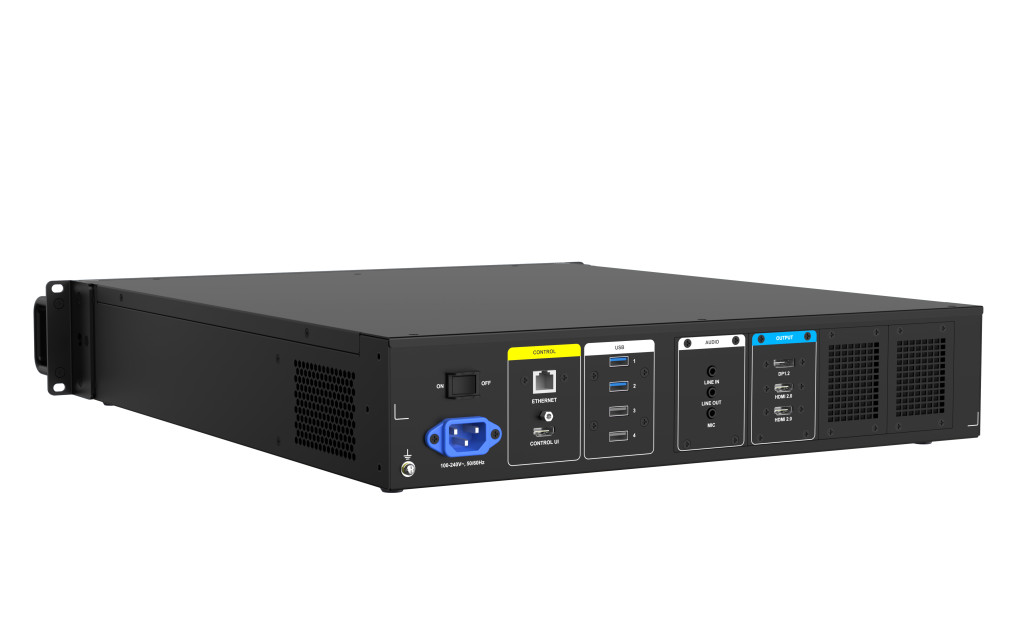

The ET2S-G is a new multimedia control system developed by NovaStar, which is specifically designed for
multimedia exhibition halls, banquet halls and other small and medium fixed installation scenarios. The ET2S-G
provides an excellent pixel-to-pixel display with ultra-high definition, diversified mosaic creativity and outstanding
media arrangements for professional stage performances. Built-in with intuitive and user-friendly media playback and
control software, the ET2S-G enables simplified stage display management and best-in-class human-machine
interaction.

ET2S-G
ET2S-G
ET2S-G
ET2S-G
ET2S-G
ET2S-G
ET2S-G
ET2S-G
1
8
Details

Chassis: 2U
Memory Size: 16G（DDR4）
CPU: 12th Gen Intel® Core (i5 12400)
Storage: M.2 SSD 500GB
Ghraphics Cards Model: MPGT400
Loading Capacity: 2x4096×2160@60Hz
Decoding Capacity: 1 layer of 8K@60 or 2 layers of 4K@60
Program Quantity: Unlimited
Layer Quantity: Up to 8 layers and 1 audio layer
EDID Lock: Yes
Cascading: Yes

Frame Synchronization Splicing: No
Dual-machine Backup: No
Ipad Control: Yes
Protocol Control: Yes
Operation System: Windows 10 Enterprise LTSC

Software: Kompass FX2
Media Type: Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, digital clock



Specifications

Data
Crowd:
10 kg/db
