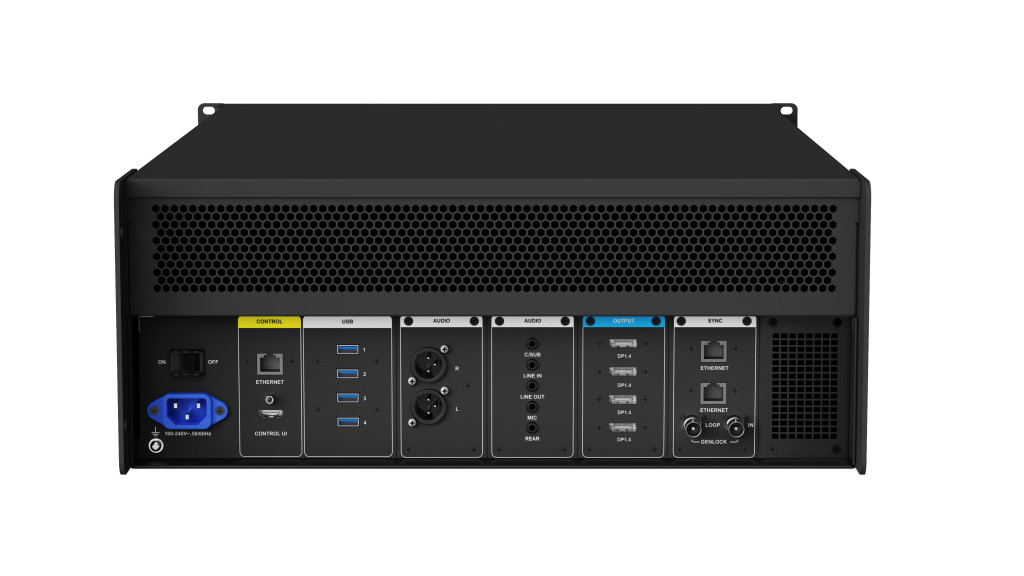

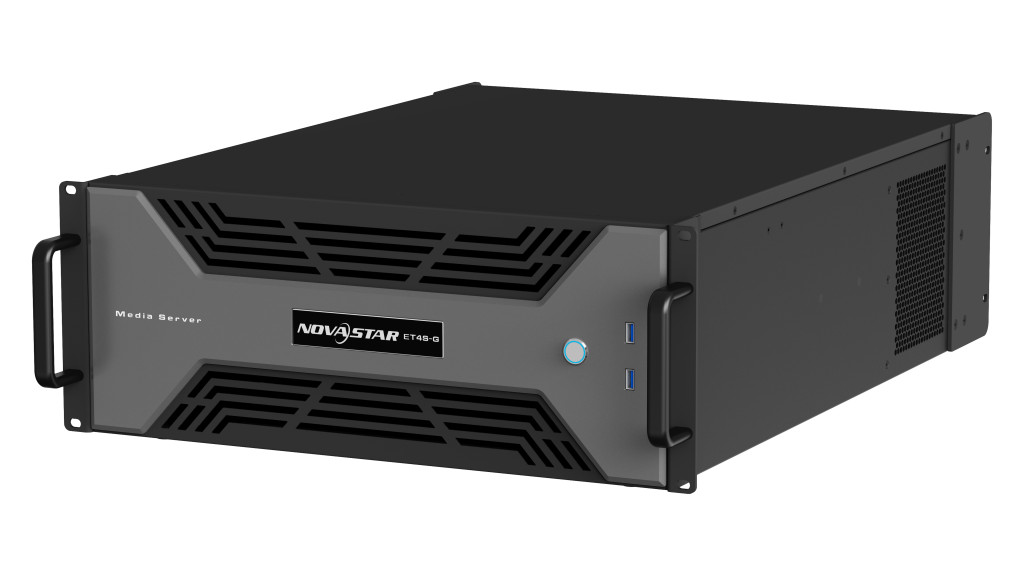

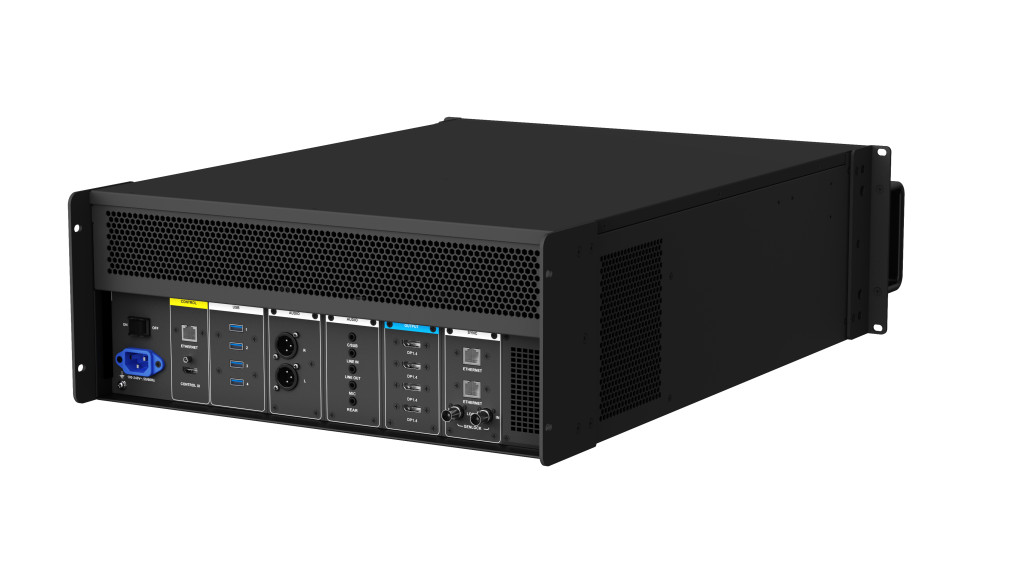

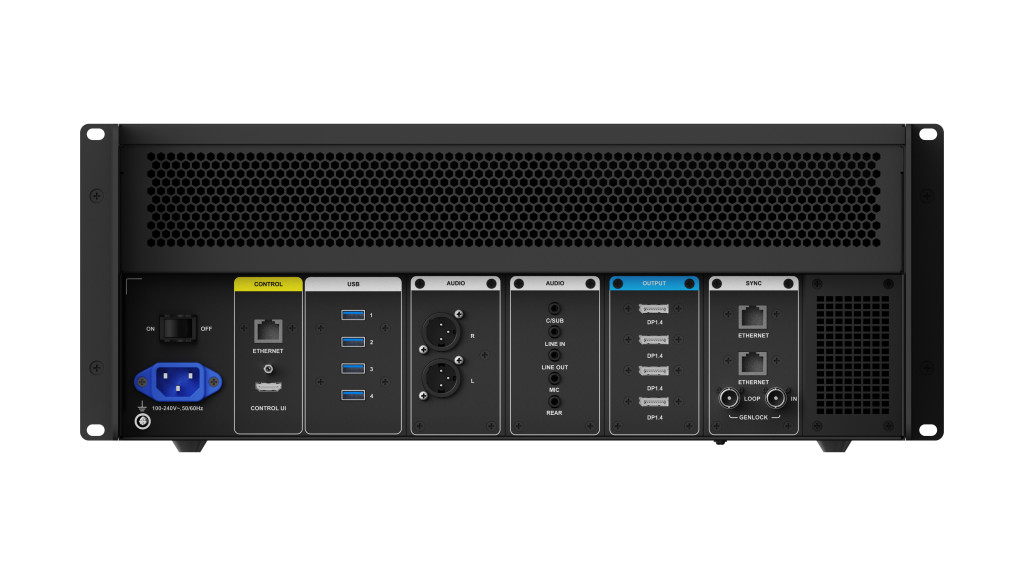

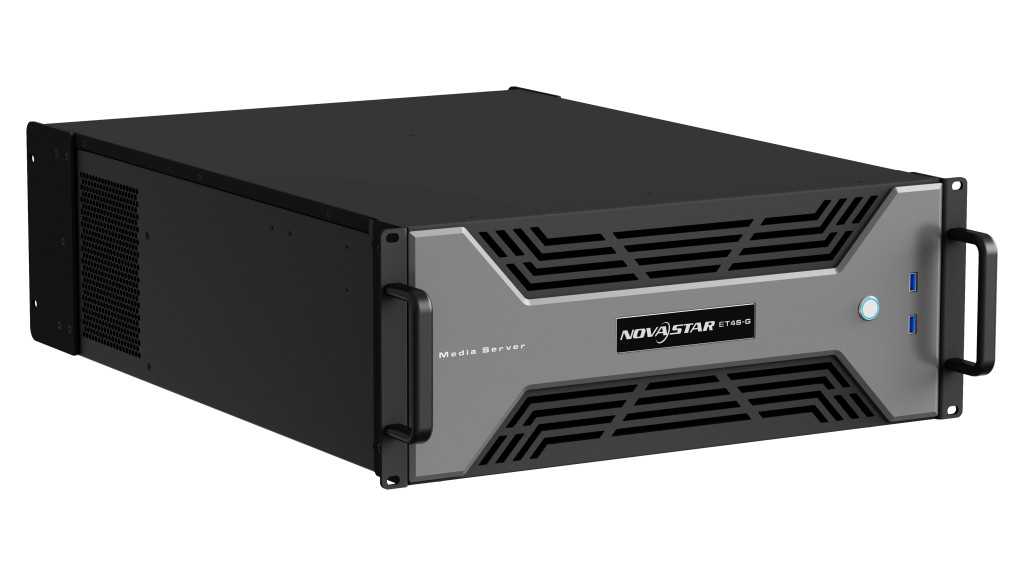

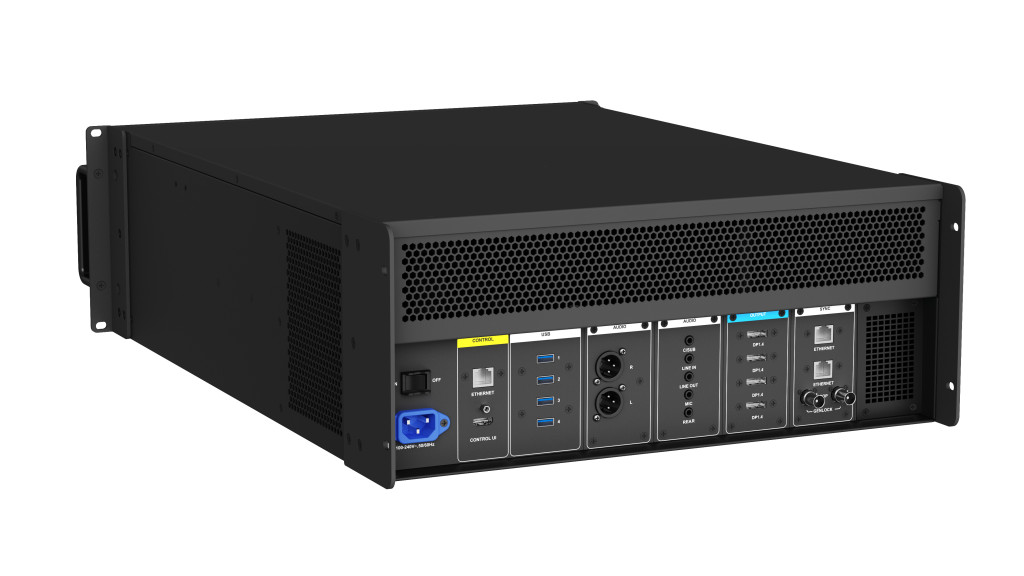

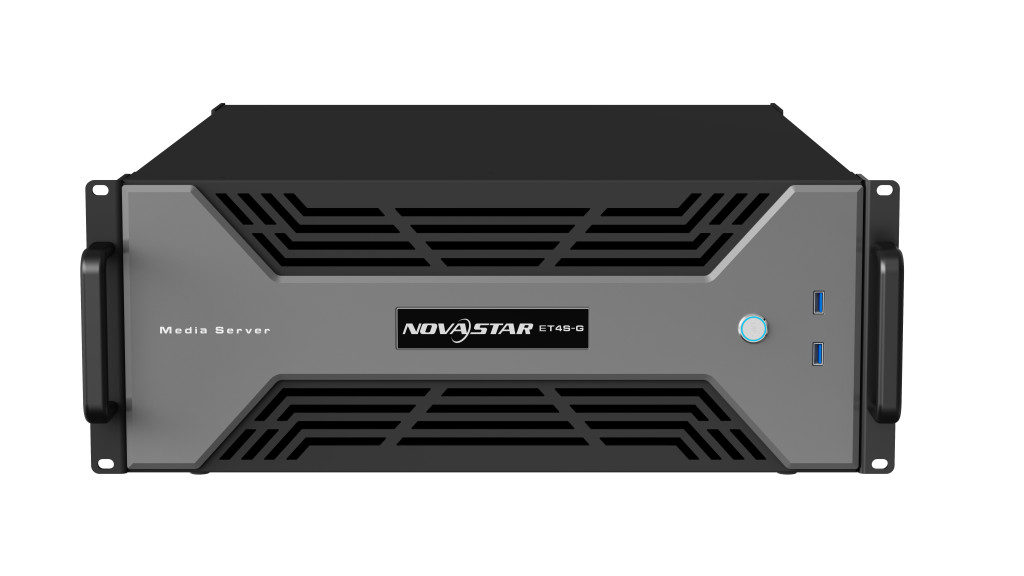

ET4S-G(P2) Mainframe
Cikkszám:
M10010205

The ET4S-G is a brand new media server developed by NovaStar, which is specifically designed for multimedia
exhibition halls, banquet halls, stage performances and other creative fixed installation scenarios. The ET4S-G
provides an excellent pixel-to-pixel display with ultra-high definition, diversified mosaic creativity and
outstanding media arrangements for professional stage performances. Built-in with intuitive and user-friendly
media playback and control software, the ET4S-G enables simplified stage display management and best-in-class
human-machine interaction.

ET4S-G(P2) Mainframe
ET4S-G(P2) Mainframe
ET4S-G(P2) Mainframe
ET4S-G(P2) Mainframe
ET4S-G(P2) Mainframe
ET4S-G(P2) Mainframe
ET4S-G(P2) Mainframe
1
7
Details

Chassis: 4U
Memory Size: 32G（DDR4）
CPU: 12th Generation Intel® Core Processor(i7 12700)
Storage: 250GB M.2 SSD (System Driver), 1TB M.2 SSD (Storage Driver)

Ghraphics Cards Model: MPG2200
Loading Capacity: 4×4096×2160@60Hz
Decoding Capacity: 1 layer of 8K@30 or 2 layers of 4K@60
Program Quantity: Unlimited
Layer Quantity: Up to 12 layers and 1 audio layer, with supported for expandability
EDID Lock: Yes
Cascading: Yes

Frame Synchronization Splicing: No
Dual-machine Backup: No
Ipad Control: Yes
Protocol Control: Yes
Operation System: Windows 10 Enterprise LTSC

Software: Kompass FX3 (Dongle Included)
Media Type: Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock, sequence frame
