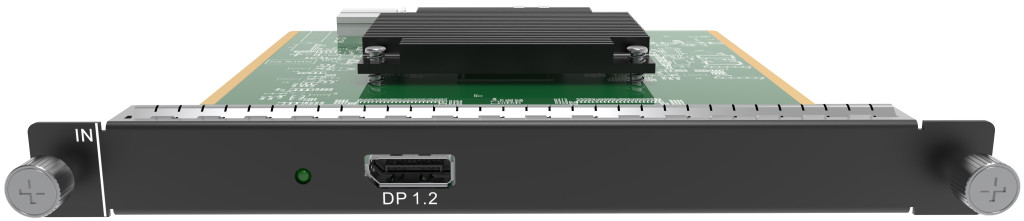

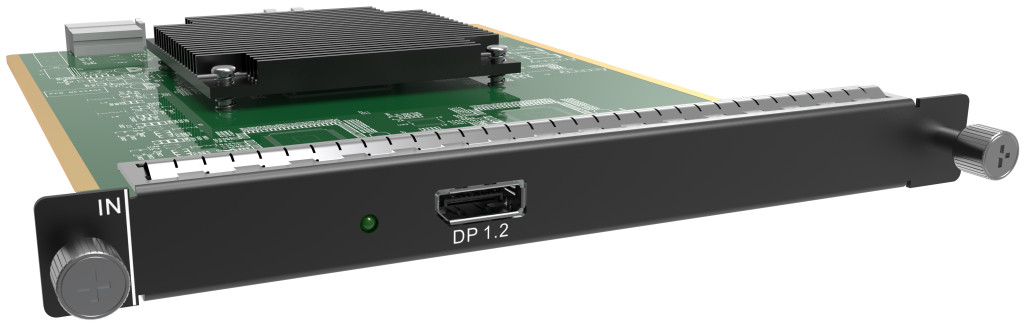

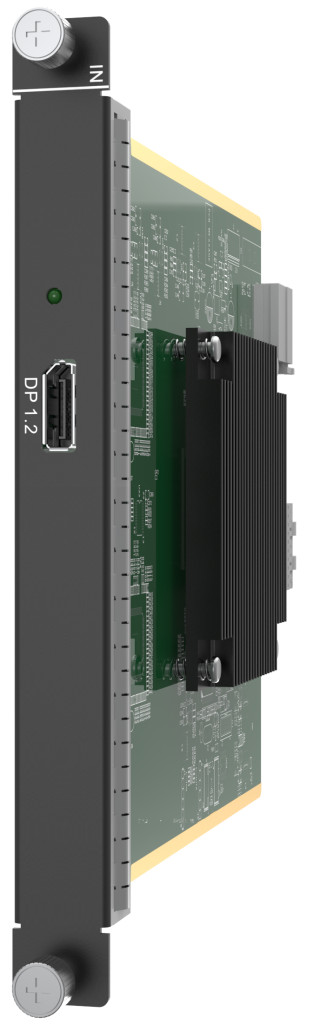

H_1xDP1.2 input card

1x DP 1.2
 Backward compatible with DP 1.1
 Each connector supports the maximum resolution of 4096×2160@60Hz or
8192×1080@60Hz and the minimum resolution of 800×600@59.94Hz.

 Custom resolutions:
− Max. width: 8192 pixels (8192×1152@60Hz)
− Max. height: 4095 pixels (2188×4095@60Hz)
 HDCP 2.2 compliant.
 Supports accompanied audio.
 Supports 144Hz input.
 Does not support interlaced signal input.

Status LEDs:
 On: The input source is accessed normally.
 Off: No input source is accessed or the input source is abnormal.

Specifications:
 Weight: 550 g
 Dimensions: 193 mm × 247.12 mm × 21.15 mm
 Power consumption: 9.4 W
