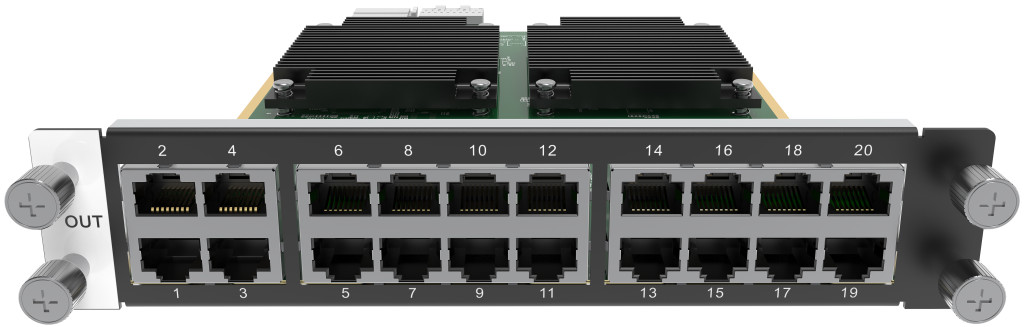

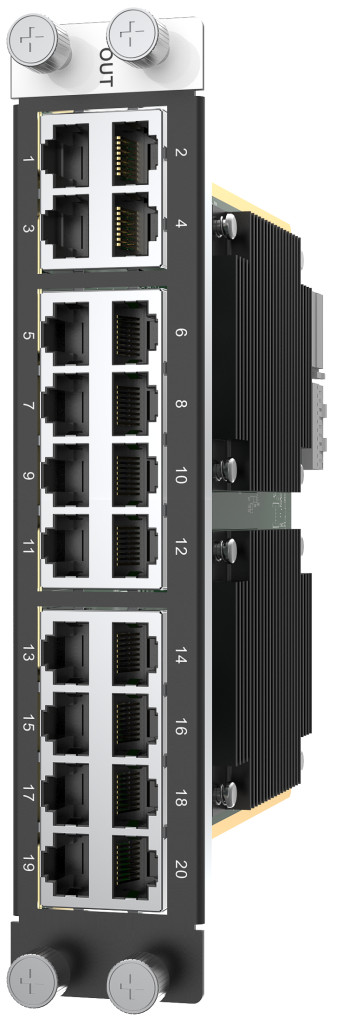

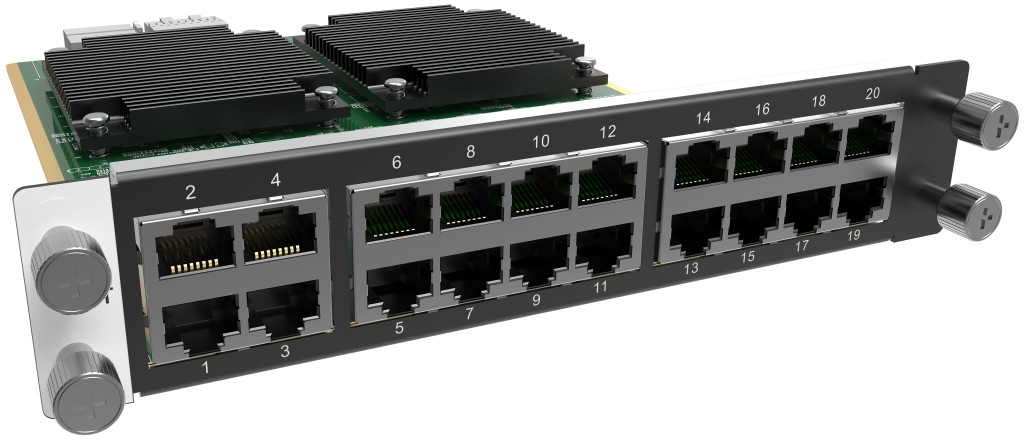

LED 4K sending card can load up to 13,000,000 pixels (max. width: 10,752 pixels,
max. height: 10,752 pixels).
This card occupies two slots.
20x RJ45 Gigabit Ethernet outputs
− Bit depth: 8-bit
A single Ethernet port loads up to 650,000 pixels.
− Bit depth: 10-bit
A single Ethernet port loads up to 320,000 pixels.
Backup between Ethernet ports
Supports 144Hz output.
Specifications:
Weight: 600 g
Dimensions: 193 mm × 247.12 mm ×41.25 mm
Power consumption: 40.1 W
