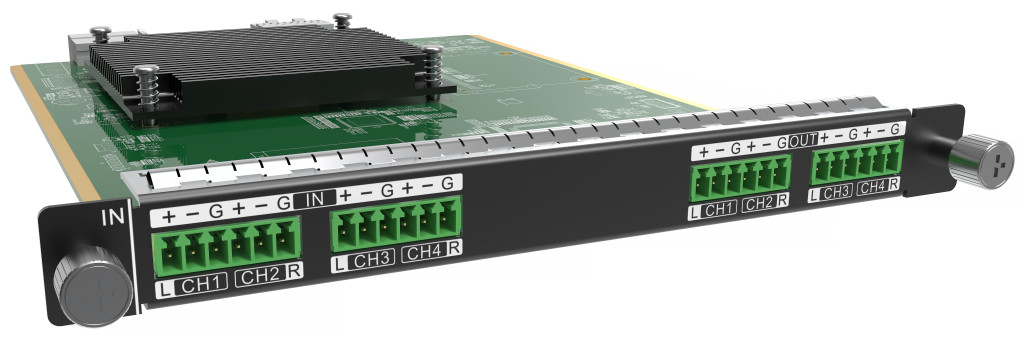

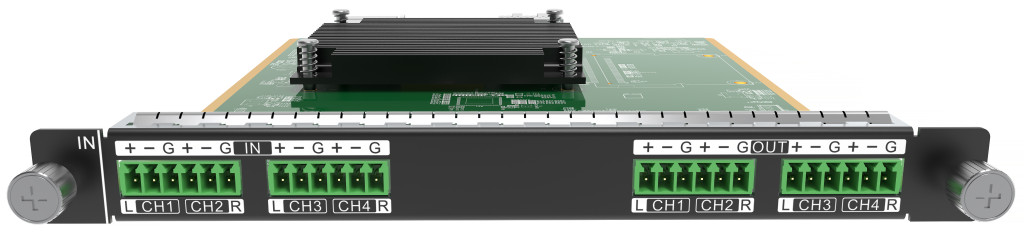

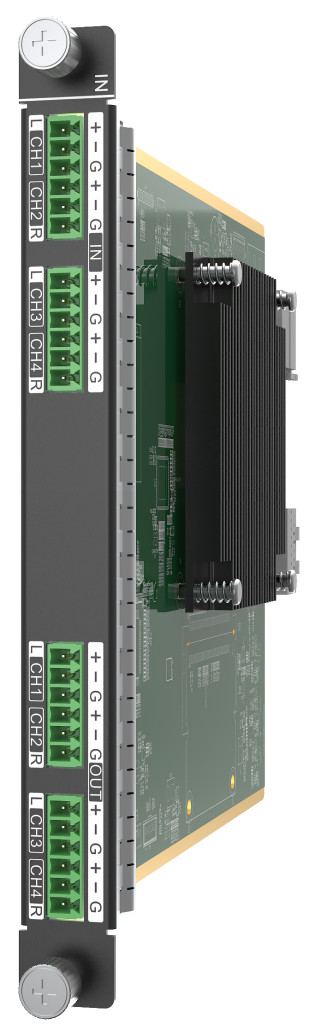

Single channel: 4x phoenix audio inputs, 4x phoenix audio outputs

Dual channel: 2x phoenix audio inputs, 2x phoenix audio outputs

 Audio sampling rate: 48 kHz
 When the single channel balanced audio is used as the audio source, both
the input and output audio channels are four.
 When the dual channel balanced audio is used as the audio source, both the
input and output channels will be halved.
 Output the accompanied audio of the video input connector and the audio of
the audio input card.

Output volume adjustment and one-click mute function supported
 Switching between the single channel and dual channel
 Audio output delay supported
Specifications:
 Weight: 550 g
 Dimensions: 193 mm × 247.12 mm × 21.15 mm
 Power consumption: 6 W
Note:
If you want to output the accompanied audio, please select the layer opened by
the input card with the silkscreen marking .
