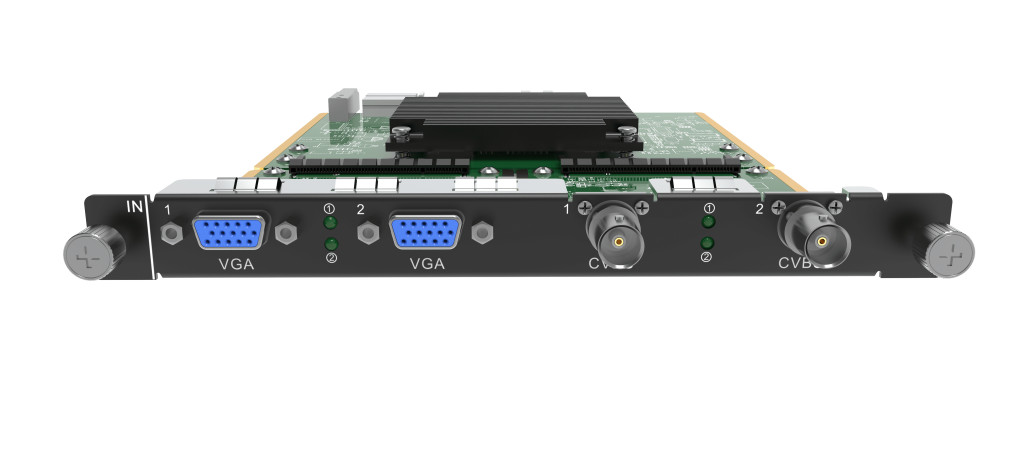

2x VGA
Each connector supports the maximum resolution of 1920×1200@60Hz.
Does not support interlaced signal input.
2x CVBS
Supports PAL and NTSC.
Supports interlaced signal input.
Status LEDs:
On: The input source is accessed normally.
Off: No input source is accessed or the input source is abnormal.
Specifications:
Weight: 550 g
Dimensions: 193 mm × 247.12 mm × 21.15 mm
Power consumption: 9.3 W
