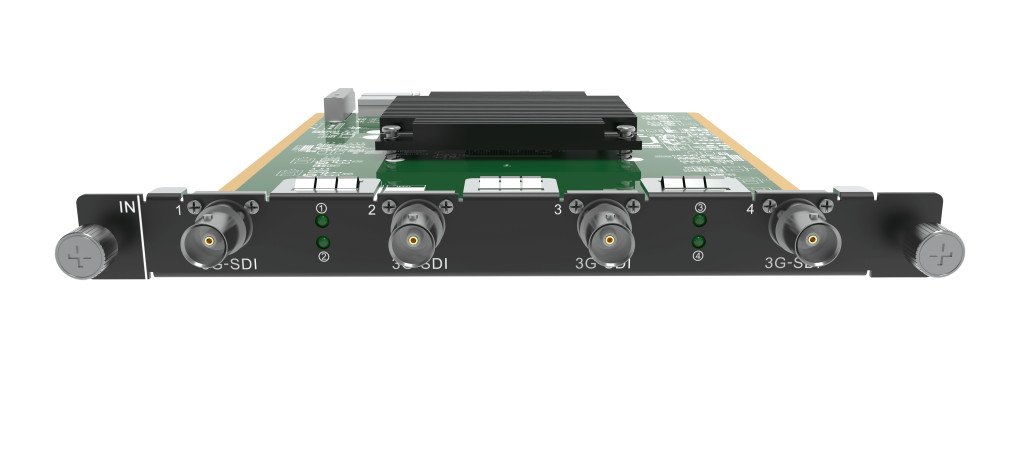

4x 3G-SDI
Backward compatible with HD-SDI and SD-SDI
Supports ST-424 (3G), ST-292 (HD) and SMPTE 259 SD.
Each connector supports the maximum resolution of 1920×1080@60Hz.
Supports 1080i/576i/480i de-interlacing processing.
Status LEDs:
On: The input source is accessed normally.
Off: No input source is accessed or the input source is abnormal.
Specifications:
Weight: 550 g
Dimensions: 193 mm × 247.12 mm × 21.15 mm
Power consumption: 12.6 W
