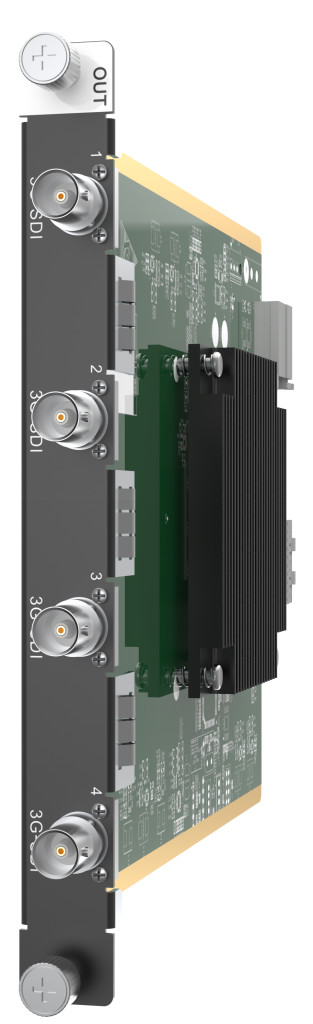

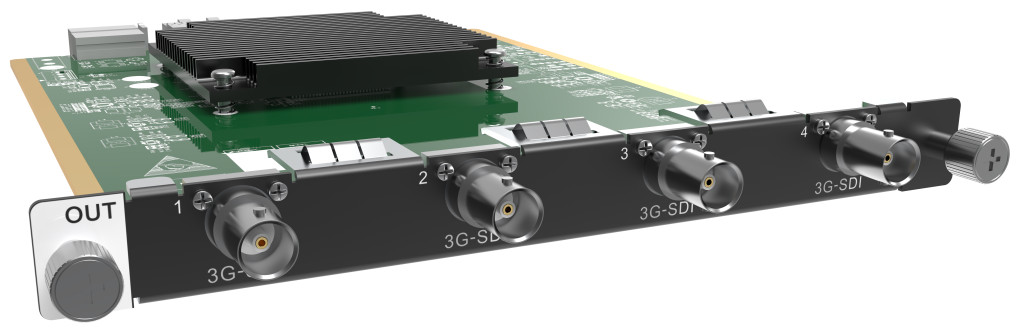

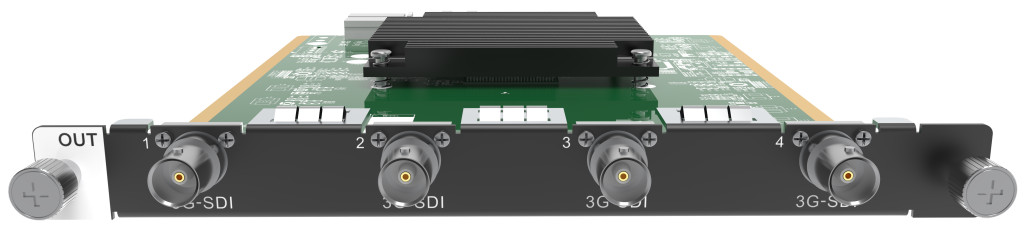

4x 3G-SDI
 Backward compatible with HD-SDI and SD-SDI output
 Each connector supports the maximum resolution of 1920×1080@60Hz.
 Supports 10-bit YCbCr 4:2:2 output.
 Supports Level A format only.
 The screen loaded by this card does not support the fade transition effect.
 Supports the following standard output resolutions:
− PAL: 720×576i@50Hz
− NTSC: 720×480i@59.94Hz
− 1920×1080i@50/59.94/60Hz
− 1280×720p@23.98/24/25/29.97/30/50/59.94/60Hz
− 1920×1080p@23.98/24/25/29.97/30/50/59.94/60Hz

Specifications:
 Weight: 500 g
 Dimensions: 193 mm × 247.12 mm × 21.15 mm
 Power consumption: 24 W
