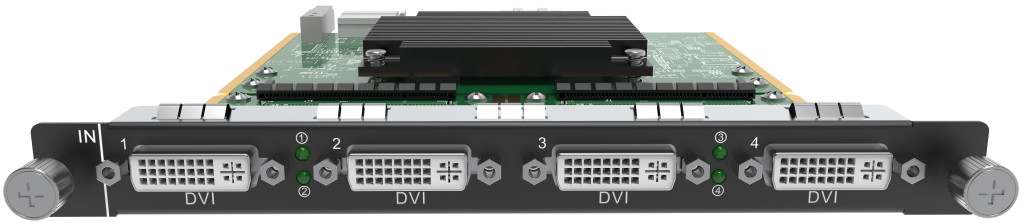

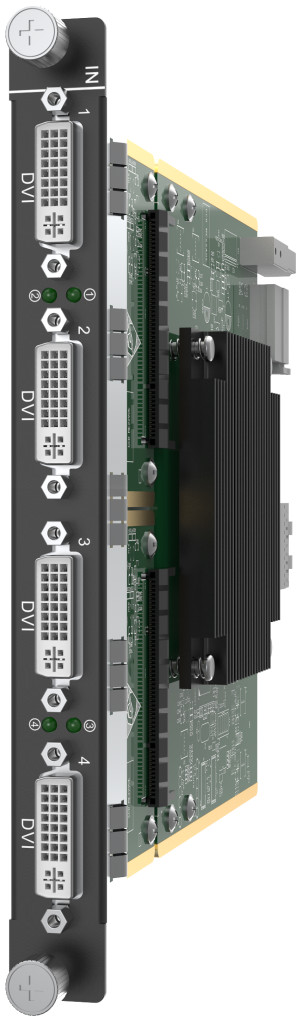

4x SL-DVI
Support for single output, dual link output and 144Hz output
 Single link output:
− Four connectors are all available for output.
− Each connector supports the maximum resolution of 2048×1152@60Hz.
− Custom resolutions:
Max. width: 2560 pixels (2560×972@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
− Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
− Supports 10-bit YCbCr 4:4:4 output.

 Dual link output:
− Connectors 2 and 4 are available for output.
Connector 1 copies the output on connector 2, and connector 3 copies the
output on connector 4.
− Adopts HDMI 1.4 protocol.
− Each connector supports the maximum resolution of
4096×2160@30Hz/3840×1080@60Hz.− Custom resolutions:
Max. width: 4096 pixels (4096×1124@60Hz)
Max. height: 4096 pixels (1014×4096@60Hz)
− Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output.
− Supports 10-bit YCbCr 4:4:4 output.

Status LEDs:
 On: The output connector is connected normally.
 Off: The output connector is not connected.

Specifications:
 Weight: 500 g
 Dimensions: 193 mm × 247.12 mm × 21.15 mm
 Power consumption: 22.9 W
