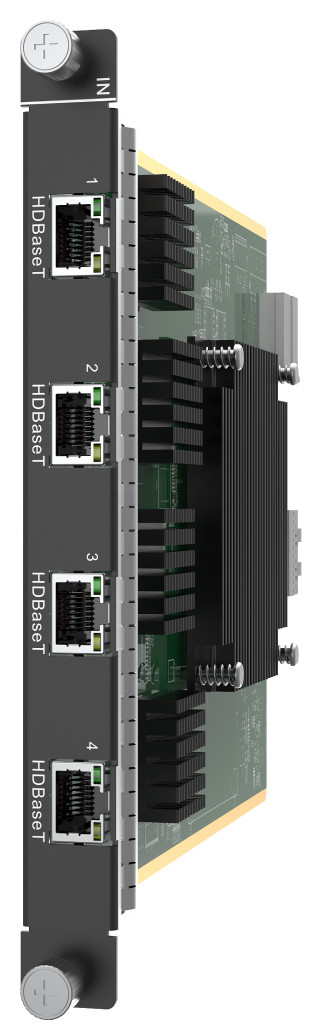

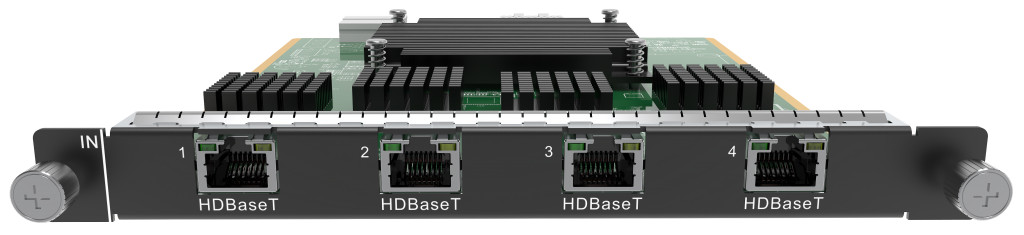

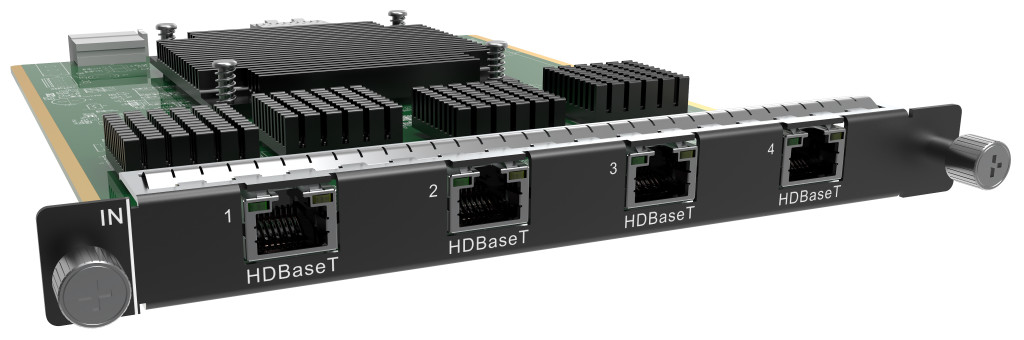

4x RJ45 Gigabit Ethernet ports
Support for single link and dual link input modes, and accompanied audio
 Single link input:
− Four connectors are all available for input.
− Each connector supports the maximum resolution of 1920×1080@60Hz and
the minimum resolution of 800×600@59.94Hz.

− Custom resolution:
Max. width: 2560 pixels (2560×983@60Hz)
Max. height: 2560 pixels (884×2560@60Hz)
− HDCP 1.4 compliant

 Dual link input:
− Connector 2 and 4 are available for input.
− Each connector supports the maximum resolution of 3840×2160@30Hz and
the minimum resolution of 800×600@59.94Hz.
− Custom resolution:
Max. width: 3840 pixels (3840×1202@60Hz)
Max. height: 3840 pixels (1092×3840@60Hz)
− HDCP 1.4 compliant

Status LEDs:
 Green: Indicating the input source access status
− On: The input source is accessed normally.
− Off: No input source is accessed.

 Yellow: Indicating the input source status
− On: The input source is normal.
− Off: The input source has no signal or the input source is abnormal.
− Flashing: The connector is in communication.

Specifications:

 Weight: 500 g
 Dimensions: 193 mm × 247.12 mm × 21.15 mm
 Power consumption: 39 W
