H5 Master
Cikkszám:
M07030006

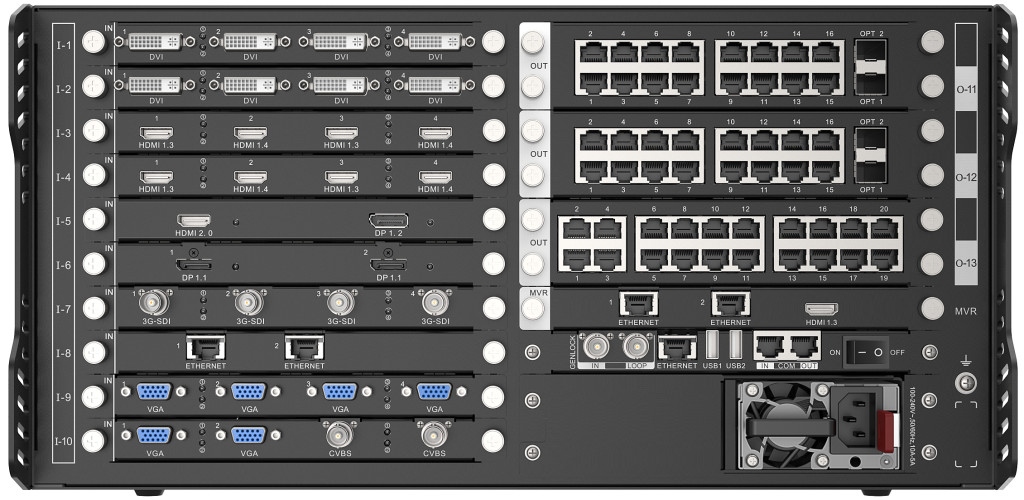

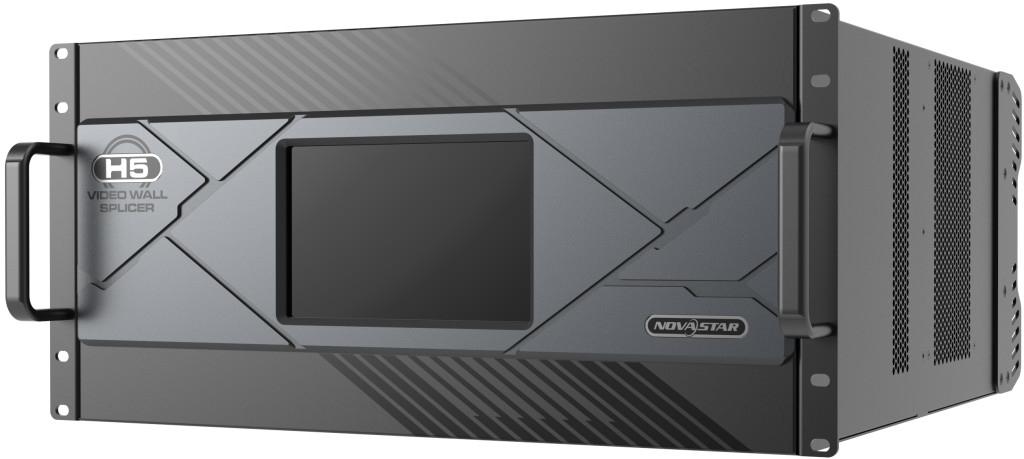

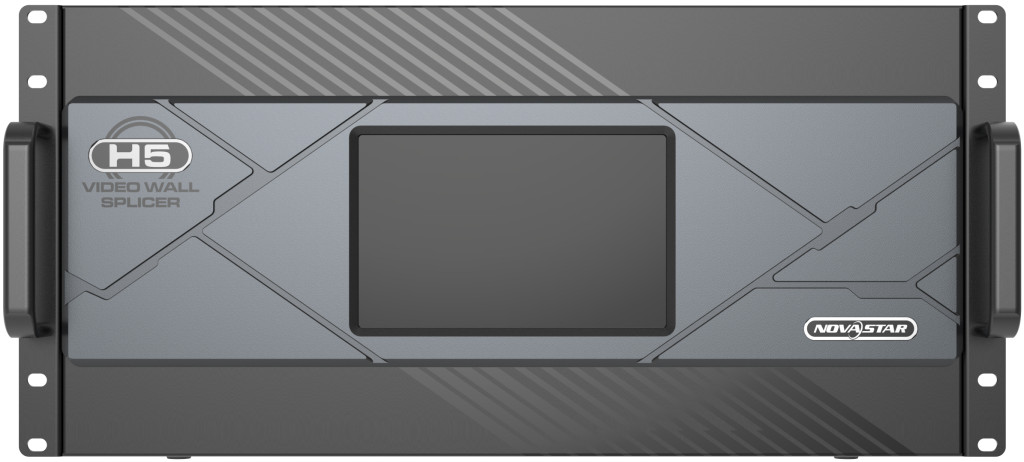

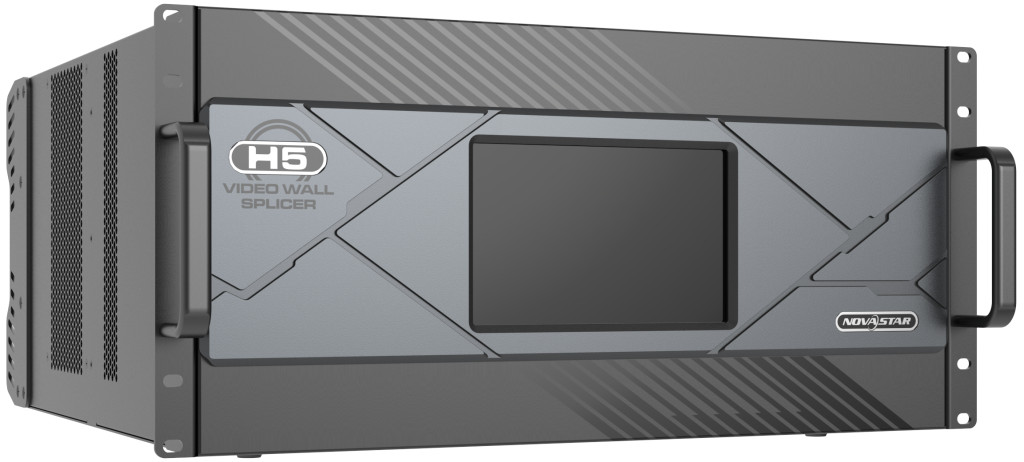

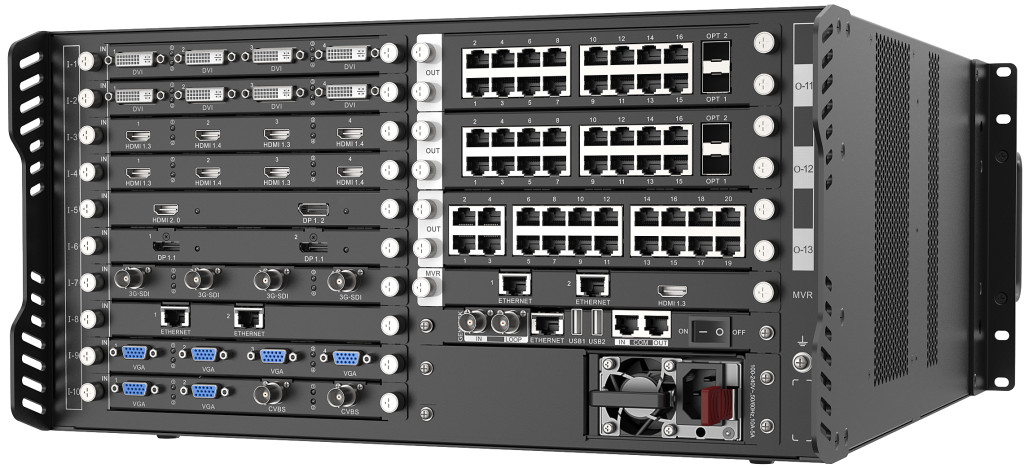

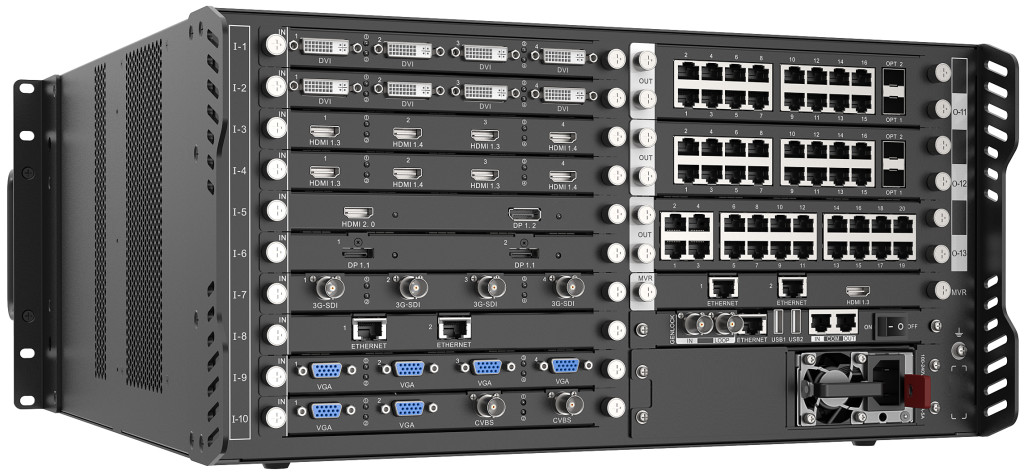

The H5 is NovaStar’s newest generation of video wall splicer, featuring excellent image quality and designed
especially for fine-pitch LED screens. The H5 can work as splicing processors that integrate both video processing
and video control capabilities, or work as pure splicing processors. The whole unit adopts a modular and plug-in
design, and allows for flexible configuration and hot swapping of input and output cards.

H5 Master
H5 Master
H5 Master
H5 Master
H5 Master
H5 Master
1
6
Details
Rack Unit: 5U
Max. Loading Capacity (H_20xRJ45 sending card): 39 million pixels
Max. Loading Capacity (H_4xfiber sending card): 62.4 million pixels
Max.Output:
                  Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector)
                  Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port)
                  Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
Max. Input Cards: 10
Max. Output Cards: 3
Irregular Mosaic: Yes
Max. Layers: 16 layers per card
Max Presets: 2000(Preset Playlist playback supported)
Permission Management: Yes
10bit and HDR: Yes
Input and Output Monitoring (H_2xRJ45+1xHDMI1.3 preview card required): Yes
Optional Power Supply: Yes
Central Control: TCP/IP and RS232

Specifications
User Manual
Rerelase Notes
Quick Start Guide

Data
Crowd:
17 kg/db
