H9 Enhanced Master
Cikkszám:
M04020049

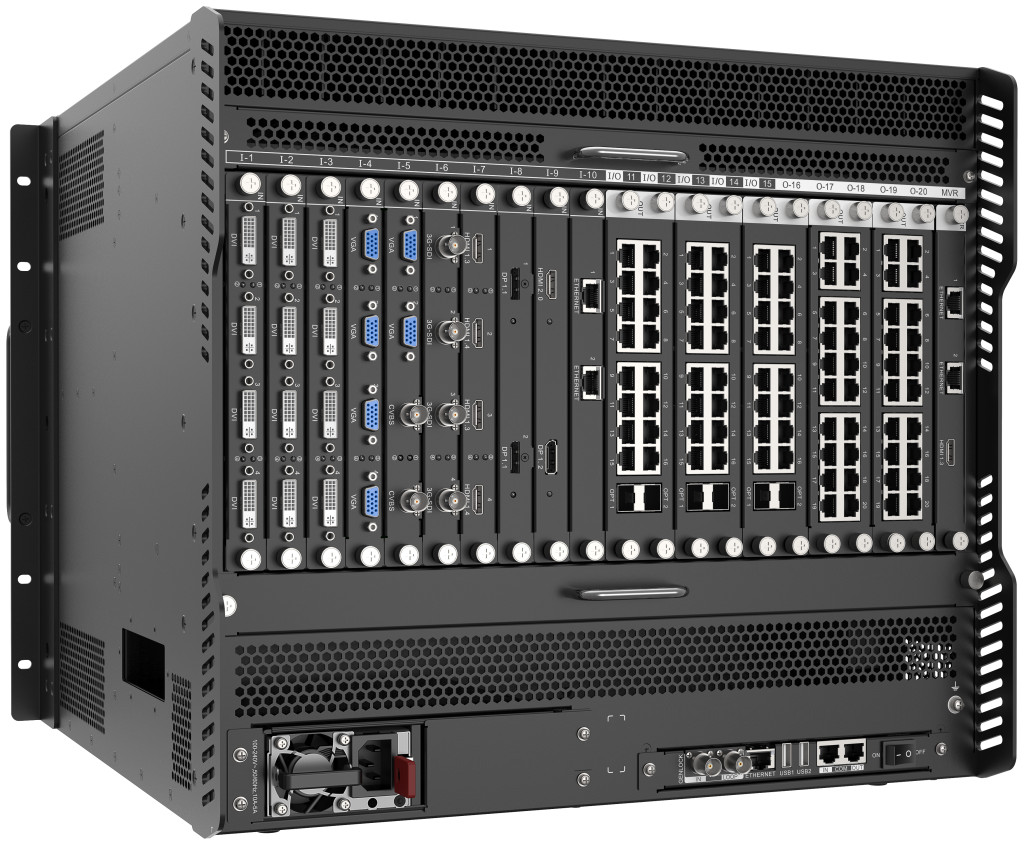

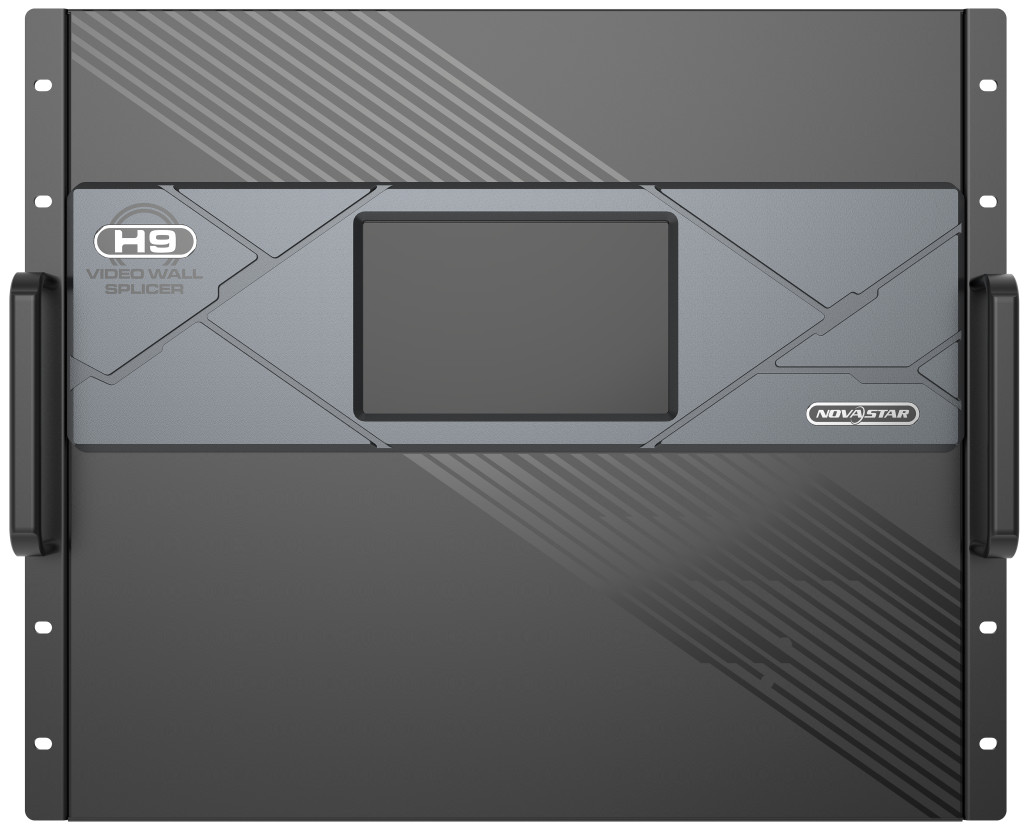

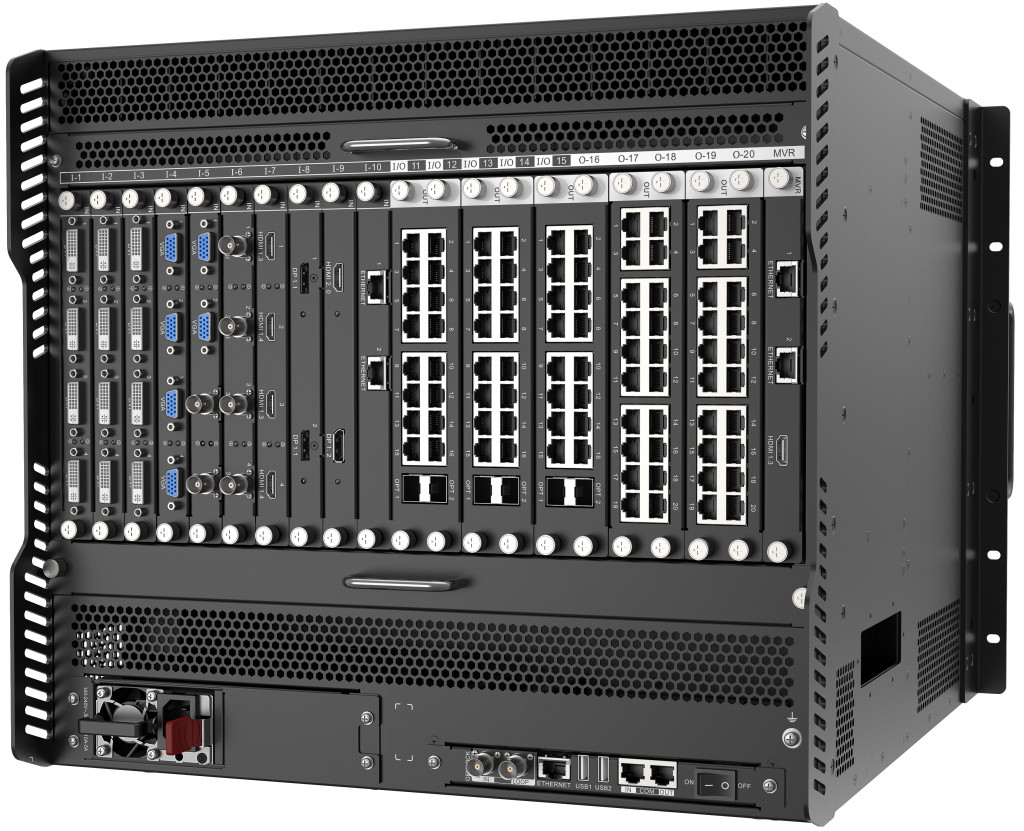

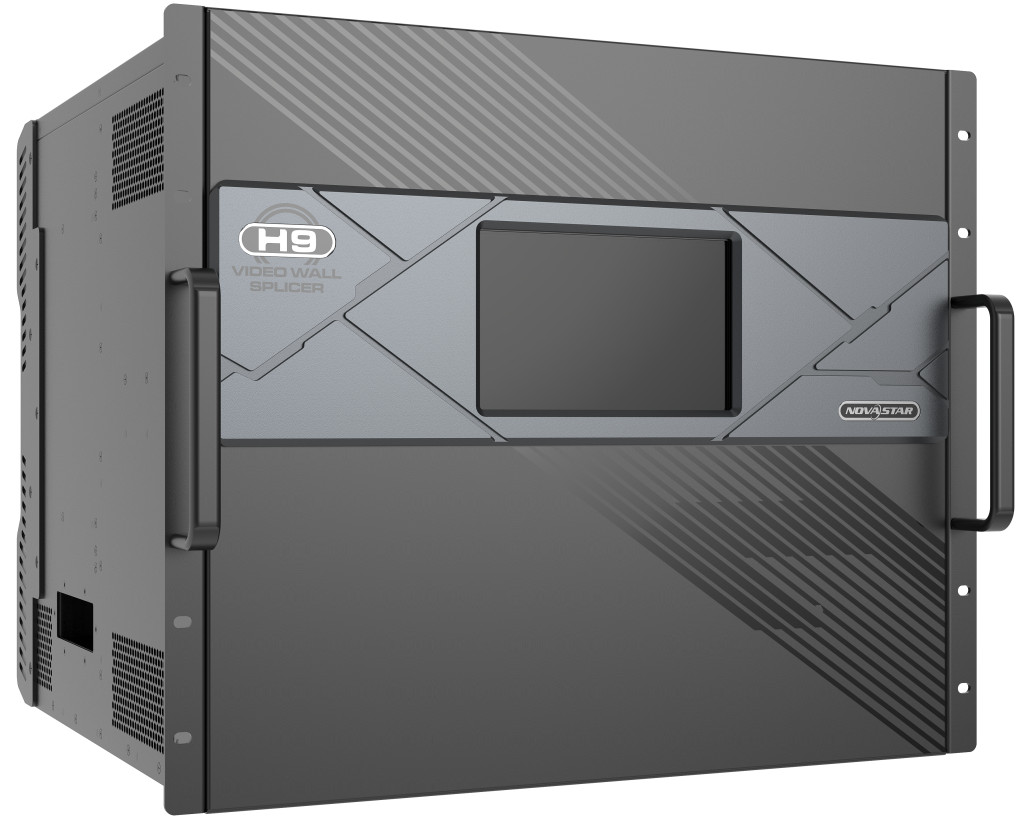

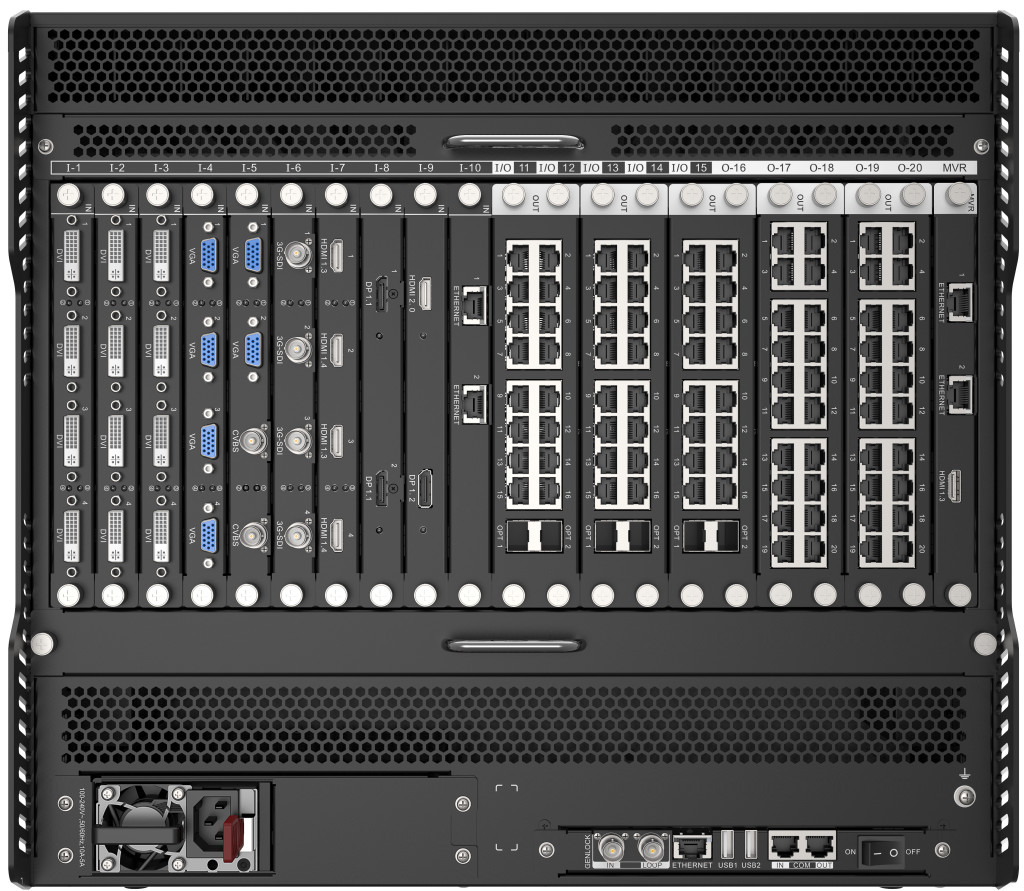

The H9 is NovaStar’s newest generation of video wall splicer, featuring excellent image quality and designed
especially for fine-pitch LED screens. The H9 can work as splicing processors that integrate both video processing
and video control capabilities, or work as pure splicing processors. The whole unit adopts a modular and plug-in
design, and allows for flexible configuration and hot swapping of input and output cards.

H9 Enhanced Master
H9 Enhanced Master
H9 Enhanced Master
H9 Enhanced Master
H9 Enhanced Master
H9 Enhanced Master
1
6
Details
Rack Unit: 9U
Max. Loading Capacity (H_20xRJ45 sending card): 65 million pixels
Max. Loading Capacity (H_4xfiber sending card): 208 million pixels
Max.Output:
                  Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector)
                  Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port)
                  Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
Max. Input Cards: 15
Max. Output Cards: 10
Irregular Mosaic: Yes
Max. Layers: 16 layers per card
Max Presets: 2000(Preset Playlist playback supported)
Permission Management: Yes
10bit and HDR: Yes
Input and Output Monitoring (H_2xRJ45+1xHDMI1.3 preview card required): Yes
Optional Power Supply: Yes
Central Control: TCP/IP and RS232


Specifications
User Manual
Rerelase Notes
Quick Start Guide

Data
Crowd:
27,2 kg/db
