MBOX600 Pro(9U8A4)[WIN10]

Cikkszám:
M06030021

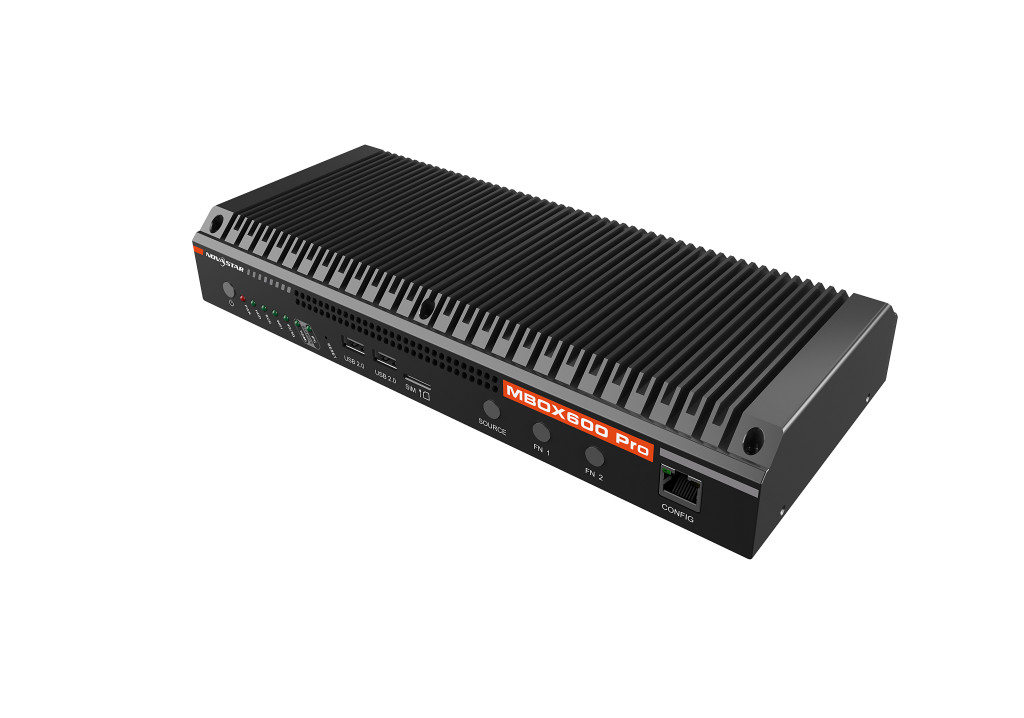

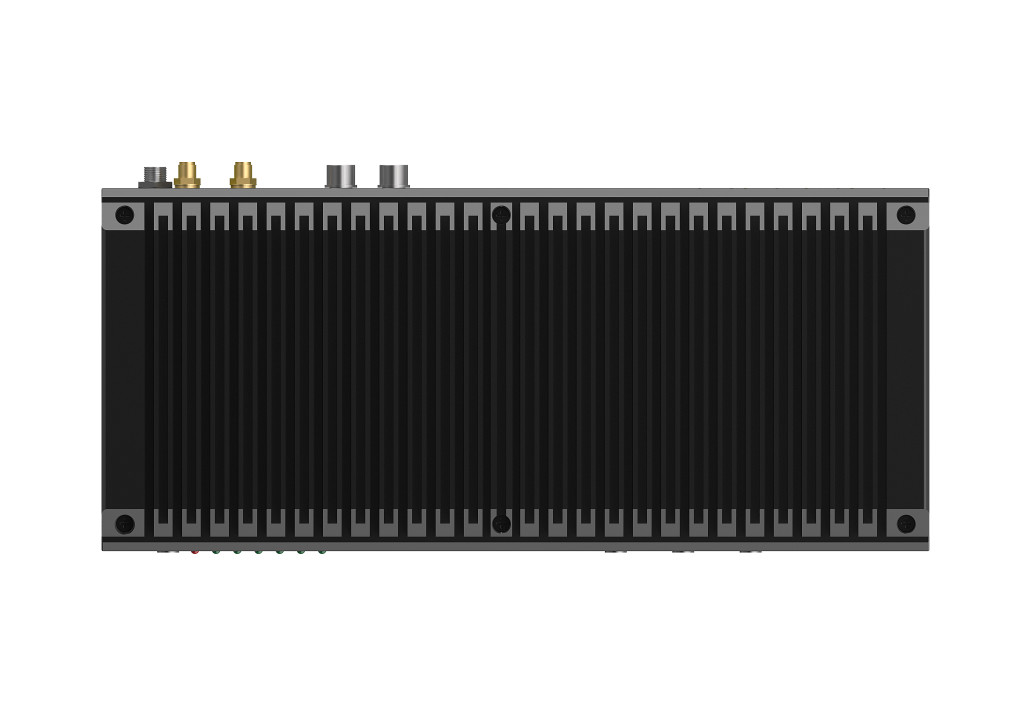

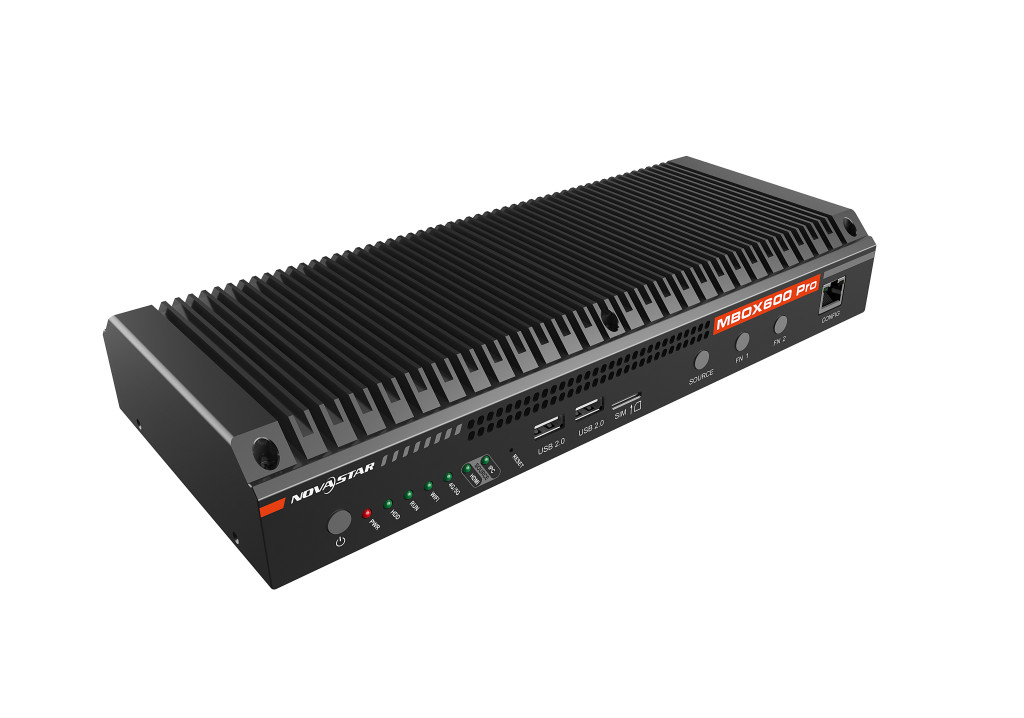

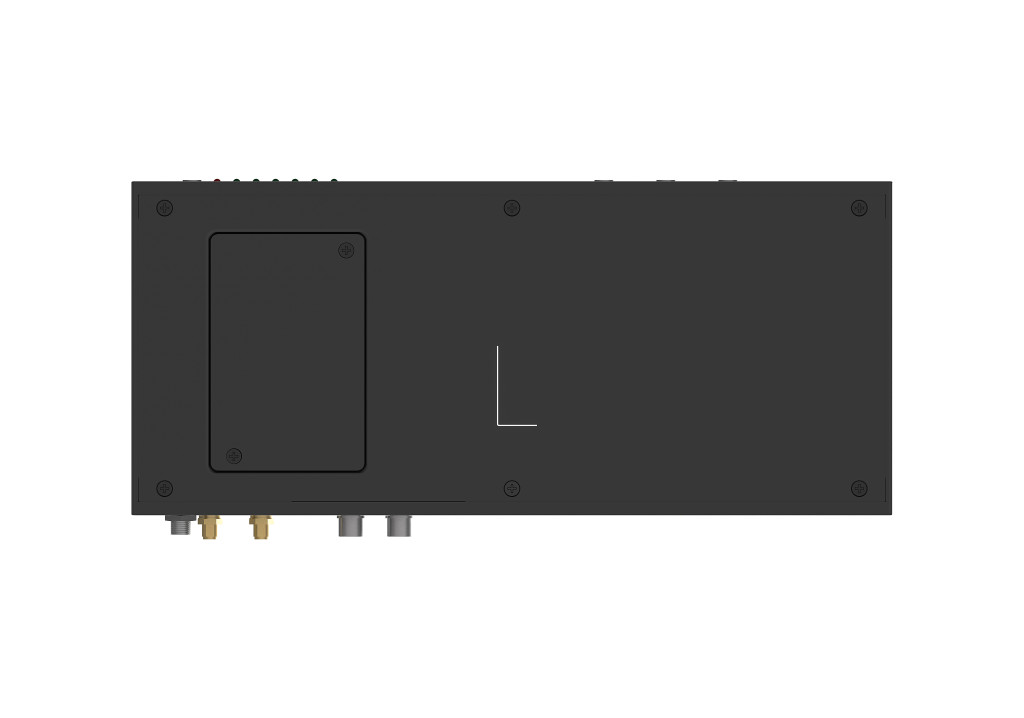

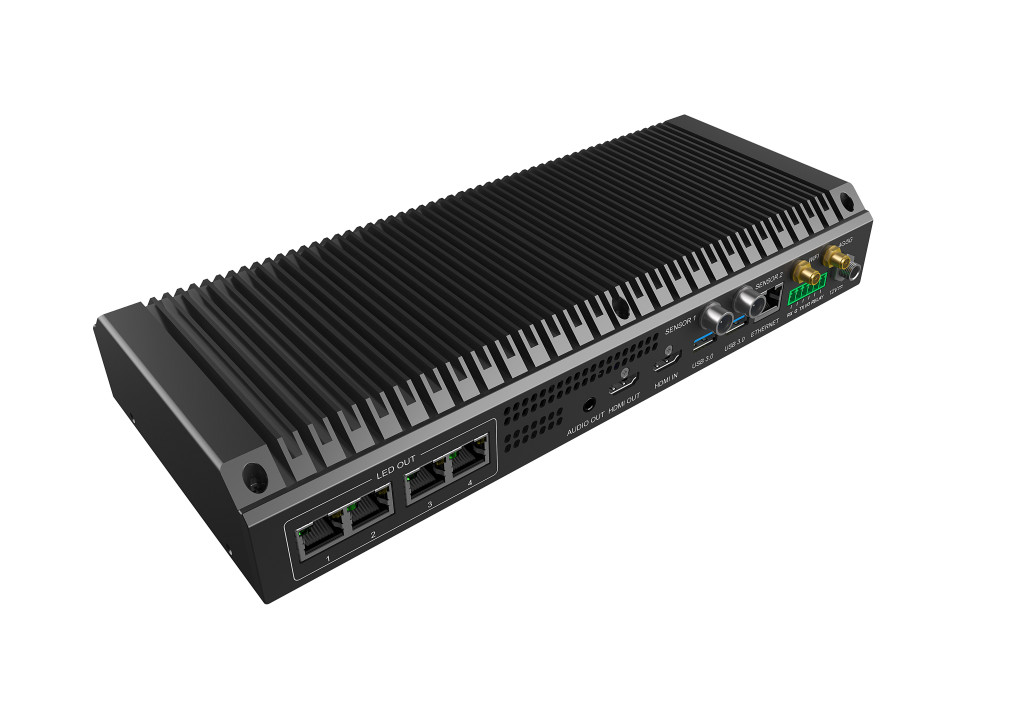

The MBOX600 Pro is an LED display controller created by NovaStar. It integrates an industrial PC and the sending
capability. This controller is capable of monitoring and managing the SNMP system, offering professional system
monitoring and operation management services for specialized advertising media display users.

MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
MBOX600 Pro(9U8A4)[WIN10]
1
10
Details

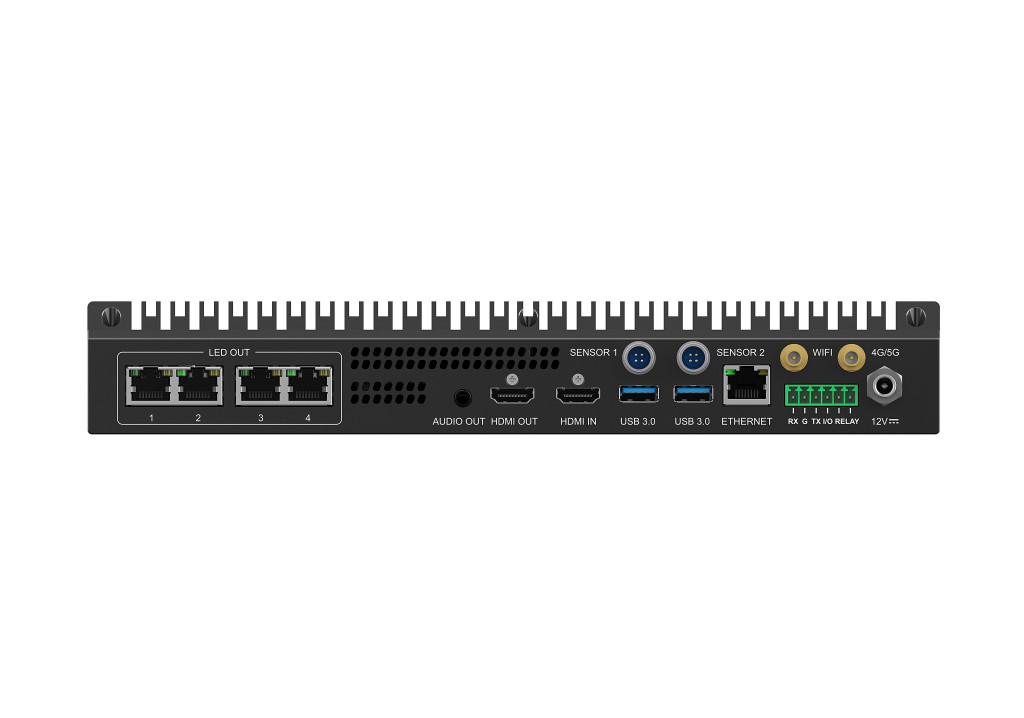

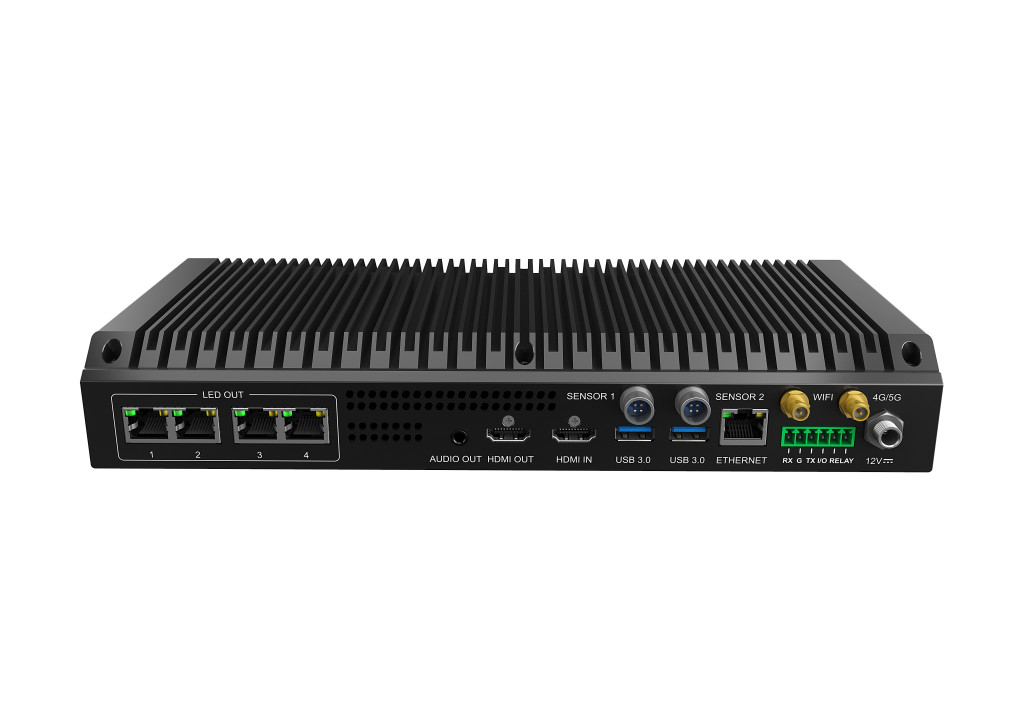

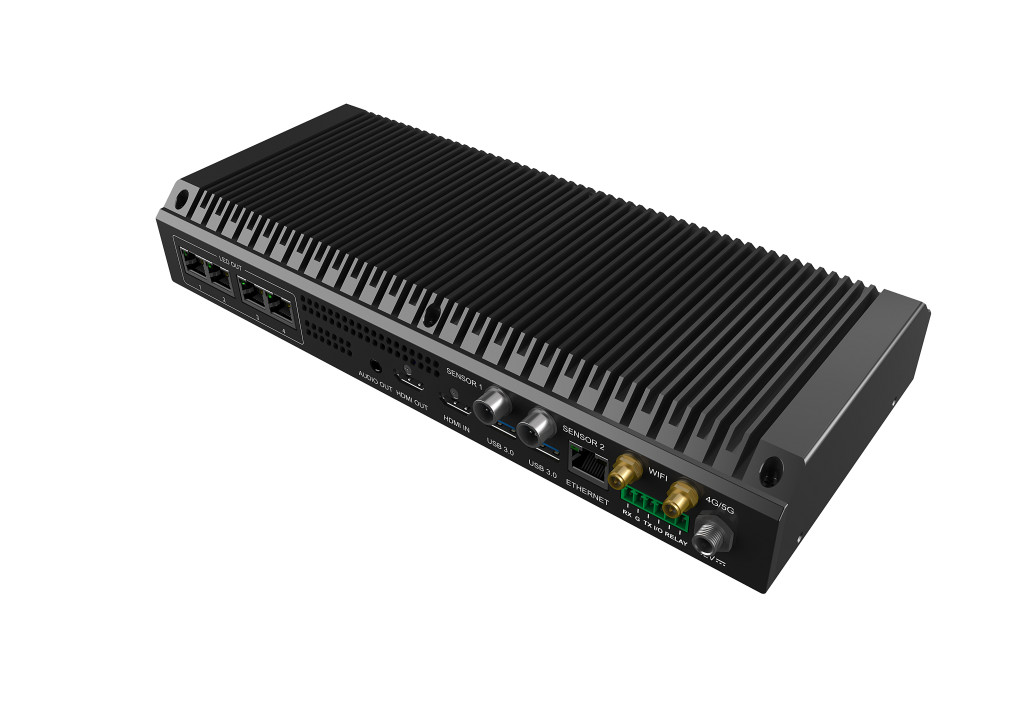

Input Output
 4x Gigabit Ethernet outputs and pixel capacity up to 2,600,000
 1x HDMI 1.3 output
 1x HDMI 1.3 input
 Output scaling
 − The pixel width ranges from 64 to 4096.
 − The pixel height ranges from 64 to 1920.
 − Total pixel capacity cannot exceed 2,600,000.
 Common resolutions supported: 1366×768, 1440×900, 1600×900, 1920×1080, 2048×1152		  1x Stereo audio output
 2x Sensor connectors allowing light sensors to be connected
 - System Features
 - Powerful processing capacity
 Intel® Processor N97, 4 cores and 4 threads, maximum turbo frequency: 3.6 GHz
 RAM: 4 GB/8 GB
 SSD: 128 GB/256 GB

Control:

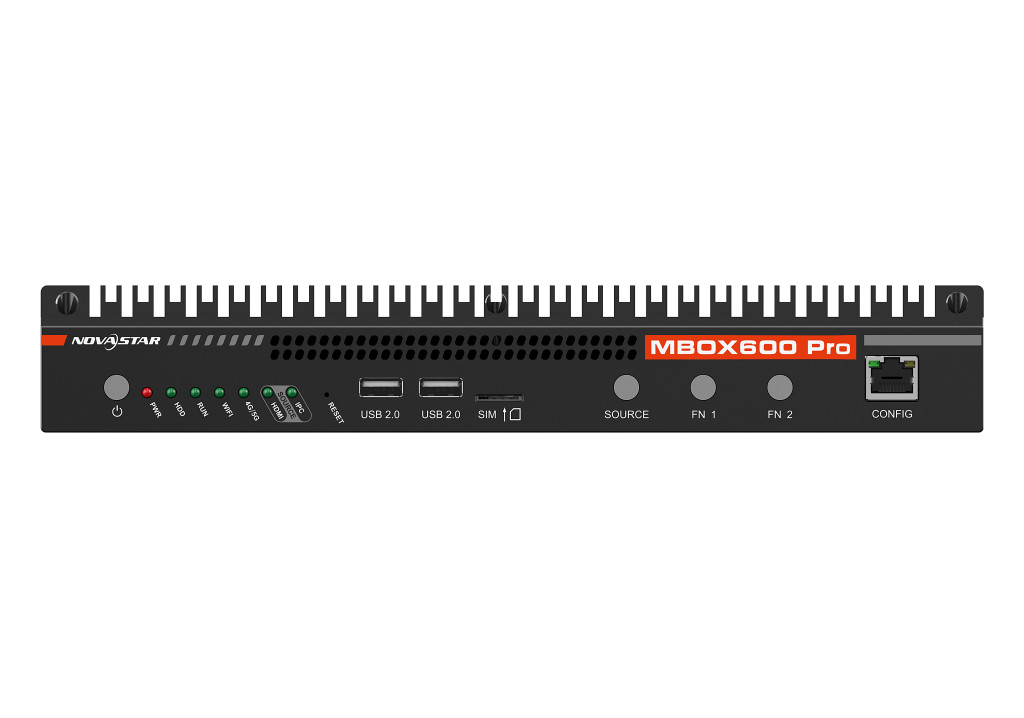

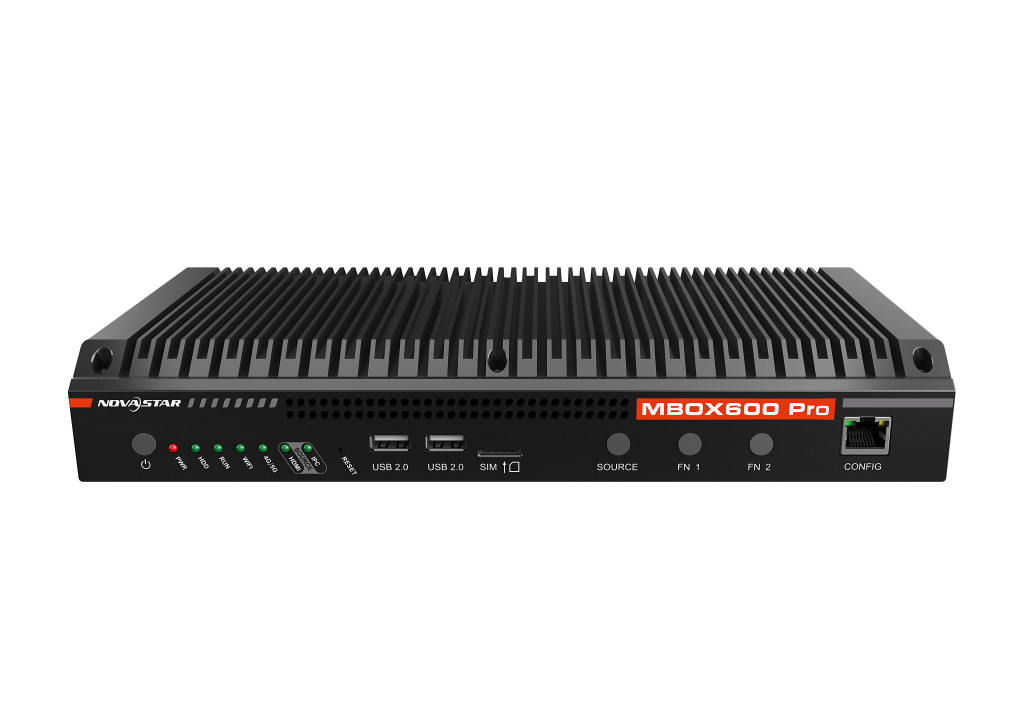

 2x USB 2.0 ports and 2x USB 3.0 ports connecting to peripherals such as a mouse, keyboard and USB drive
 2x Gigabit Ethernet ports
− TCP/IP supported
− One for communication and the other for remote management of device networking
 Support for 4G/5G modules
 - The MBOX600 Pro ships without a 4G/5G module. Users have to purchase 4G/5G modules separately if
   needed.
 Support for Wi-Fi networks
 - The MBOX600 Pro can access the Internet by connecting to a Wi-Fi network.

Specifications
Rerelase Notes
User Manual


Data
Crowd:
1,778 kg/db
