MRV208-N
Cikkszám:
M01010639

The MRV208-N is a general receiving card developed by NovaStar Tech Co., Ltd. (hereinafter
referred to as NovaStar). Supporting various functions such as Color Management, 18bit+, Pixel
Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch
Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation,
the MRV208-N can significantly improve the display effect and user experience.

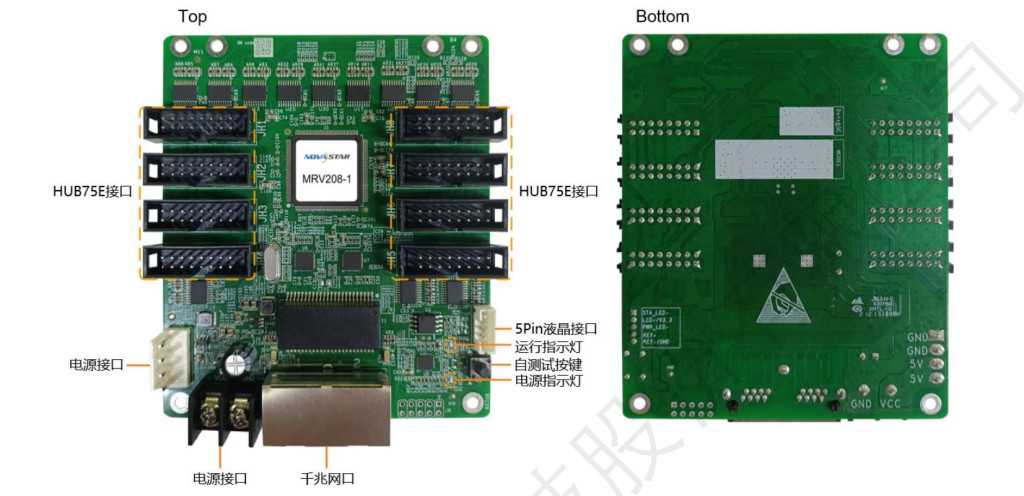

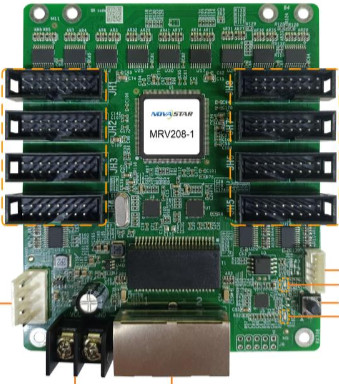

The MRV208-N uses 8 standard HUB75E connectors for high stability communication and
supports up to 16 groups of parallel RGB data.


 For PWM driver ICs, the maximum load capacity per board when used with M3 controllers is:
− 512×512@60Hz (For 8bit video sources)
− 512×256@60Hz (For 10bit video sources)


 For common driver ICs, the maximum load capacity per board when used with M3 controllers
is:
− 512×384@60Hz (For 8bit video sources)
− 512×192@60Hz (For 10bit video sources)

MRV208-N
MRV208-N
MRV208-N
1
3
Details
Improvements to Display Effect:
 Color Management
   Support standard (Rec.709 / DCI-P3 / Rec.2020) and custom color gamuts, enabling more
   precise colors on the screen.
 18bit+
   Improve the LED display grayscale by 4 times to avoid grayscale loss due to low brightness
   and allow for a smoother image.
 Pixel Level Brightness and Chroma Calibration
   Work with NovaStar's calibration system to calibrate the brightness and chroma of each
   pixel, effectively eliminating differences and enabling high consistency for both brightness
   and chroma.
 Quick Adjustment of Dark or Bright Lines
   The different brightness of seams caused by splicing of modules or cabinets can be
   corrected to improve the visual experience. The correction is easy and takes effect
   immediately.
 Multi-batch Adjustment
   Adjust the brightness of cabinets or modules to minimize display discrepancies caused by
   variations in production batches.
 Low Latency
   The latency of video source on the receiving card end can be reduced to 1 frame (only when
   using modules with driver IC with built-in RAM).
 3D
   Work with the controller that supports 3D function to enable 3D output.
 Individual Gamma Adjustment for RGB
   Working with NovaLCT and the controller that supports this function, the receiving card
   supports individual adjustment to red gamma, green gamma and blue gamma, which can
   effectively control image non-uniformity at low grayscale conditions and white balance
   offset, allowing for a more realistic image.
 90° Image Rotation
   The display image can be rotated in multiples of 90° (0°/90°/180°/270°).

Specifications
Rerelase Notes

Data
Crowd:
70,2 g/db
