MRV266
Cikkszám:
M01010352

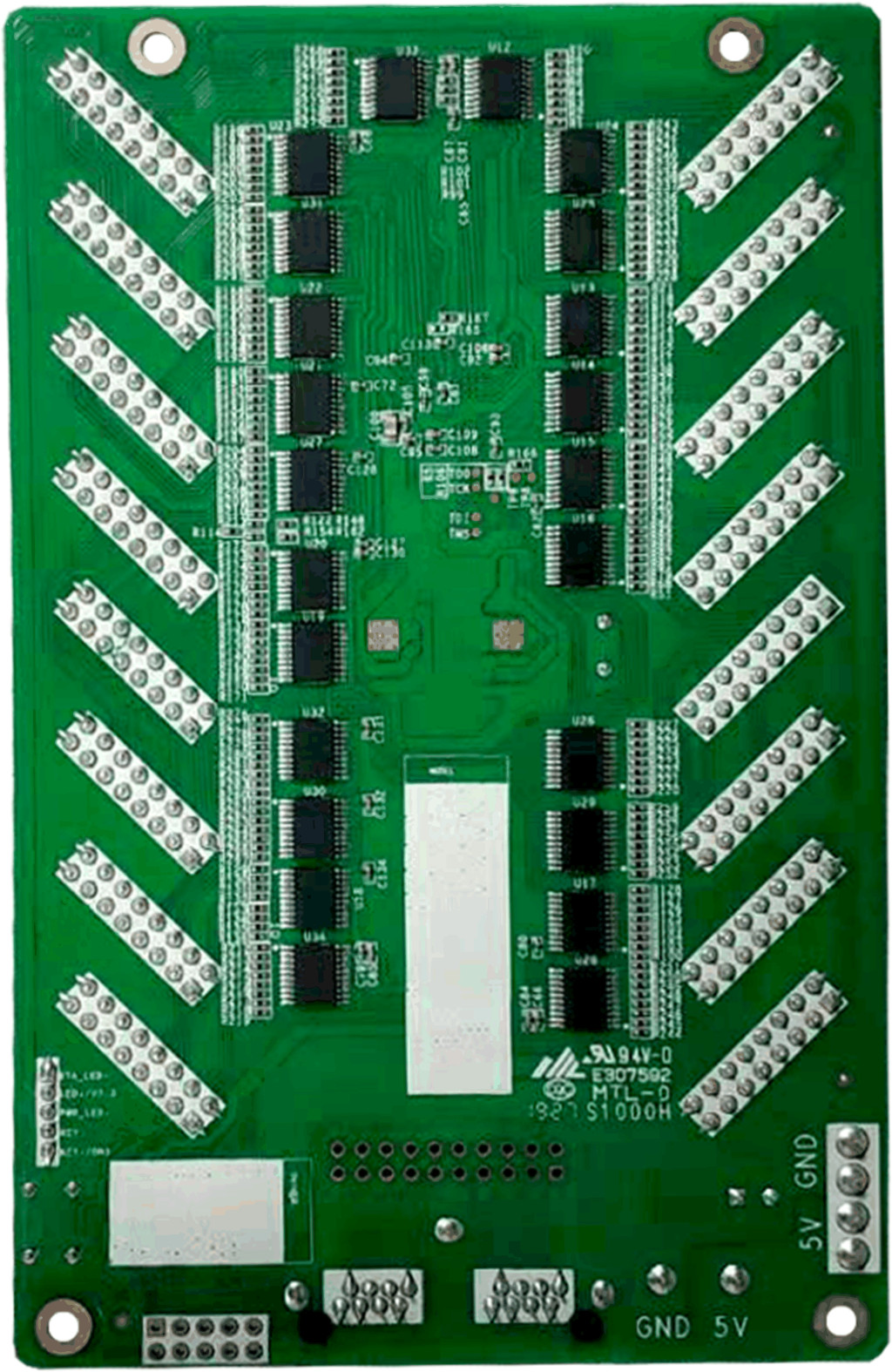

The MRV266 is a receiving card developed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar) for
fine-pitch LED screens. For PWM driver ICs, a single MRV266 supports resolutions up to 512×384@60Hz.
Supporting various functions such as the brightness calibration, quick adjustment of dark or bright lines, 3D, and
individual gamma adjustment for RGB, the MRV266 can significantly improve the display effect and user experience.

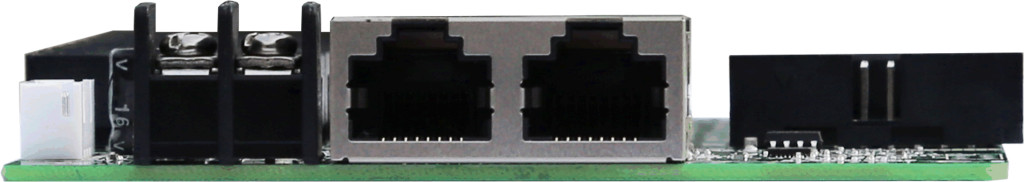

The MRV266 uses 6 HUB320 (26 pins) connectors for communication, resulting in high stability. It supports up to 24
groups of parallel RGB data and is suitable for various on-site setups.
1
3
Details
Improvements to Display Effect:
Brightness calibration
Work with NovaStar’s high-precision calibration
system to calibrate the brightness of each pixel,
effectively removing brightness differences and
enabling high brightness consistency.
Brightness calibration
Work with NovaStar’s high-precision calibration
system to calibrate the brightness of each pixel,
effectively removing brightness differences and
enabling high brightness consistency.
3D function
Working with the sending card that supports 3D
function, the receiving card supports 3D image
output.
Working with the sending card that supports 3D
function, the receiving card supports 3D image
output.
Quick adjustment of dark or bright lines
The dark or bright lines caused by splicing of
modules and cabinets can be adjusted to
improve the visual experience. The adjustment
can be easily made and takes effect immediately.
The dark or bright lines caused by splicing of
modules and cabinets can be adjusted to
improve the visual experience. The adjustment
can be easily made and takes effect immediately.
Individual gamma adjustment for RGB
Working with NovaLCT (V5.2.0 or later) and the
sending card that supports this function, the
receiving card supports individual adjustment of
red gamma, green gamma and blue gamma,
which can effectively control image nonuniformity under low grayscale and white
balance offset, allowing for a more realistic
image.
Working with NovaLCT (V5.2.0 or later) and the
sending card that supports this function, the
receiving card supports individual adjustment of
red gamma, green gamma and blue gamma,
which can effectively control image nonuniformity under low grayscale and white
balance offset, allowing for a more realistic
image.
Data
Crowd:
68 g/db
