MRV570-1

Name: MRV570-1
SKU: M01010506

Cikkszám:

M01010506

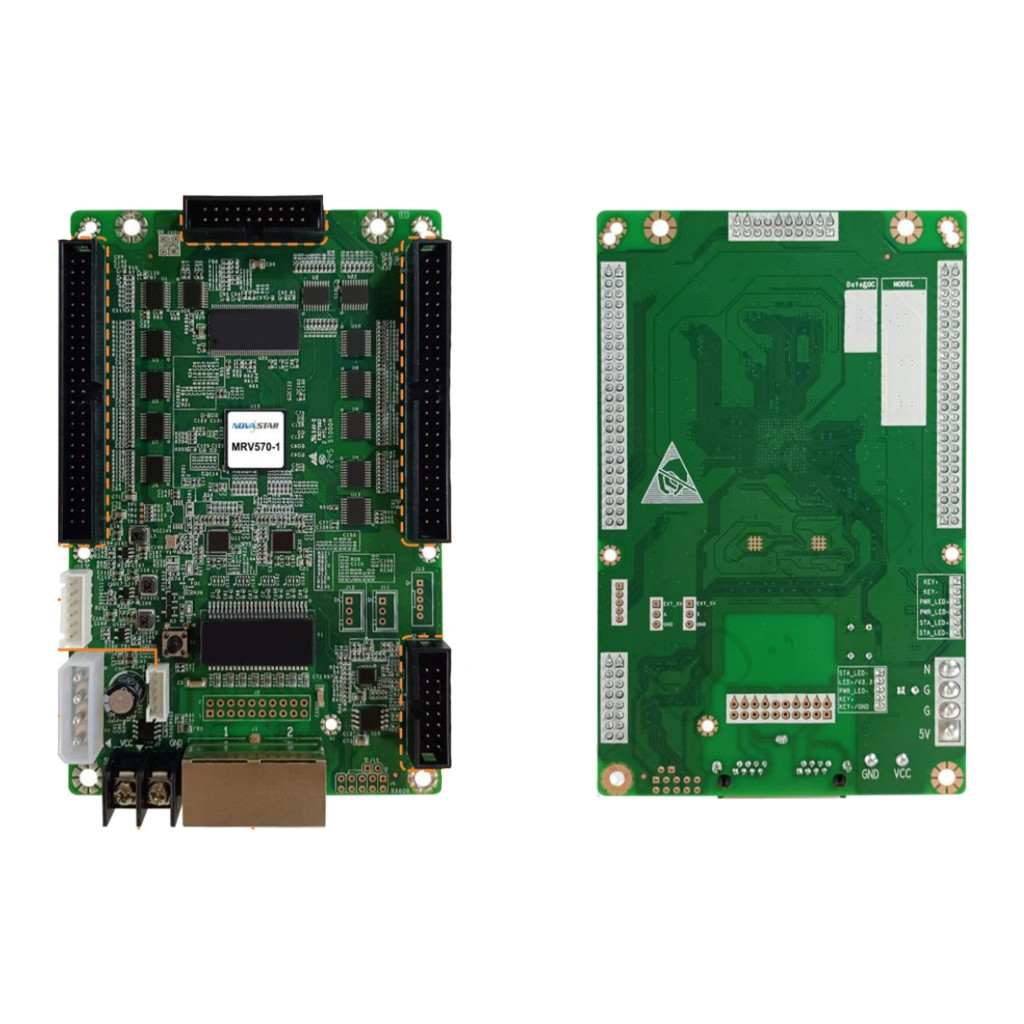

The MRV570-1 is a general receiving card developed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as
NovaStar). A single MRV570-1 supports resolutions up to 512×256@60Hz. Supporting various functions such as
pixel level brightness and chroma calibration, the MRV570-1 can significantly improve the display effect and user
experience.

The MRV570-1 uses hub connectors for communication, resulting in high stability. It supports up to 20 groups of
parallel RGB data or 64 groups of serial data. Thanks to its EMC Class B compliant hardware design, the MRV570-1
has improved electromagnetic compatibility and is suitable for various on-site setups.

Details

Features:
 Module Flash management to store calibration coefficients and module information
 Pixel level brightness and chroma calibration
 Support for setting of a stored image in the receiving card
 Configuration parameter readback
 Temperature monitoring
 Ethernet cable communication status monitoring
 Power supply voltage monitoring
 Support for connection of a monitoring card

Specifications
