MSD600-1

Cikkszám:
M02020153

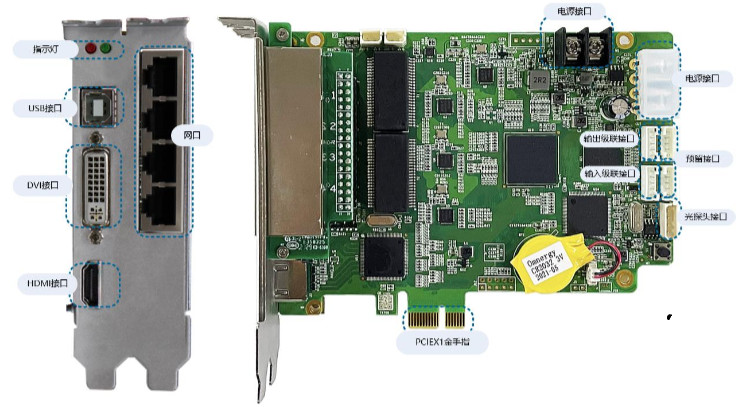

The MSD600 is a sending card developed by NovaStar. It supports 1x DVI input, 1x HDMI input, 1x audio input, and
4x Ethernet outputs. A single MSD600 supports input resolutions up to 1920×1200@60Hz.
The MSD600 communicates with PC via type-B USB port. Multiple MSD600 units can be cascaded via UART port.

MSD600-1
Details
Input Output
 3 types of input connectors
− 1x SL-DVI
− 1x HDMI 1.3
− 1x AUDIO
  4x Gigabit Ethernet outputs
 1x light sensor connector
 1x type-B USB control port
 2x UART control ports


They are used for device cascading. Up to 20
devices can be cascaded.
 Pixel level brightness and chroma calibration
Work with NovaStar’s high-precision calibration
system to calibrate the brightness and chroma of
each pixel, effectively removing brightness
differences and chroma differences, and
enabling high brightness consistency and
chroma consistency

Specifications

Data
Crowd:
125,3 g/db
