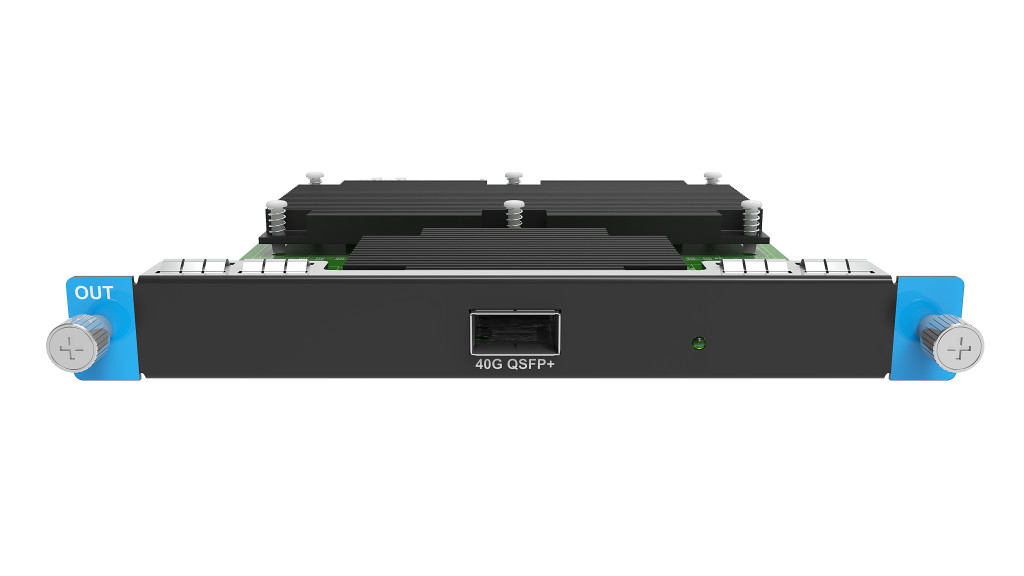

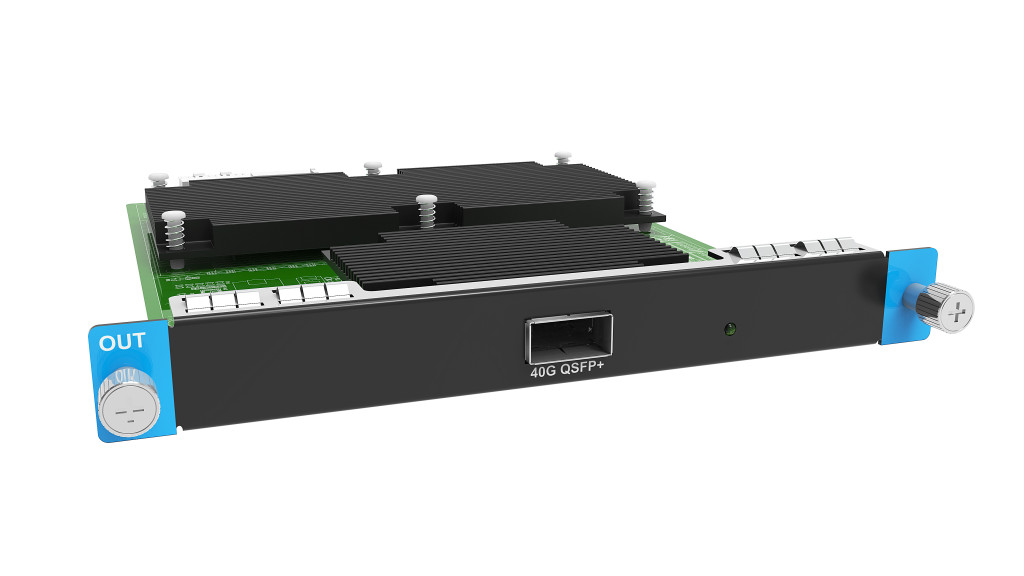

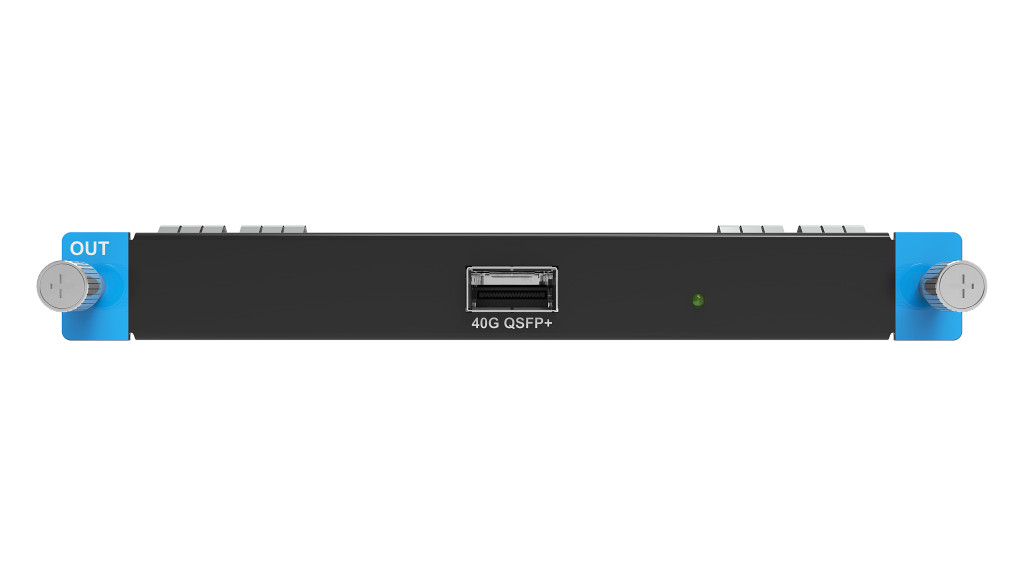

Type: 40G QSFP+
Qty: 4
Descriptioin:
40G optical port
Support single-mode and multi-mode optical fiber modules, with a
maximum transmission distance of 10km.
A single optical port has the same load capacity of 8x 5G Ethernet ports.
The maximum load of a single 5G Ethernet port is as follows. Please refer to
Ethernet Port Load Capacity for more details:
− 8bit@60Hz: 2,951,200 pixels
− 10bit@60Hz: 2,213,200 pixels
− 12bit@60Hz: 1,475,600 pixels
Maximum load of a single output card: 17,694,720 pixels (8/10/12bit@60Hz).
