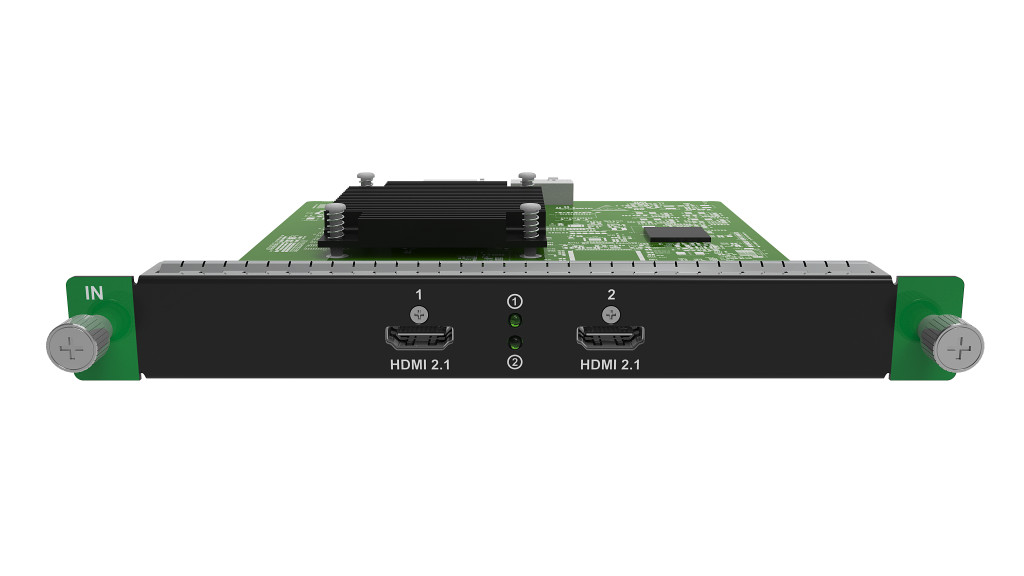

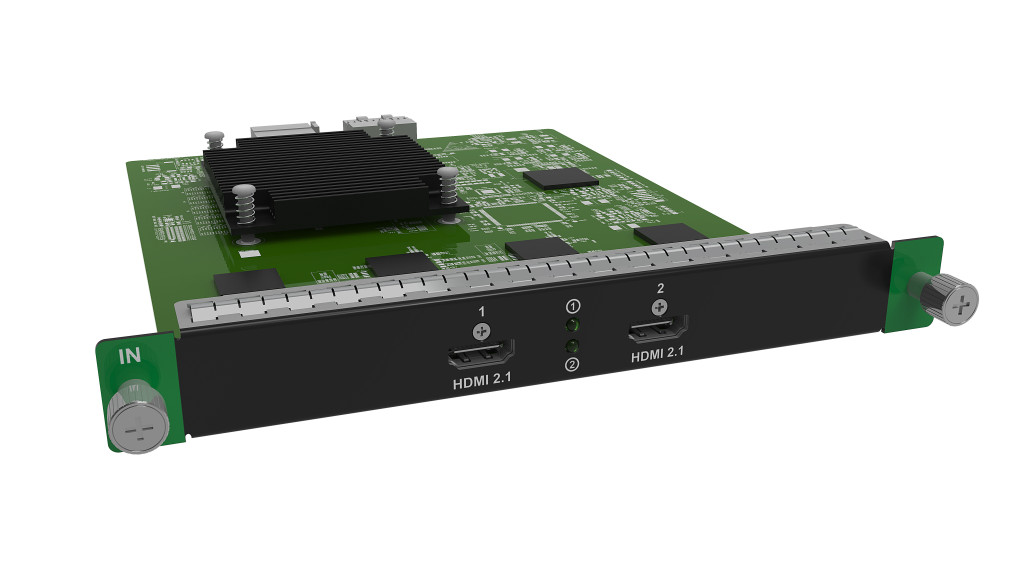

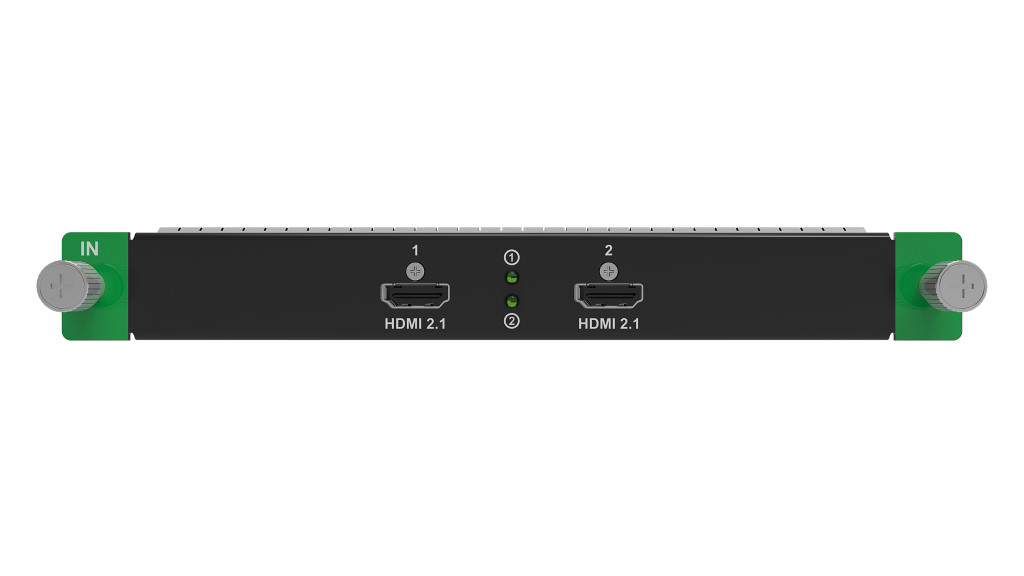

MX_2xHDMI2.1 input card
Cikkszám:
M09090031

Input card for the MX2000Pro és MX6000Pro.

Details

Type: HDMI 2.1

Qty: 2

Descriptioin:

- Max resolution: 8192×4320@30Hz (Forced)

Min resolution: 800×600@60Hz

- Max width: 8192 pixels (8192×4320@30Hz)

- Max height: 8192 pixels (4320×8192@30Hz)

- Frame rate: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz

- HDR: Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.

  Support HLG.

- EDID management: Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.

- HDCP: HDCP 2.3 compliant, backwards compatible with HDCP 2.2/HDCP 1.4/HDCP 1.3.

- Interlaced signal inputs: Not supported.

- Cables: Recommend using the UGREEN HDMI 2.1 cable. Cables up to 5 meters are supported.
