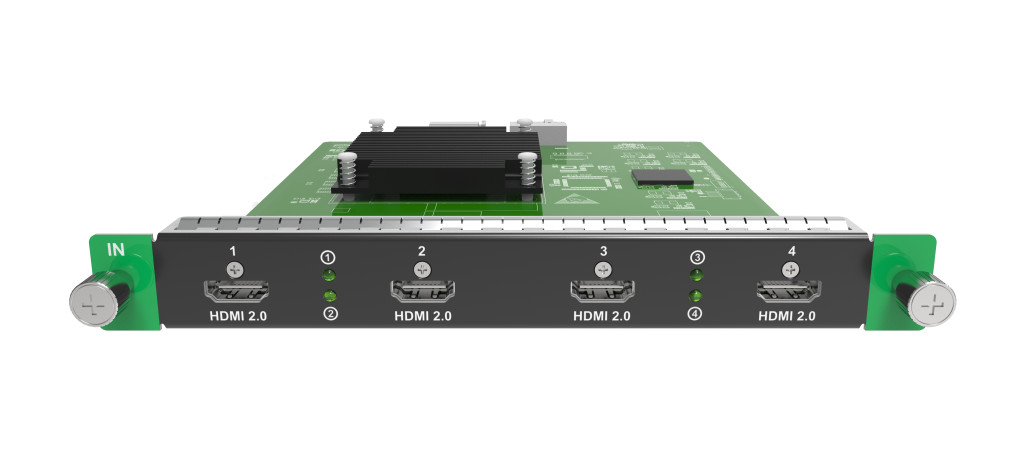

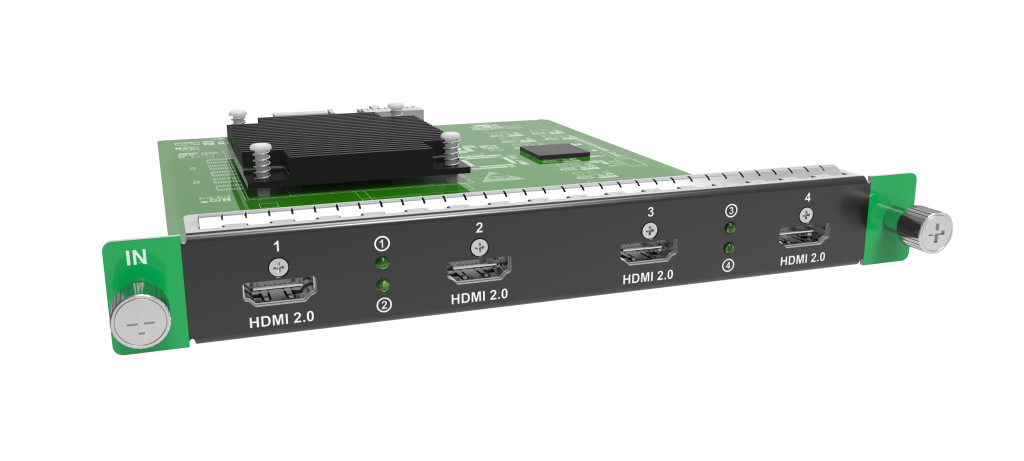

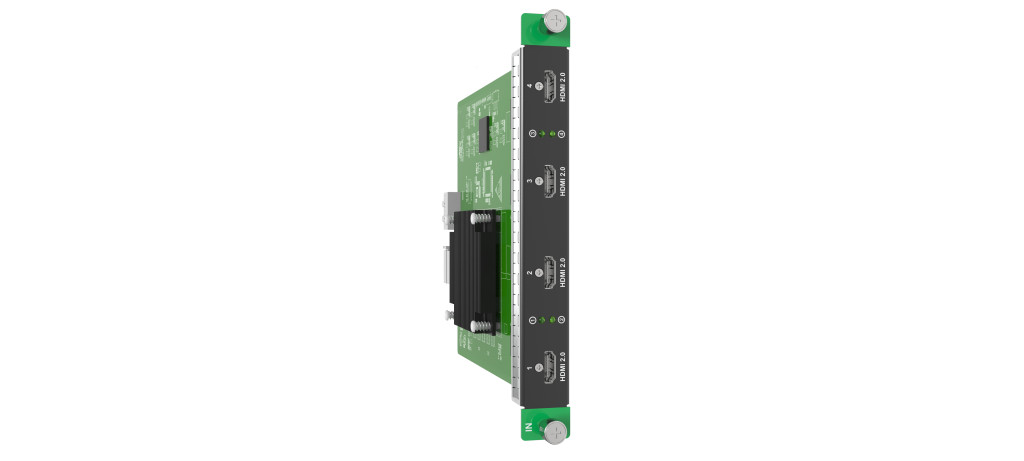

MX_4xHDMI2.0 input card
Cikkszám:
M09100147

 Input Card for the  MX2000Pro and MX6000Pro.

Details

Type: HDMI 2.0

Qty: 4

Descriptioin:

- Resolution: Max resolution: 4096×2160@60Hz or 8192×1080@60Hz
(Forced)

Min resolution: 800×600@60Hz

- Max width: Max width: 8192 pixels (8192×1080@60Hz)

- Max height: Max height: 7680 pixels (1080×7680@60Hz)

- Frame rate: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 /71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz

- HDR: Support HDR10 and comply with the SMPTE ST 2084 and
  SMPTE ST 2086 standards.
  Support HLG.

- EDID management: Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.

- HDCP: HDCP 2.2 compliant, backwards compatible with HDCP
  1.4/HDCP 1.3.

- Interlaced signal inputs: Not supported.

- Cables: Recommend using the UGREEN HDMI 2.1 cable. Cables up to
  5 meters are supported.
