MX20
Cikkszám:
M02030038

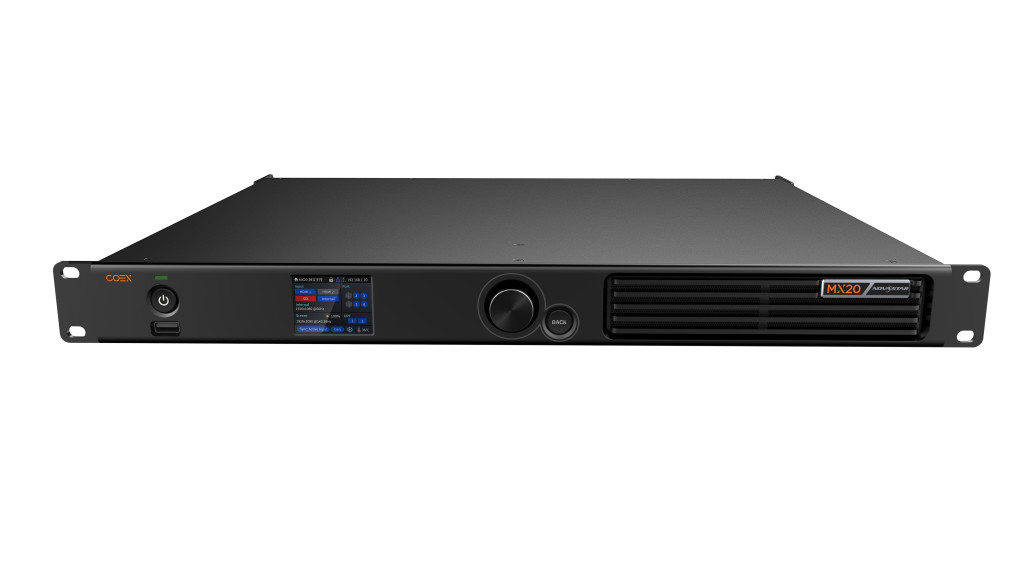

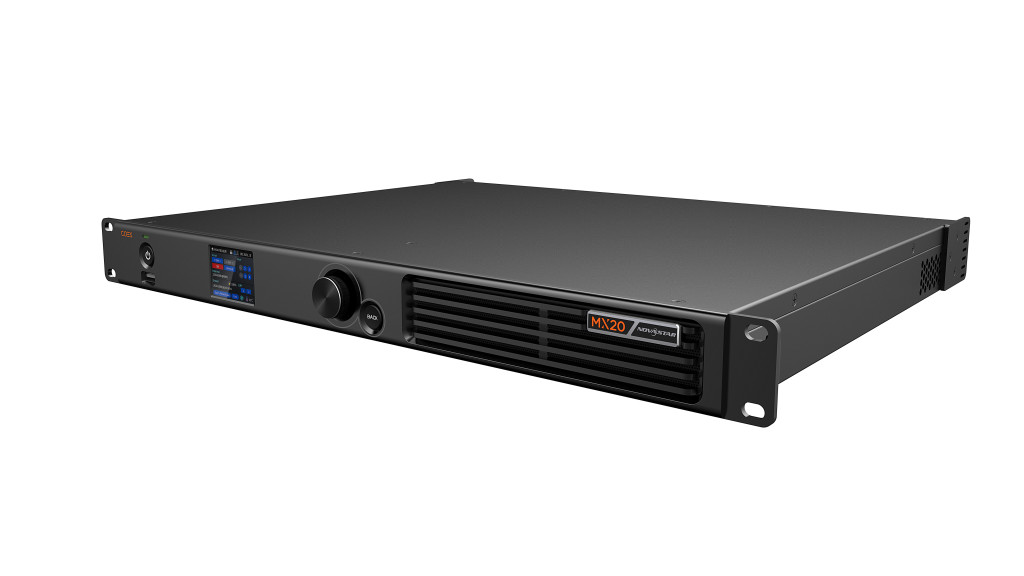

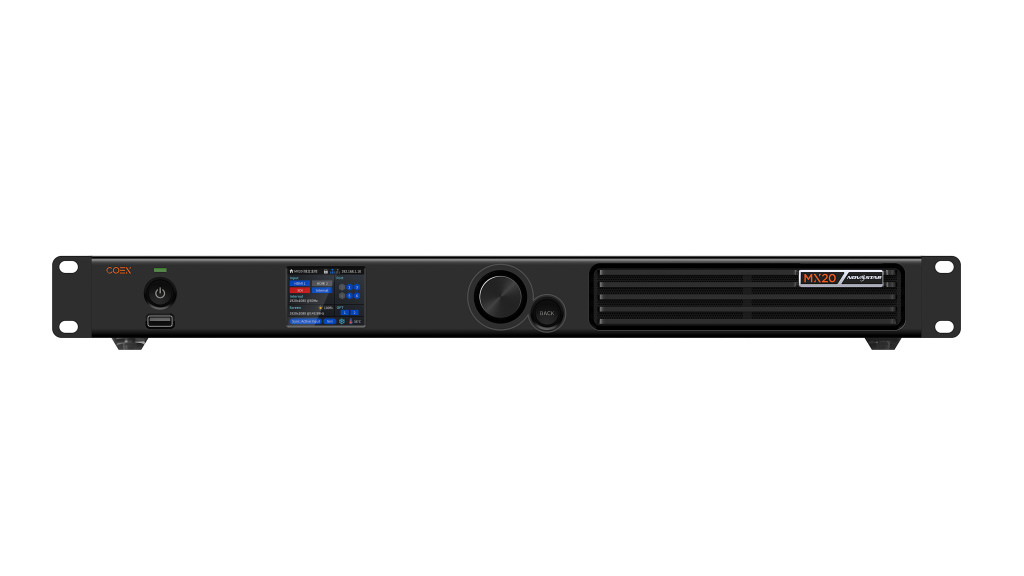

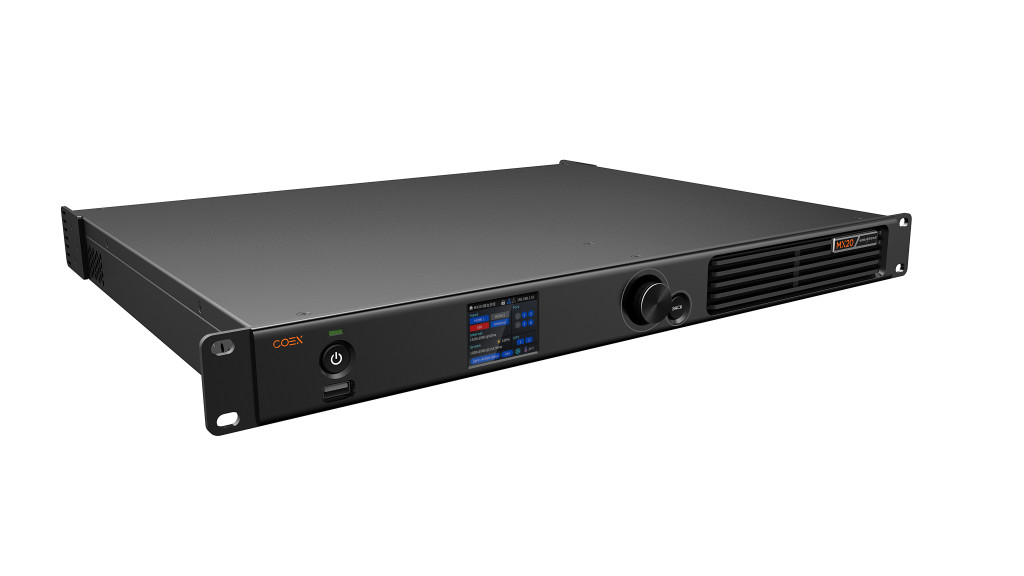

The MX20 is an all-in-one LED display controller in the brand-new control system COEX series of Xi'an NovaStar
Tech Co., Ltd. (hereinafter referred to as NovaStar). This controller integrates video processing and video control into
one box and offers 2x HDMI 1.3, 1x 3G-SDI input connectors, 6x Ethernet output ports, and 2x 10G optical ports. It
can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and
control experience.

MX20
MX20
MX20
MX20
MX20
MX20
MX20
MX20
1
8
Details

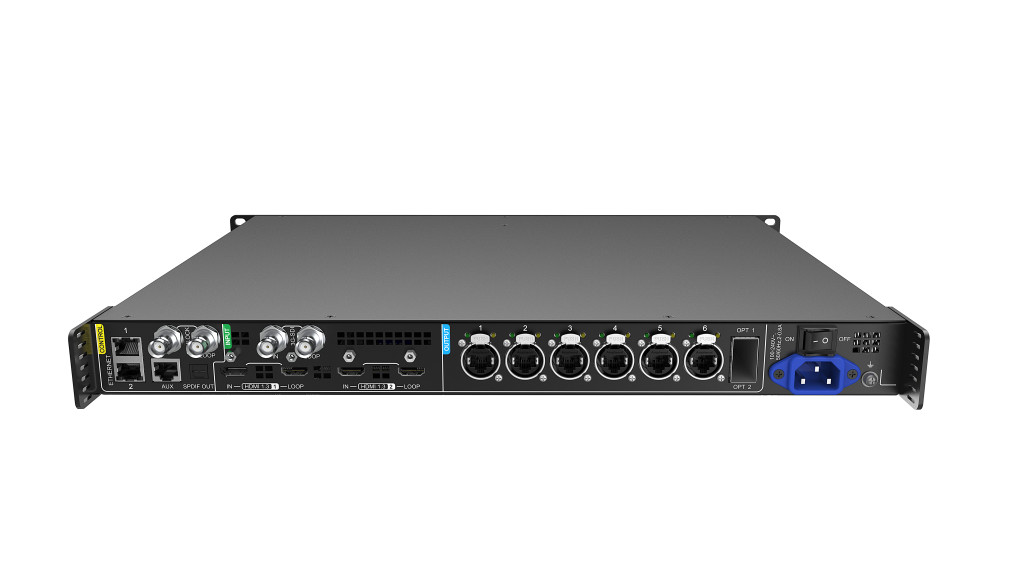

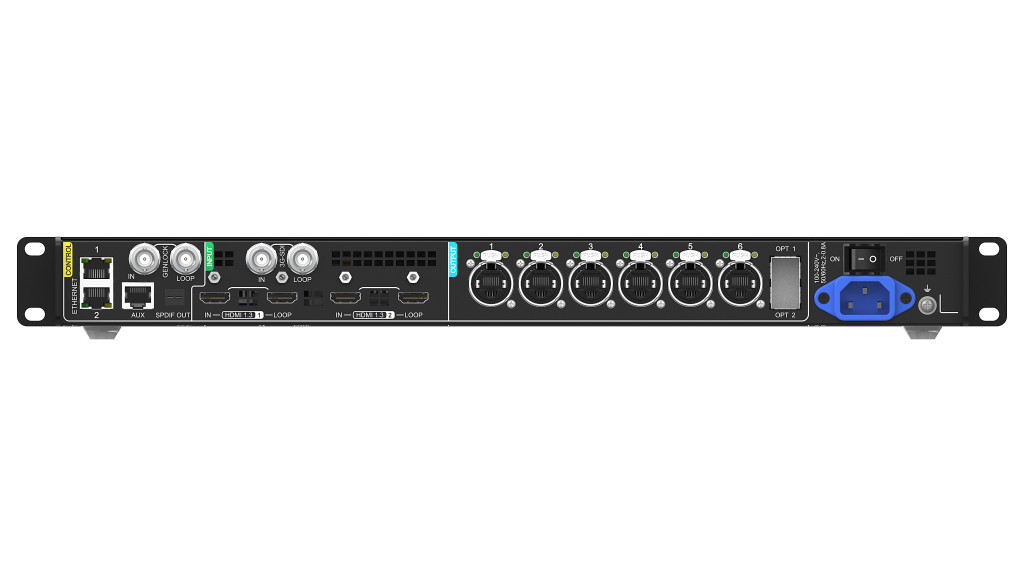

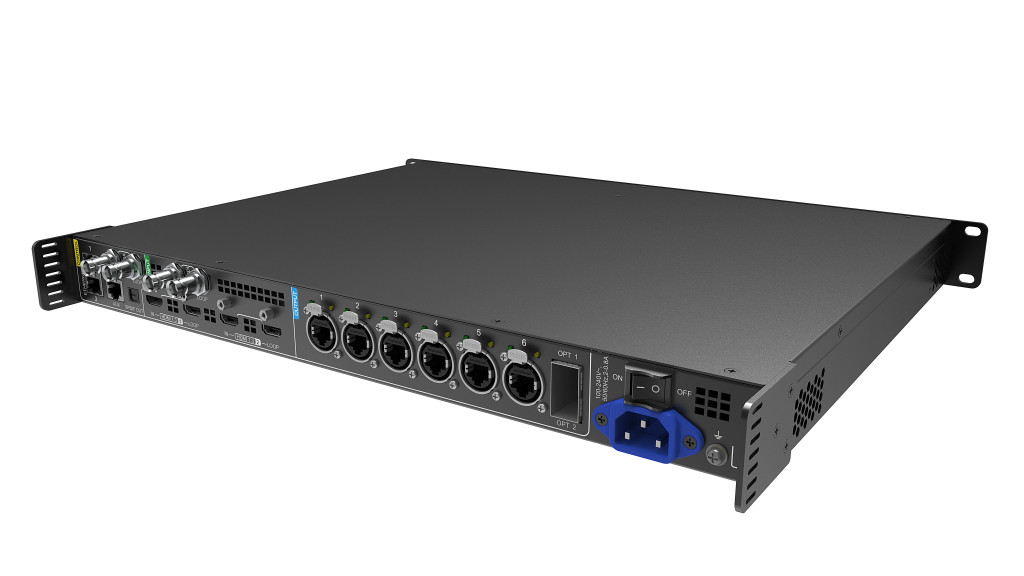

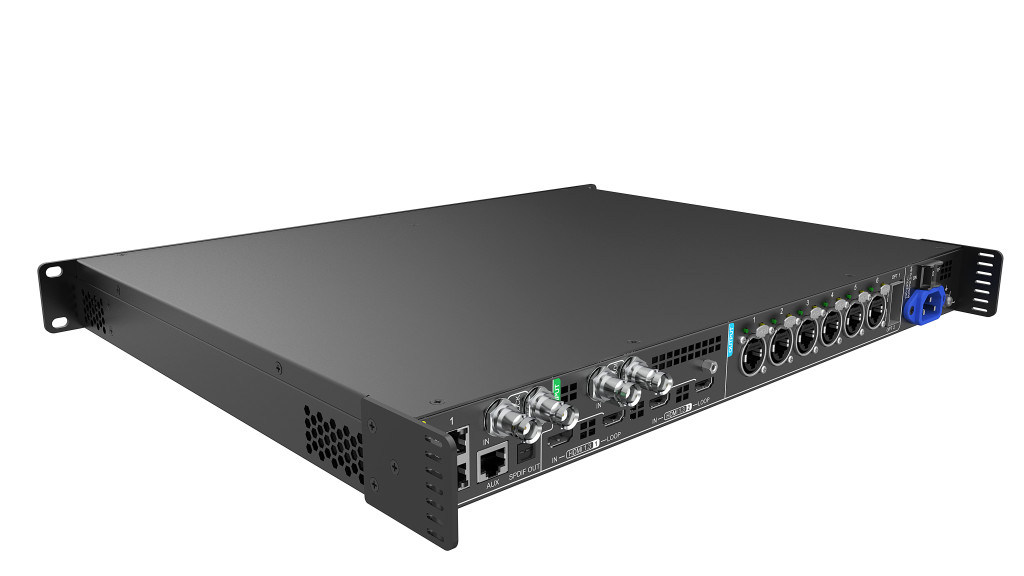

Inputs: Outputs:
 2 types of inputs
 - 2x HDMI 1.3 (with loop through)
 - 1x 3G-SDI (with loop through)
 10-bit and 8-bit video inputs
 3 types of outputs
 - 6x Gigabit Ethernet ports, load capacity up to 3.9 million pixels
 - 2x 10G optical ports
 - 1x SPDIF digital audio port
 3 types of controls
 - 1x Genlock signal input (with loop through)
 - 2x Ethernet control ports
 - 1x Auxiliary port

Specifications
User Manual
Upgrade manual
Firmware V1.4.0
Rerelase Notes
Firmware 1.2.1
Rerelase Notes

Data
Crowd:
8,9 kg/db
