MX30
Cikkszám:
M02060017

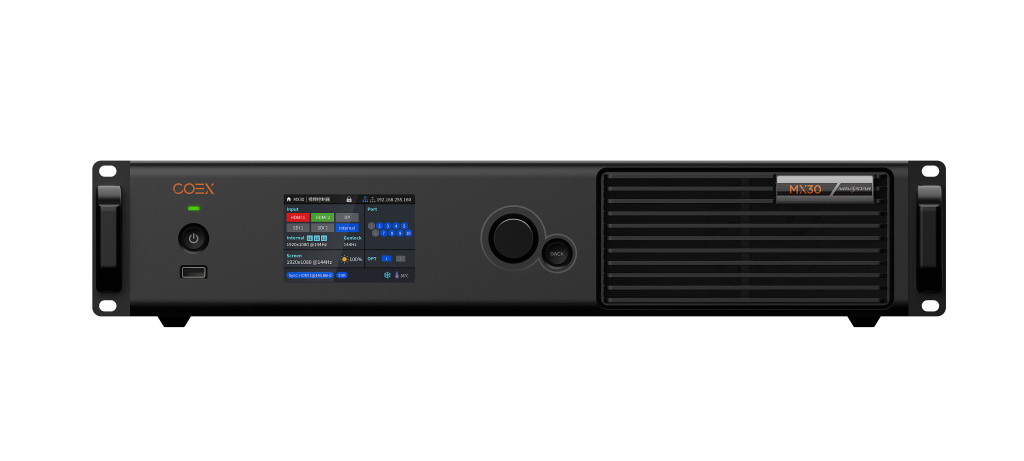

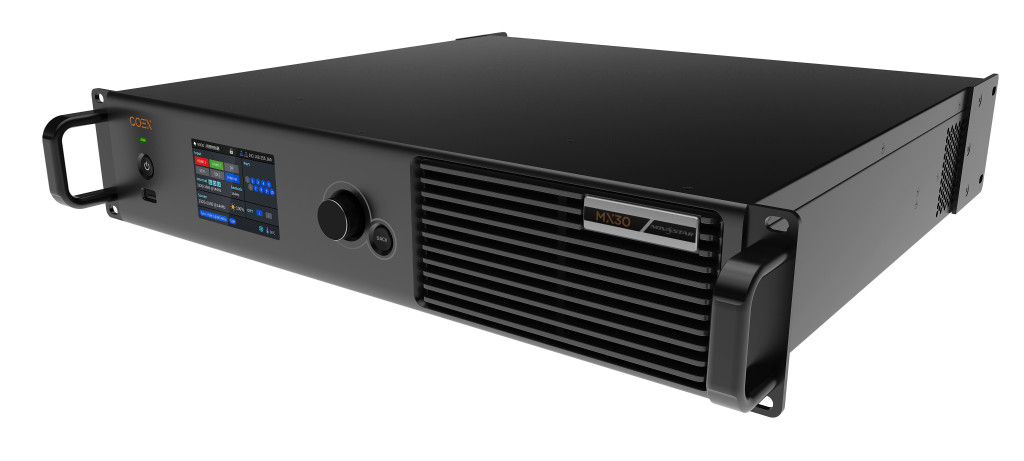

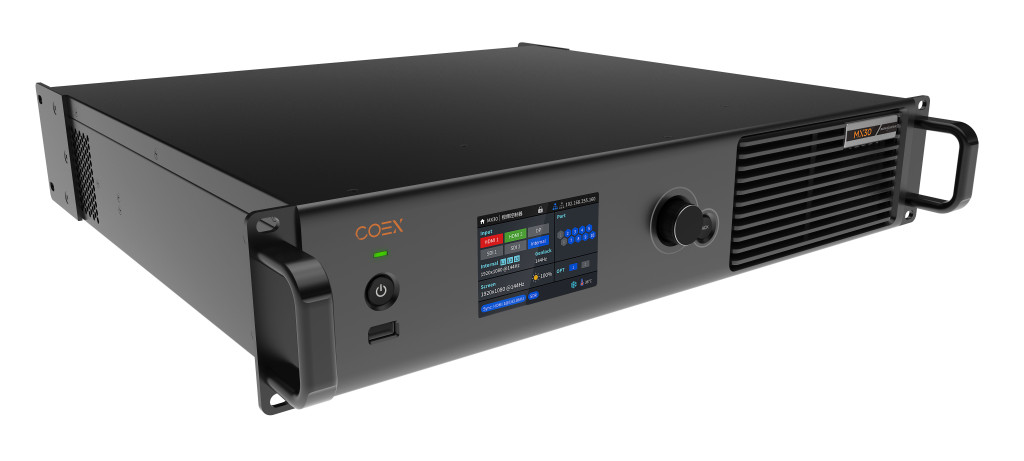

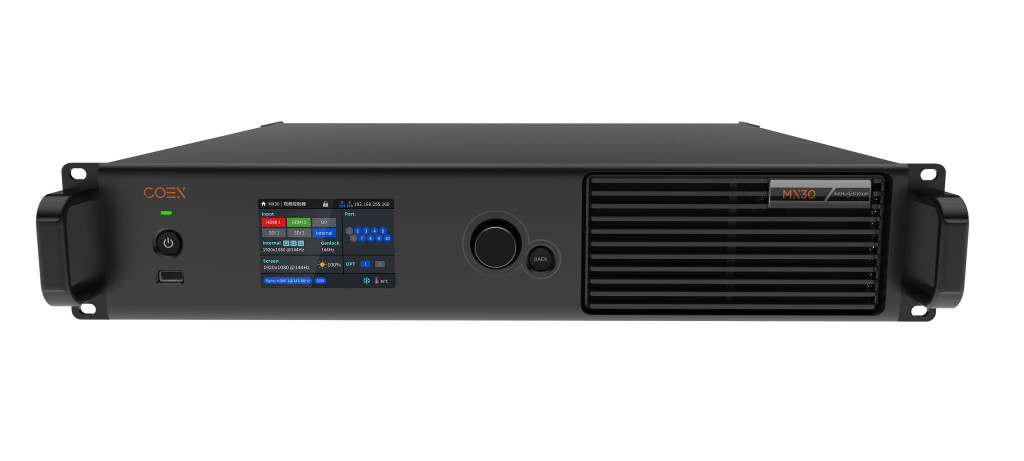

The MX30 is an all-in-one LED display controller in the brand-new control system COEX series of Xi’an NovaStar
Tech Co., Ltd. (hereinafter referred to as NovaStar). This controller integrates video processing and video control into
one box and offers rich video input connectors (HDMI 2.0, HDMI 1.4, DP 1.1 and 3G-SDI), 10x Ethernet output ports
and 2x 10G optical ports. It can also work with the brand-new software VMP (Vision Management Platform) to provide
a better operation and control experience.

MX30
MX30
MX30
MX30
MX30
MX30
MX30
MX30
1
8
Details

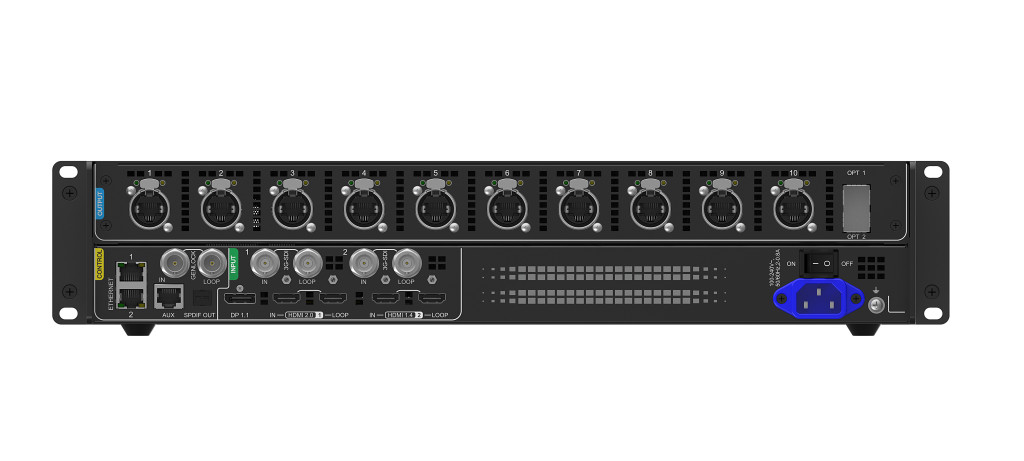

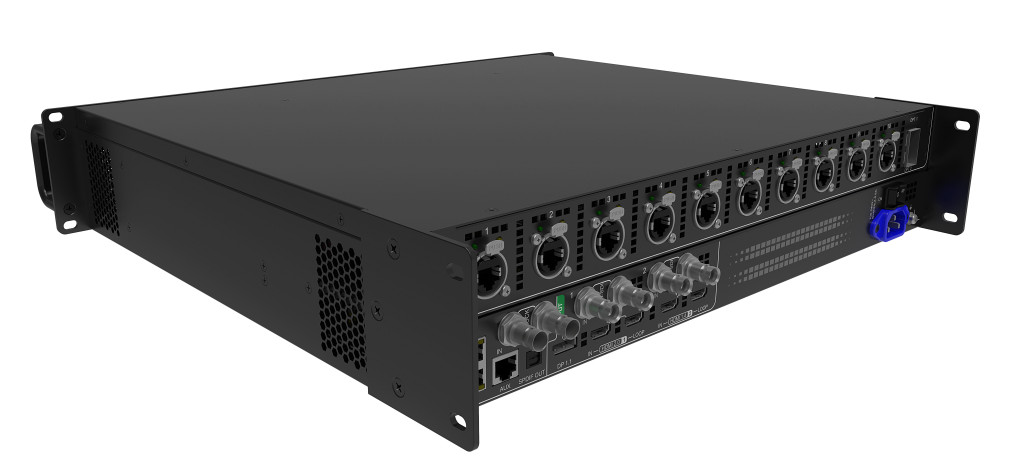

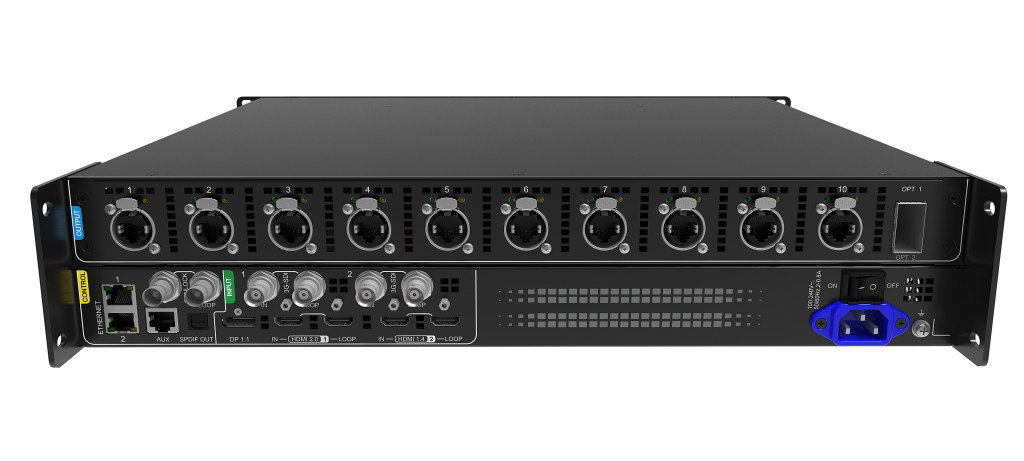

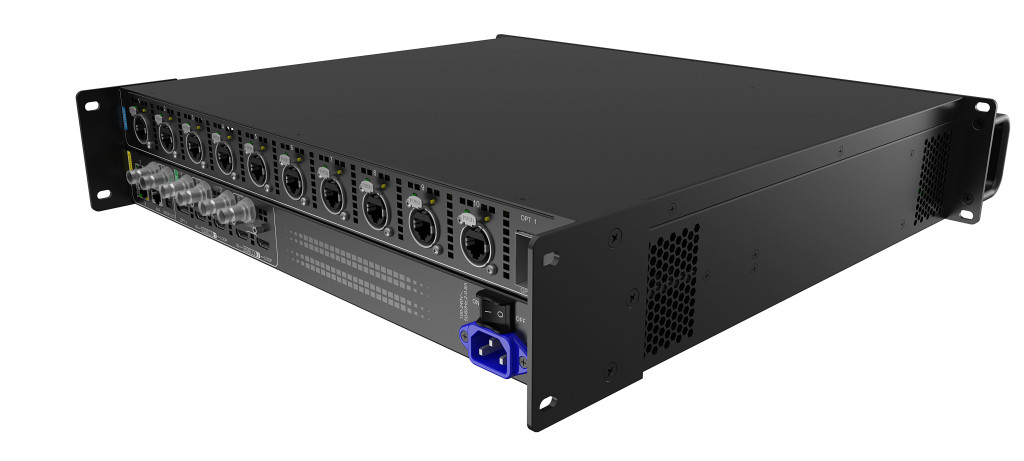

Inputs: Outputs:
 Multiple types of inputs
 − 1x HDMI 2.0 (with loop through)
 − 1x HDMI 1.4 (with loop through)
 − 1x DP 1.1
 − 2x 3G-SDI (with loop through)
 10-bit and 8-bit video inputs		  3 types of outputs
 − 10x Gigabit Ethernet ports, load capacity up
    to 6.5 million pixels
 − 2x 10G optical ports
 − 1x SPDIF digital audio port
 3 types of controls
 − 1x Genlock signal input (with loop through)
 − 2x Ethernet control ports
 − 1x Auxiliary port

Specifications
User Manual
Upgrade manual
Firmware V1.4.0
Rerelase Notes
Firmware 1.2.1
Rerelase Notes

Data
Crowd:
10,2 kg/db
