MX40 Pro
Cikkszám:
M02070009

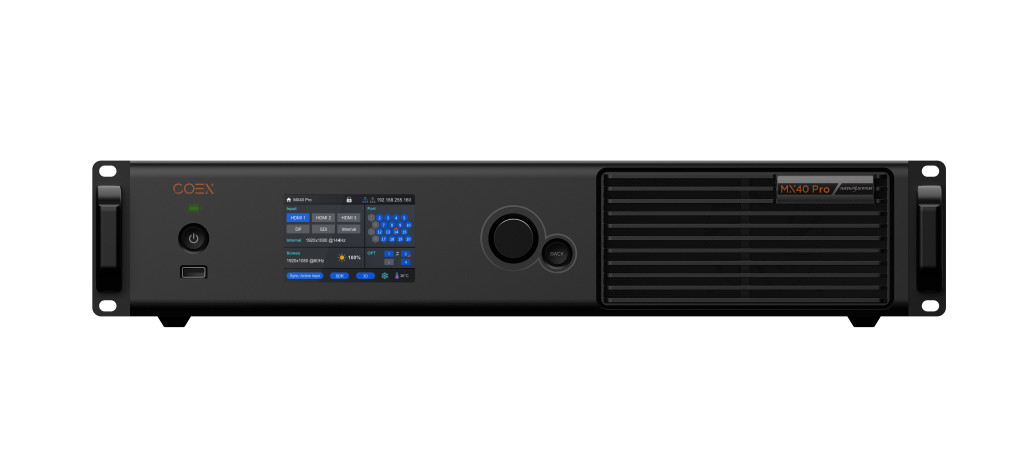

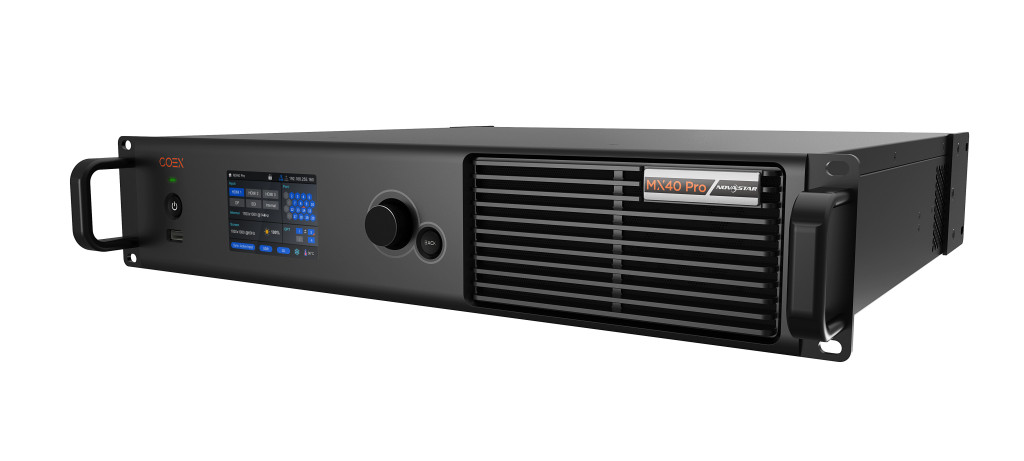

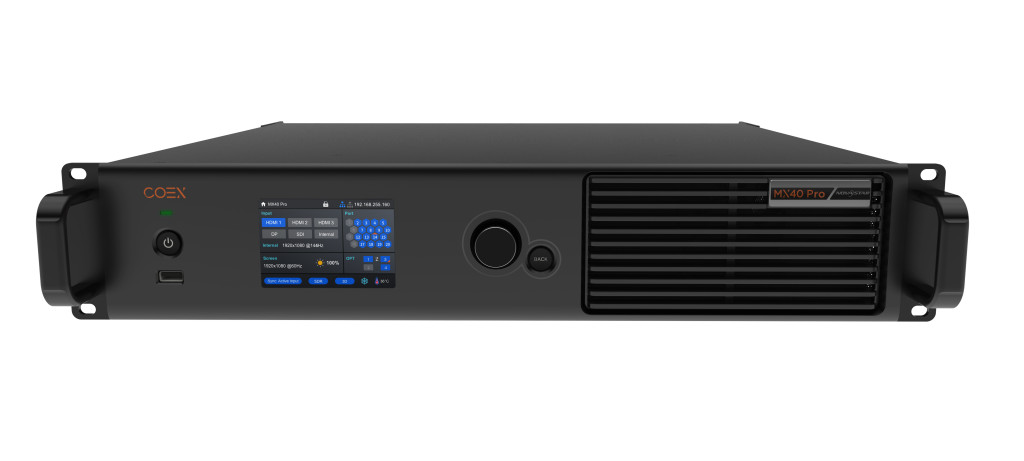

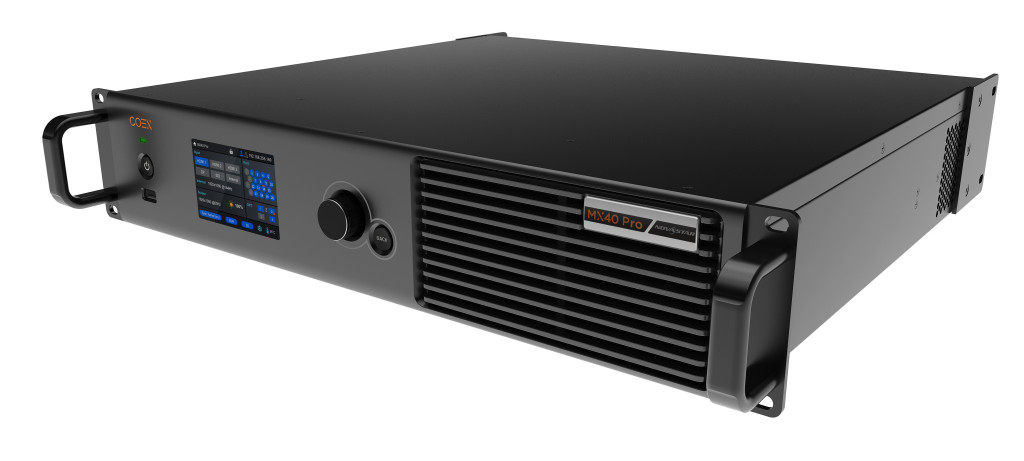

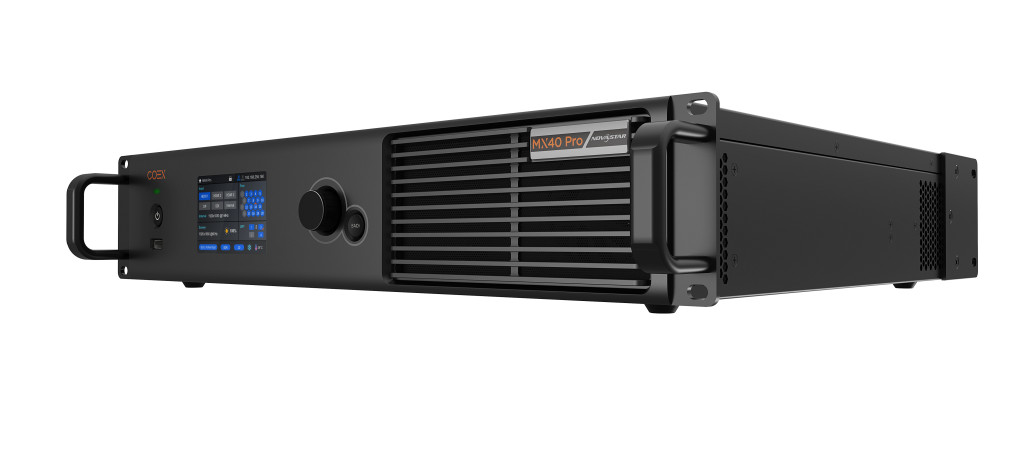

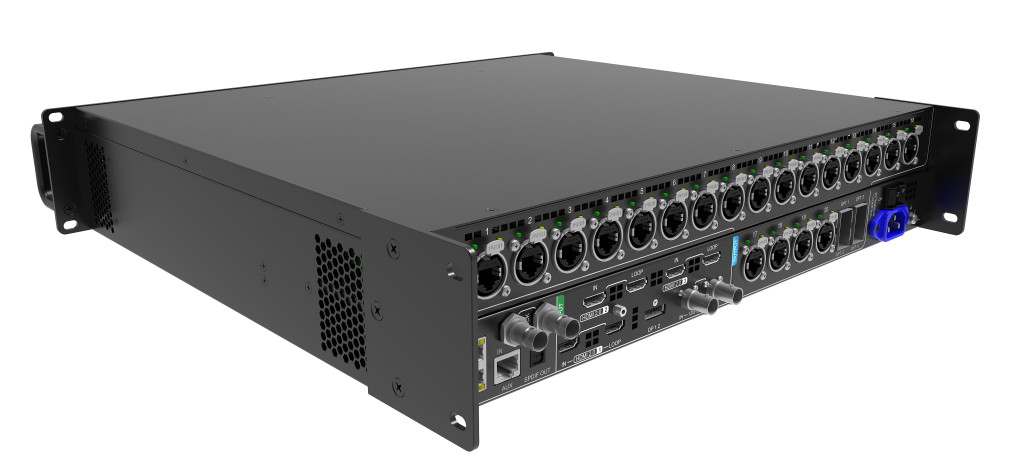

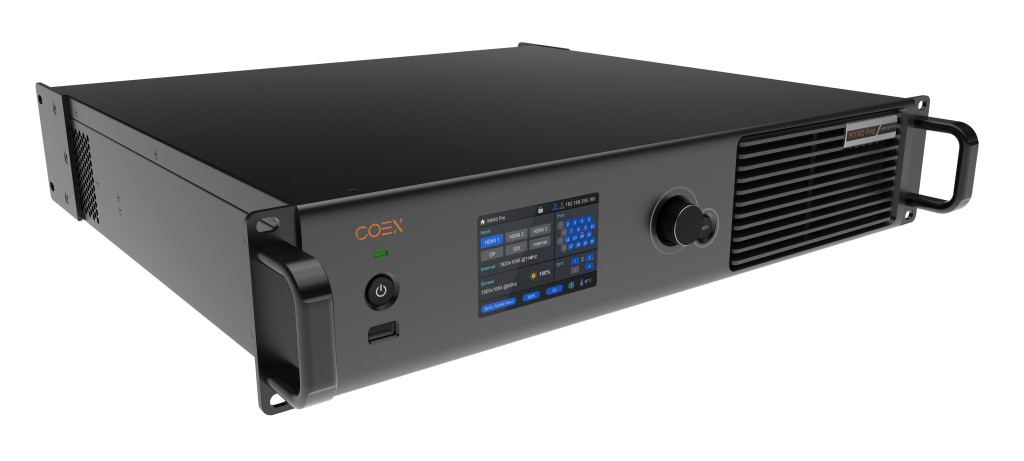

The MX40 Pro is a flagship all-in-one LED display controller with 20 Ethernet ports in the brand-new control system
COEX series of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This controller integrates video
processing and video control into one box and offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI),
20x Ethernet output ports and 4x 10G optical ports (supports synchronous output). It can also work with the brandnew software VMP (Vision Management Platform) to provide a better operation and control experience.

MX40 Pro
MX40 Pro
MX40 Pro
MX40 Pro
MX40 Pro
MX40 Pro
MX40 Pro
MX40 Pro
MX40 Pro
MX40 Pro
1
10
Details

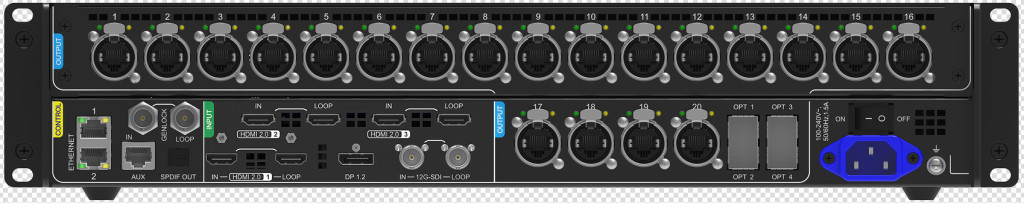

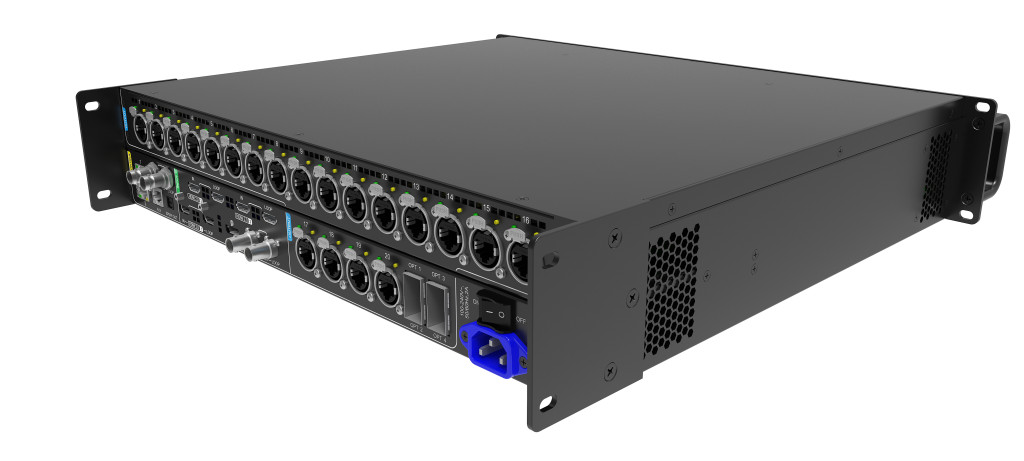

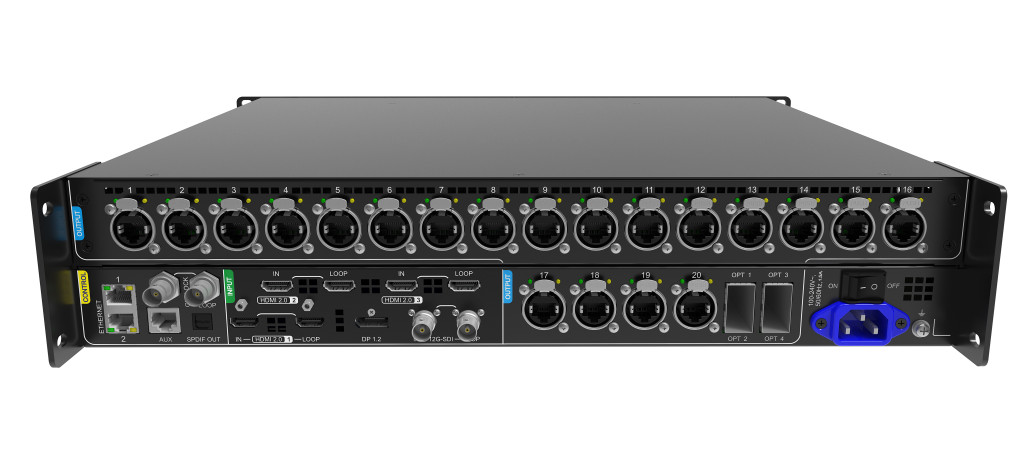

Inputs: Outputs:
 3 types of inputs
− 3x HDMI 2.0 (with loop through)
− 1x DP 1.2
− 1x 12G-SDI (with loop through)
 12-bit, 10-bit and 8-bit video inputs		  3 types of outputs
− 20x Gigabit Ethernet ports, load capacity up
to 9 million pixels
− 4x 10G optical ports, supporting setting of
output mode. Users may choose between 20-
port mode and 40-port mode.
− 1x SPDIF digital audio port
 3 types of controls
− 1x Genlock signal input (with loop through)
− 2x Ethernet control ports
− 1x Auxiliary port

Specifications
User manual
Upgrade Manual
Firmware 1.4.0
Realese Note
Firmware 1.2.3
Realese Note
Data
Crowd:
11,1 kg/db
