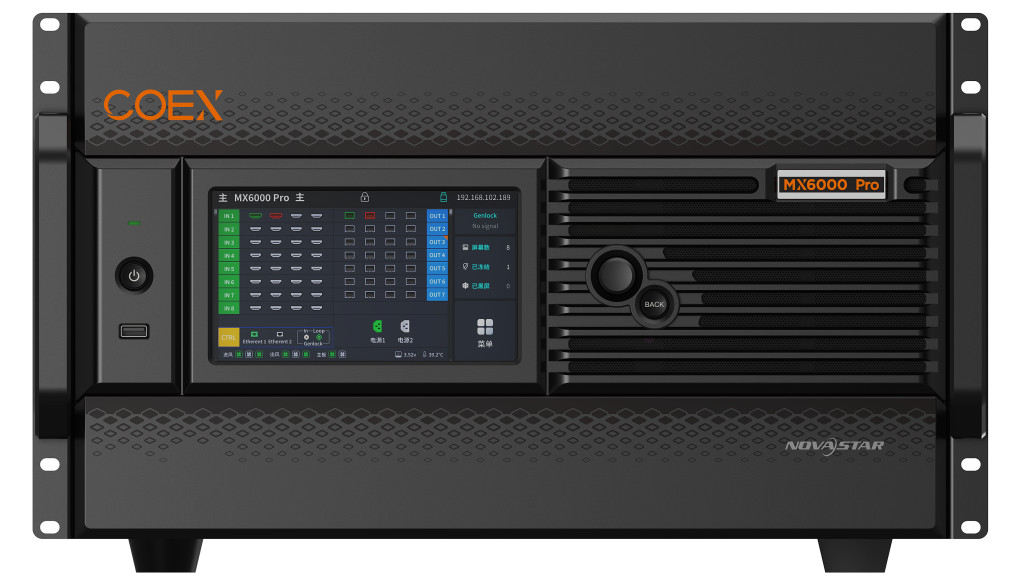

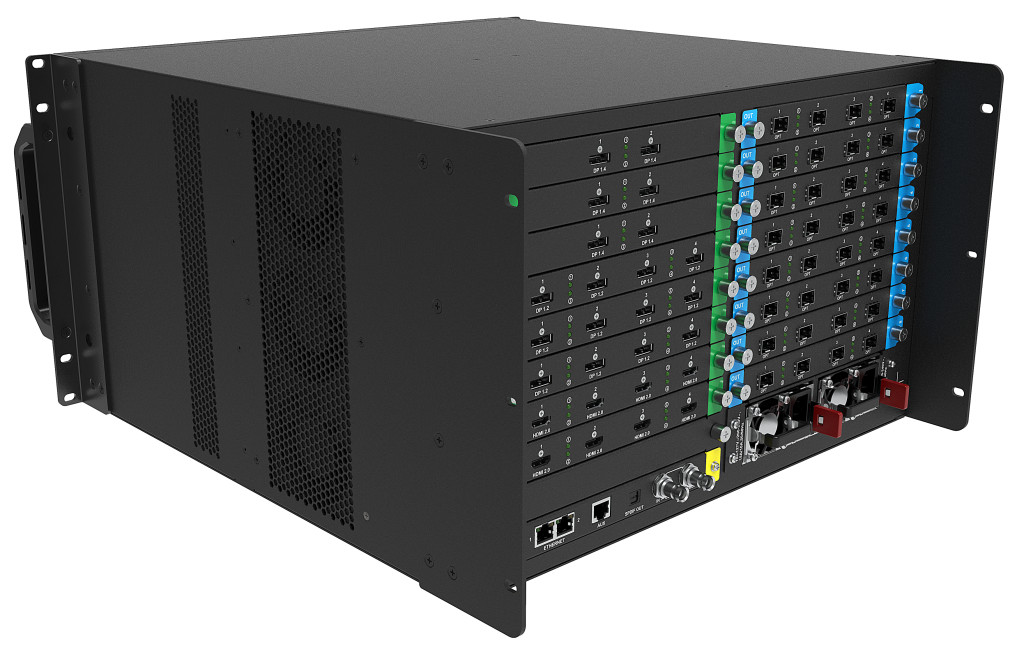

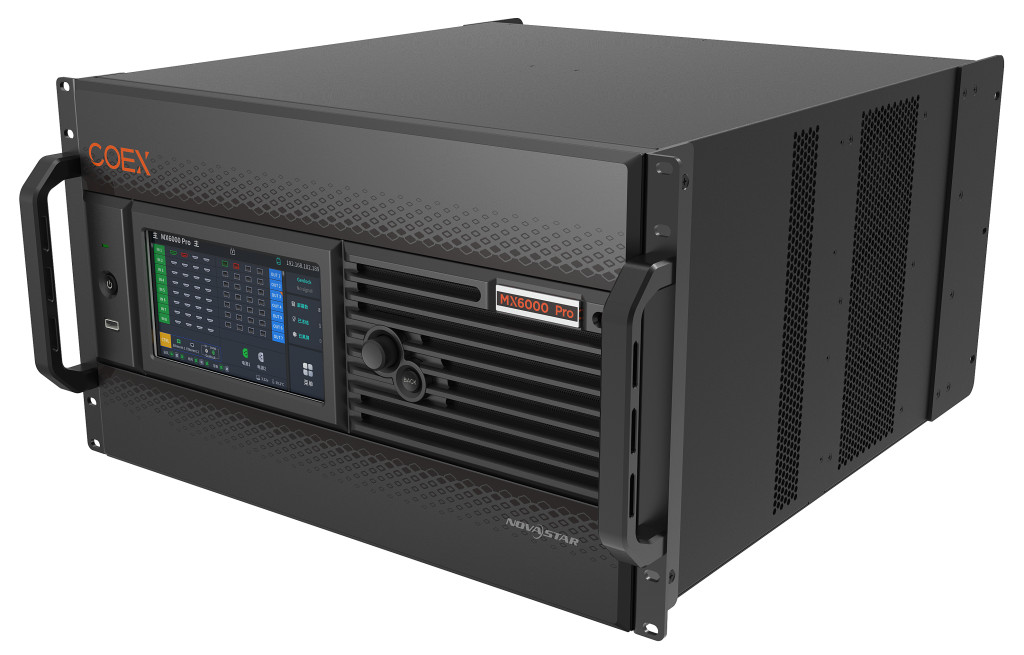

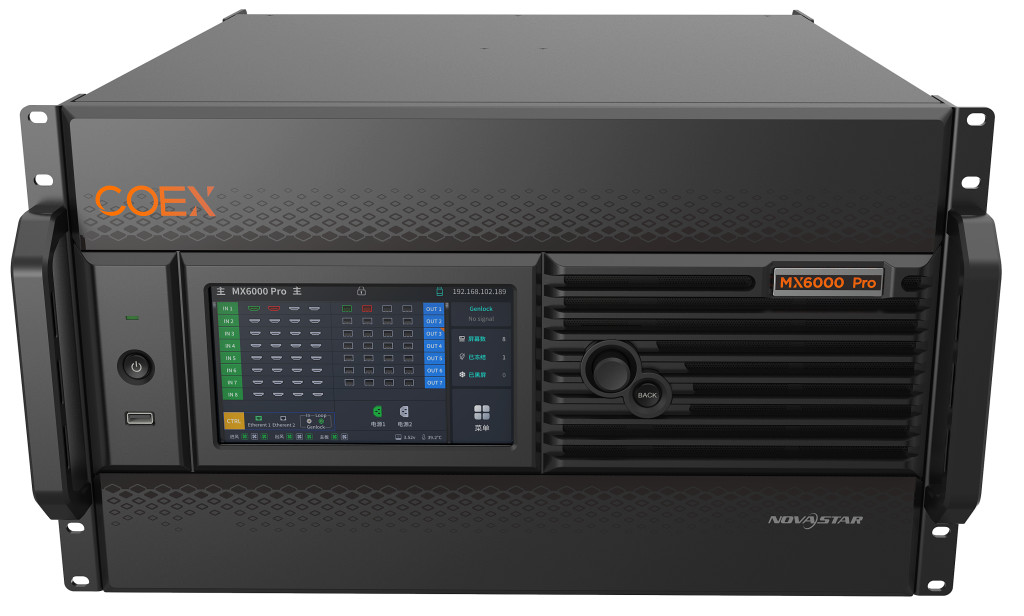

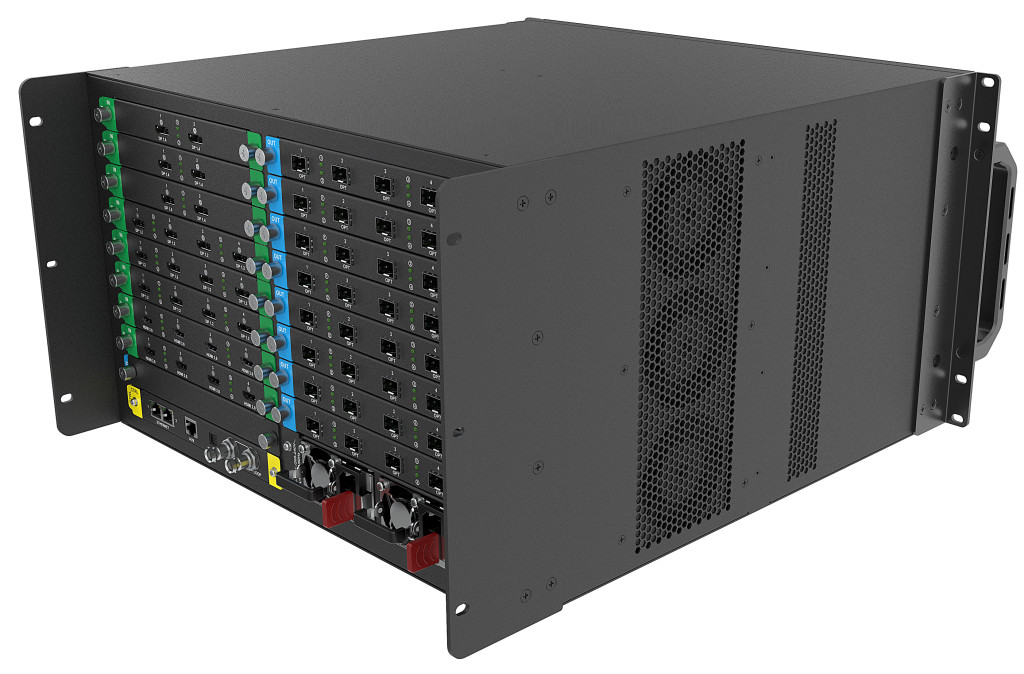

MX6000 Pro Master
The MX6000 Pro is a large professional 8K LED display controller from Xi'an NovaStar Tech Co., Ltd. (hereinafter
referred to as NovaStar), designed as part of the COEX control system series. Its remarkable features include 12-
bit color depth, 480 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability,
providing precise brightness control, true-to-life color fidelity, and an excellent image quality. Its card-based
modular design is specifically tailored for future LED displays, allowing for flexible input and output card
configurations that are stable and easy to maintain. With a compact 6U size, it supports up to 32x 4K@60Hz or
16x 8K@30Hz video inputs, with a maximum load capacity of 141 million pixels, making it ideal for large-screen
configurations.
The MX6000 Pro offers a wide range of options with up to 8 different input cards supporting 8K, 4K, and VoIP. For
output, it supports two types of output cards: 4x 10G fiber and 1x 40G fiber. These cards can be configured
flexibly to accommodate either 1G or 5G bandwidth for the control system, catering to different requirements

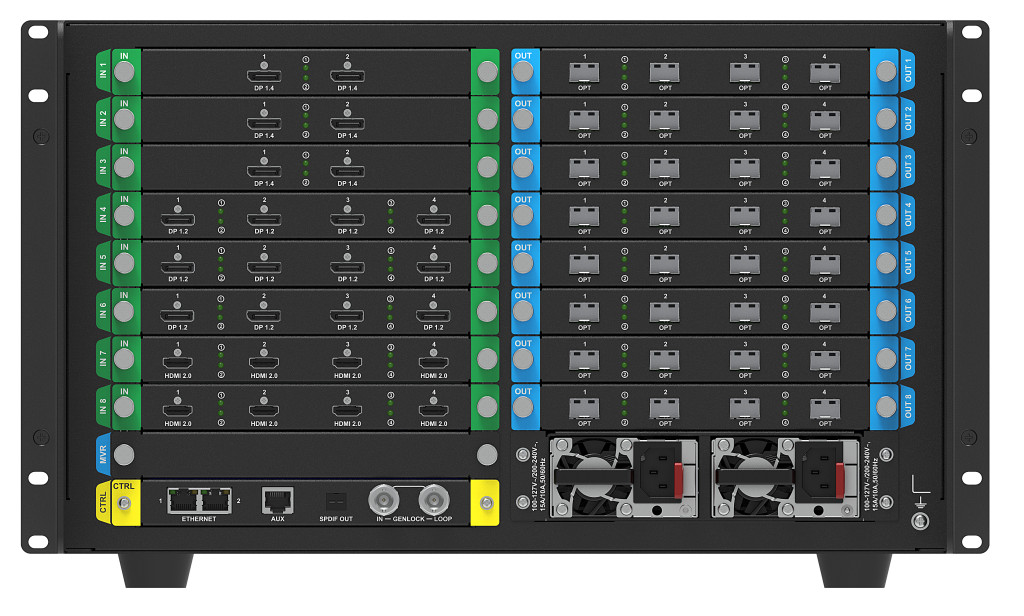

| Input: | Output: |
| 8x input card slots, users may choose input cards of the following types: − 4K input cards 4x HDMI 2.0, 4x DP1.2, 4x 12G-SDI − 8K input cards 2x HDMI 2.1, 2x DP 1.4, 1x DP 1.4 + 1x HDMI 2.1 − VoIP card (Video over IP) 1x ST 2110 (25G), 2x ST 2110 (25G) Authentic 12bit video input 12-bit/10-bit/8-bit supported |
8x output card slots, users may choose output cards of the following types: − 1x40G fiber output card Work with CVT8-5G fiber converter to achieve 5G transmission (capable of loading 2,951,200 pixels in a single Ethernet cable). − 4x10G fiber output card Work with CVT10 fiber converter to achieve 1G transmission (capable of loading 650,000 pixels in a single Ethernet cable). Supports real-time previewing and monitoring of the video source input and LED screen display status. Supports frame rates of up to 480 Hz (max frame rate is decided by the screen's hardware configuration). |
