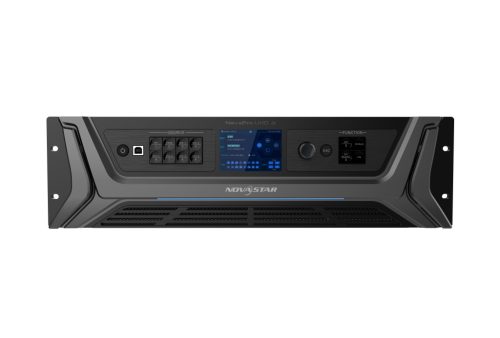

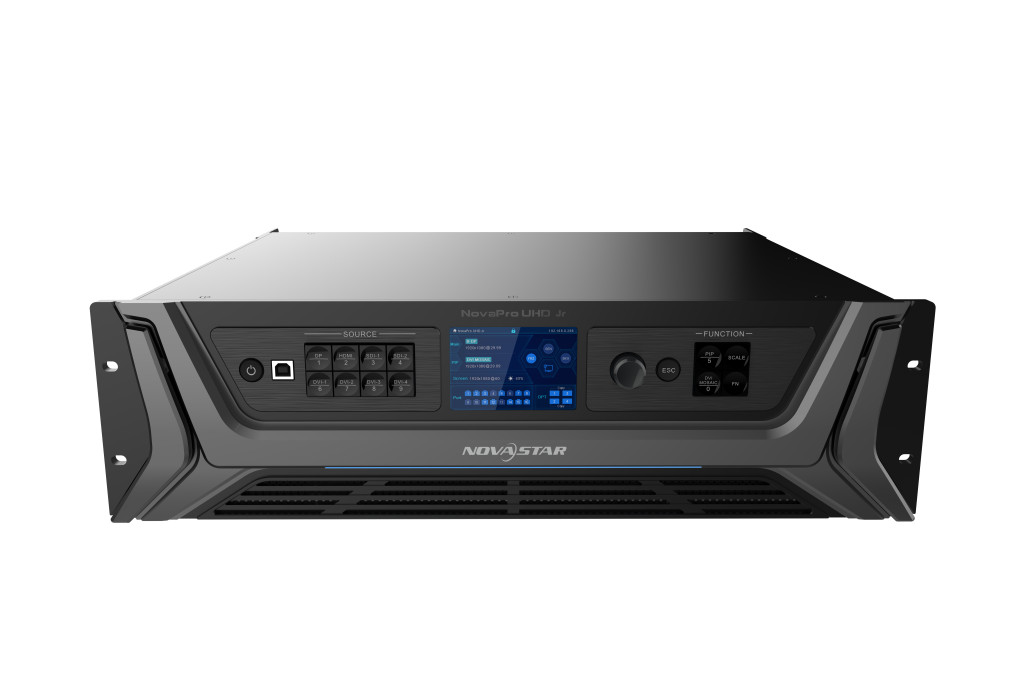

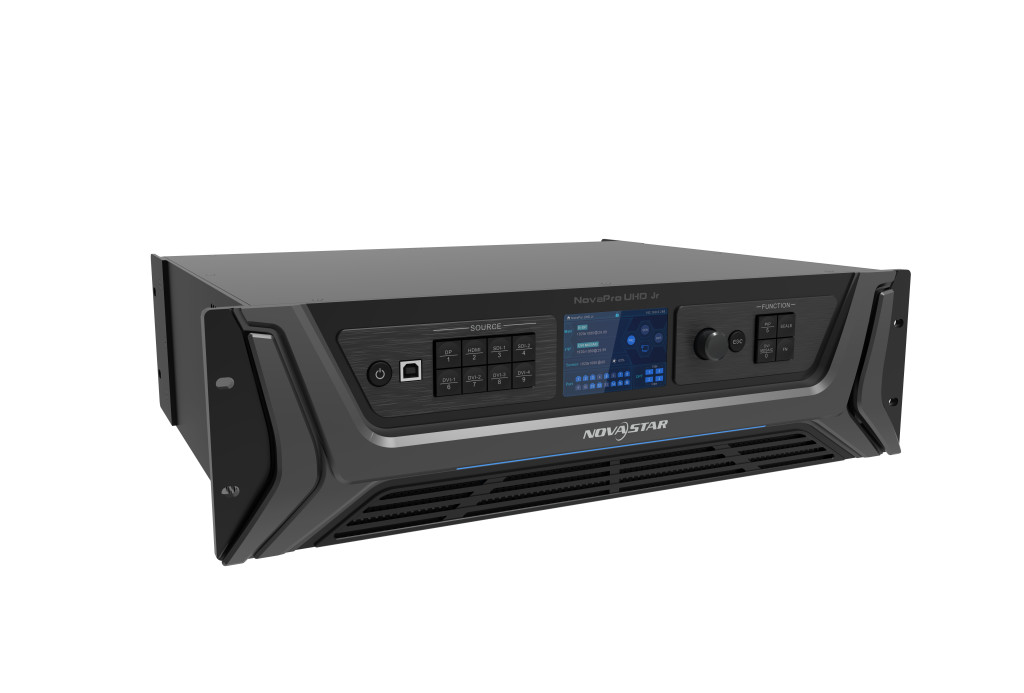

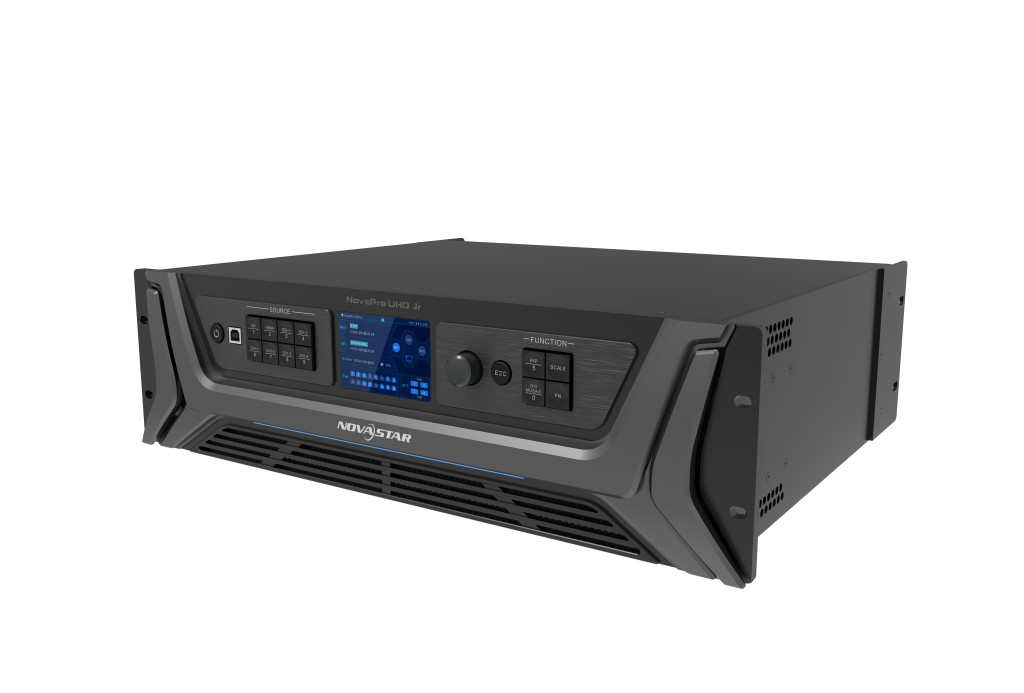

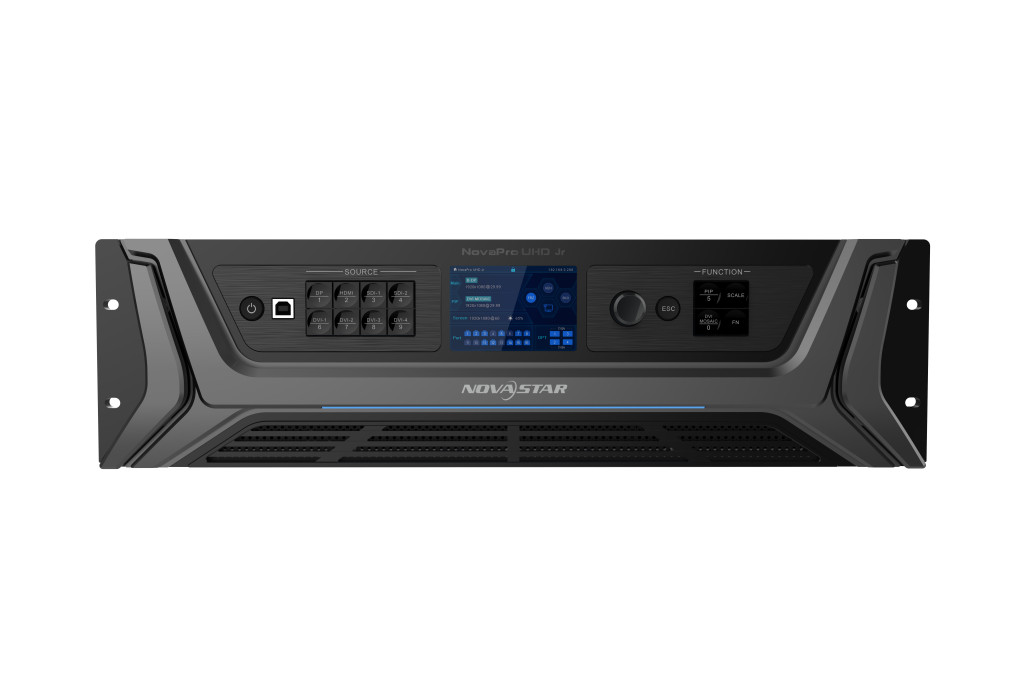

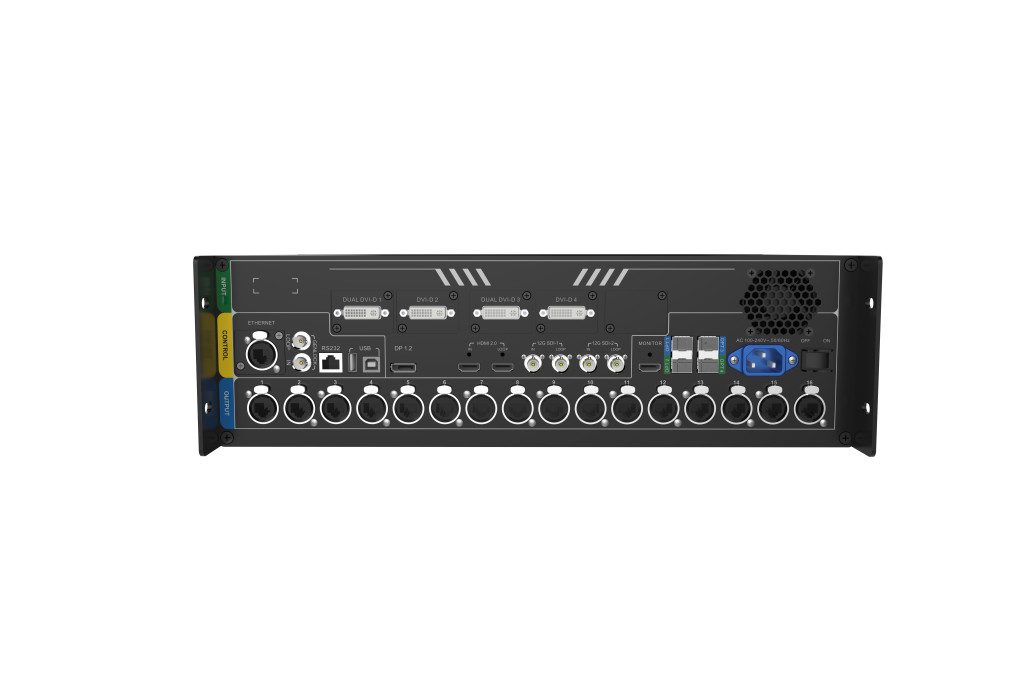

NovaPro UHD Jr

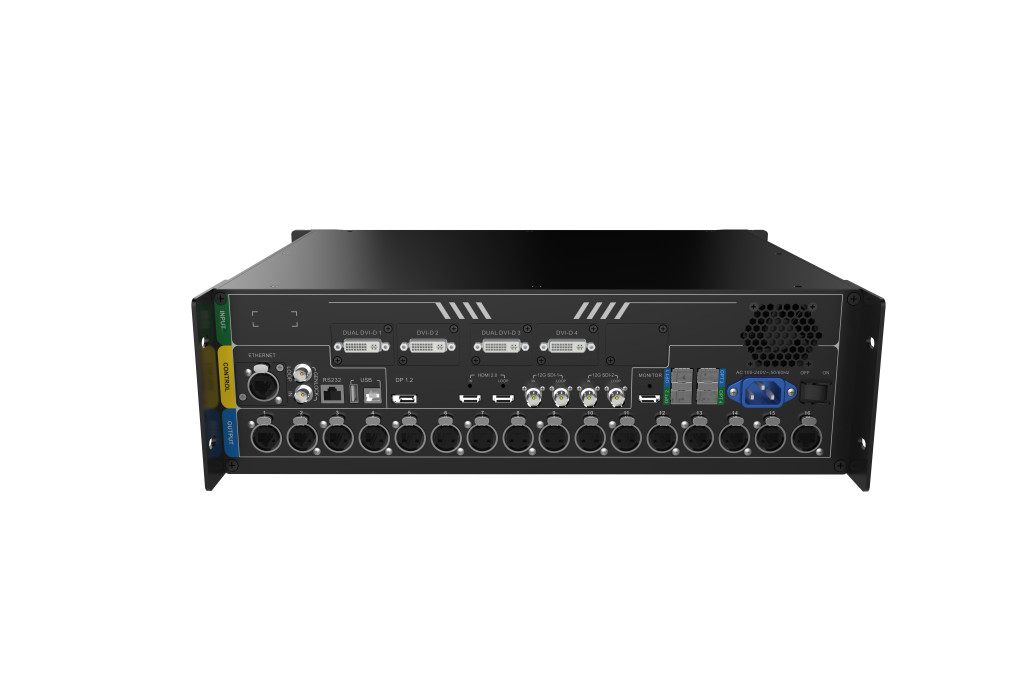

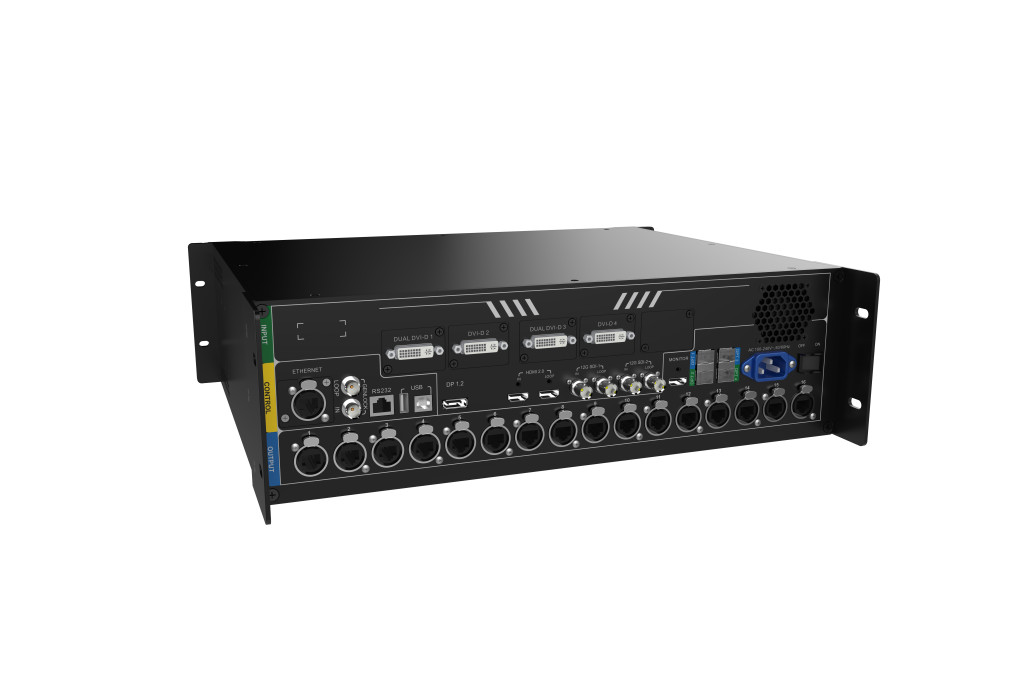

4xDVI:

 Four DVIs are all single-link DVI connectors by default.
− 4x DVI inputs
− Each DVI: Input resolution up to 2048×1152@60Hz, downward compatible− 4 DVI input sources constitute 1 input source (DVI MOSAIC).
− Max. width: 3840 pixels. Max. height: 3840 pixels

 In dual-link mode.
− DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and
DVI 4 are unavailable.− DVI 1/DVI 3: Input resolution up to 3840×1080@60Hz,
downward compatible.
− 2 DVI input sources constitute 1 input source (DVI MOSAIC).
− Max. width: 3840 pixels. Max. height: 3840 pixels

 Supports input resolution settings.
 HDCP 1.4 compliant
 Does not support interlaced signal inputs.

2x12G-SDI:

 Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292
(HD) standard video inputs.

 Input resolution up to 4096×2160@60Hz, downward compatible

 Supports interlaced signal inputs.

 Does not support input resolution and bit depth settings.

 Maximum resolution supported:
Max. width: 8192 pixels. Max. height: 8192 pixels

1xDP 1.2:

 Input resolution up to 3840×2160@60Hz, downward compatible

 HDCP 1.3 compliant

 Supports input resolution settings.

 Maximum resolution supported:
Max. width: 8192 pixels. Max. height: 8192 pixels

 Does not support interlaced signal inputs.

1xHDMI 2.0:

 Input resolution up to 3840×2160 @60Hz, downward compatible

 HDCP 2.2 compliant

 Supports input resolution settings.

 Maximum resolution supported:
Max. width: 8192 pixels. Max. height: 8192 pixels

 Does not support interlaced signal inputs.

16xEthernet port:

 16x Neutrik Gigabit Ethernet output connectors, allowing for a
loading capacity of up to 10,400,000 pixels.

 Maximum loading capacity:
Max. width: 16384 pixels, max. height: 8192 pixels

 Maximum loading capacity of a single Ethernet port:
− 8-bit input source: 650,000 pixels.
− 10-bit/12-bit input source: 320,000 pixels.

4xOPT 1–4:

10G optical connectors
Copy and hot backup modes are available when four OPT ports are all
used for output.

 OPT 1 transmits data of Ethernet ports 1–8.

 OPT 2 transmits data of Ethernet ports 9–16.

 OPT 3 serves as the copy/hot backup for OPT 1.

 OPT 4 serves as the copy/hot backup for OPT 2.

1xHDMI 2.0 LOOP:

 HDMI loop output
Only 1 level of device cascading supported

 HDCP 2.2 compliant

 EDID management supported

2x12G-SDI LOOP:

SDI loop output

MONITOR:

 An HDMI connector dedicated for output monitoring

 Resolution up to 1920×1080@60Hz
