T30

Cikkszám:
M06020133

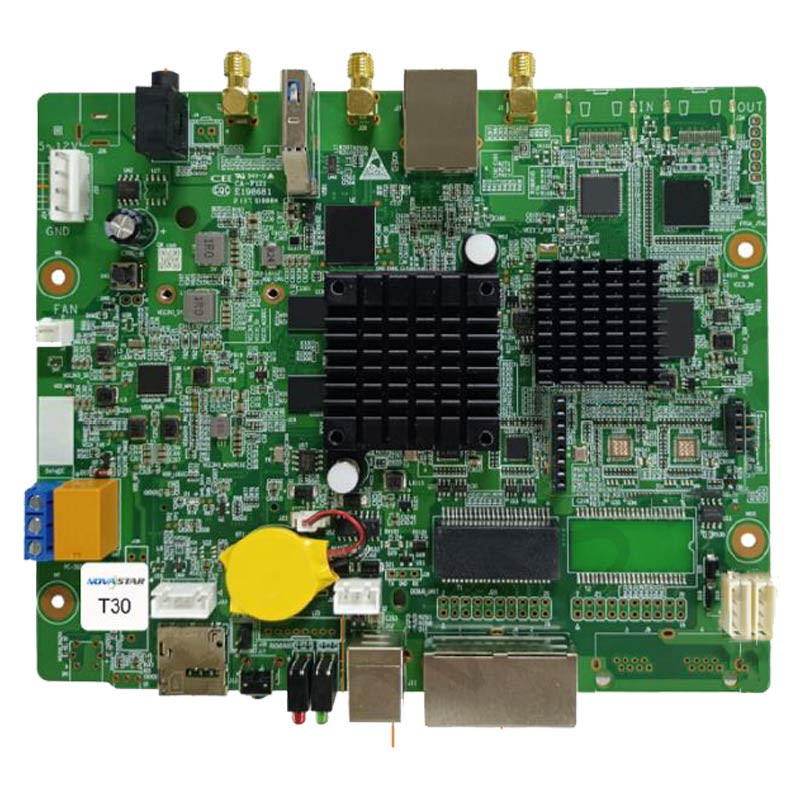

The T30 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia
player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a
computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the
T30 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

T30
Details
Input Output
2x Sensor connectors
Connect to brightness sensors or temperature
and humidity sensors.

 Loading capacity up to 650,000 pixels
Maximum width: 4096 pixels
Maximum height: 4096 pixels
 2x Gigabit Ethernet ports
One serves as primary and the other as backup.
 1x Stereo audio connector
The audio sample rate of the internal source is
fixed at 48 kHz. The audio sample rate of the
external source supports 32 kHz, 44.1 kHz, or
48 kHz. If NovaStar’s multifunction card is used

for audio output, audio with a sample rate of 48
kHz is required.



Control
 1x USB 3.0 (Type A) port
Allows for USB playback and firmware upgrade
over USB.

 1x USB (Type B) port
Connects to the control computer for content
publishing and screen control.
 1x Gigabit Ethernet port
Connects to the control computer, a LAN or
public network for content publishing and screen
control.

Specifications
