TU4K Pro
Cikkszám:
M02070045

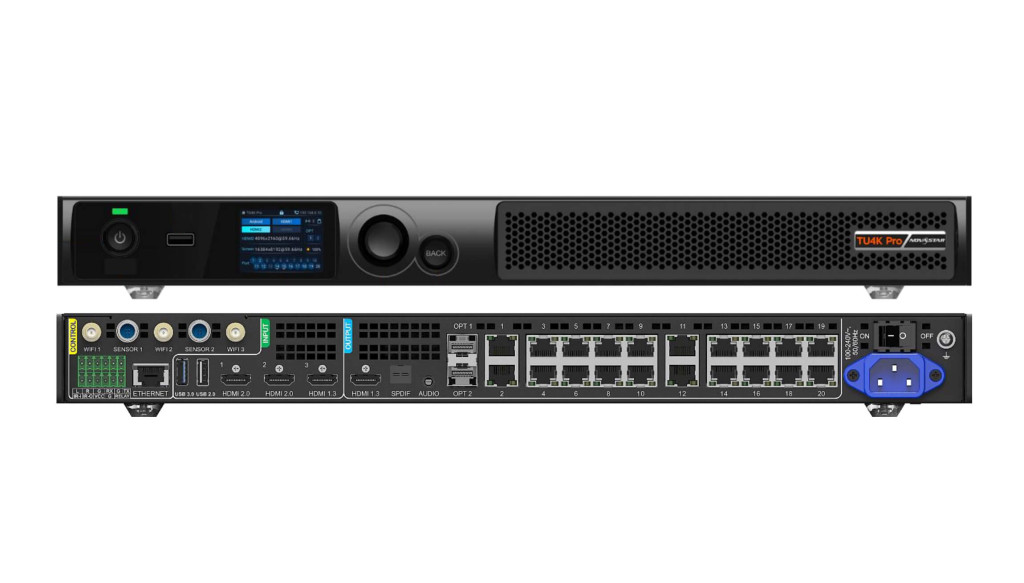

The TU4K Pro is an LED playback control processor specially designed by Xi’an NovaStar Tech
Co., Ltd. (hereinafter referred to as NovaStar) for LED screen applications. It integrates the
Android system, sending card and video processing functions into one unit, and allows thirdparty apps to run on it, featuring powerful interaction, display and playback control capabilities.
The TU4K Pro supports a maximum load capacity of 13 million pixels and offers convenient LED
screen control via the front panel LCD or a remote control.
Details
| Inputs | Outputs |
| 2x HDMI 2.0 inputs 1x HDMI 1.3 input 1x USB 3.0 input 2x USB 2.0 inputs |
1x HDMI 1.3 output for monitoring and debugging 20x Gigabit Ethernet outputs 2x OPT outputs 4x audio outputs − 1x SPDIF digital audio output − 1x 3.5-mm audio output − 1x HDMI eARC audio output − 1x Phoenix audio output Output image scaling − Width range: 64 to 16384 pixels − Height range: 64 to 8192 pixels − Total device load capacity ≤ 13 million pixels |
Note: When using the scaling function,
the maximum load capacity is 13 million
pixels, while the maximum pixel load for
pixel-to-pixel display is 8.8 million. For
any questions, please contact NovaStar
technical support.
