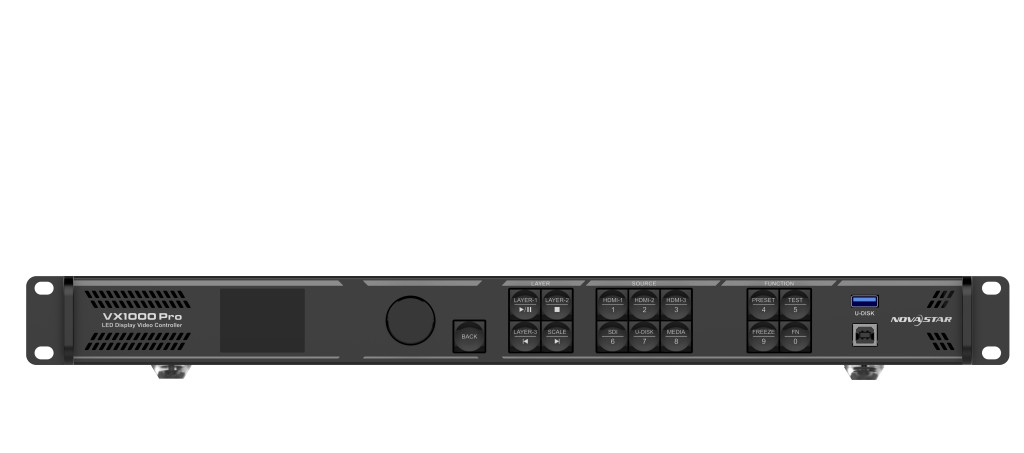

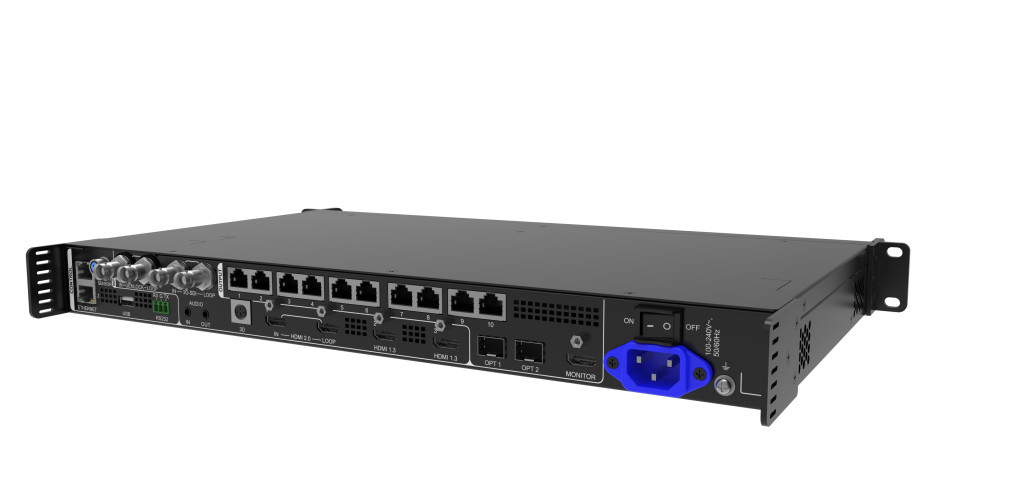

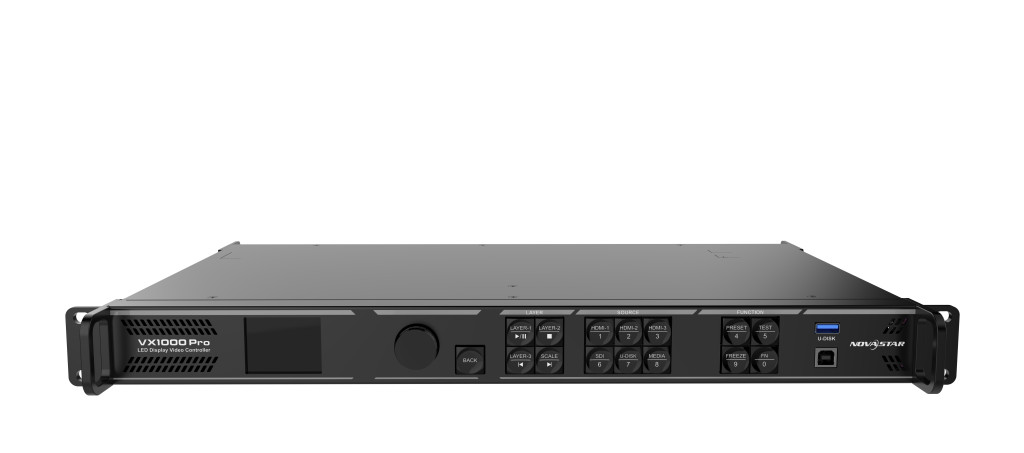

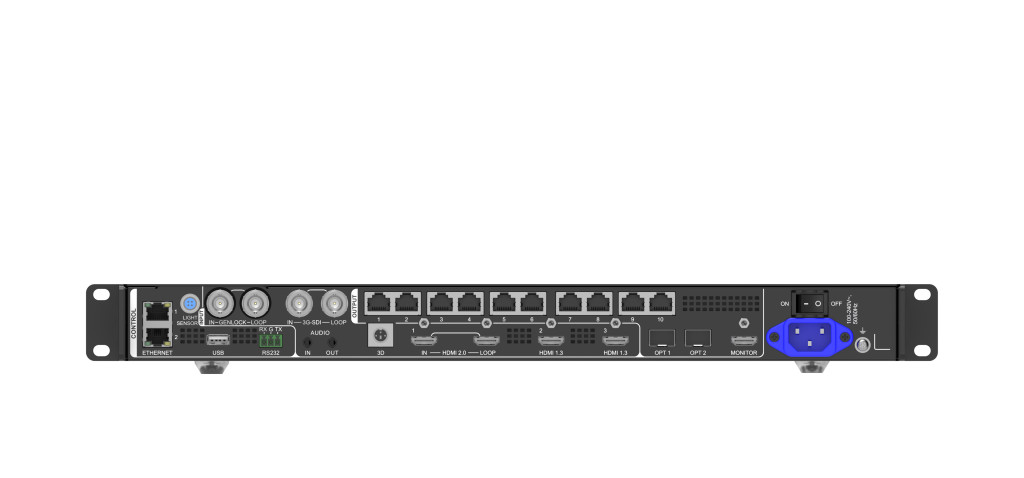

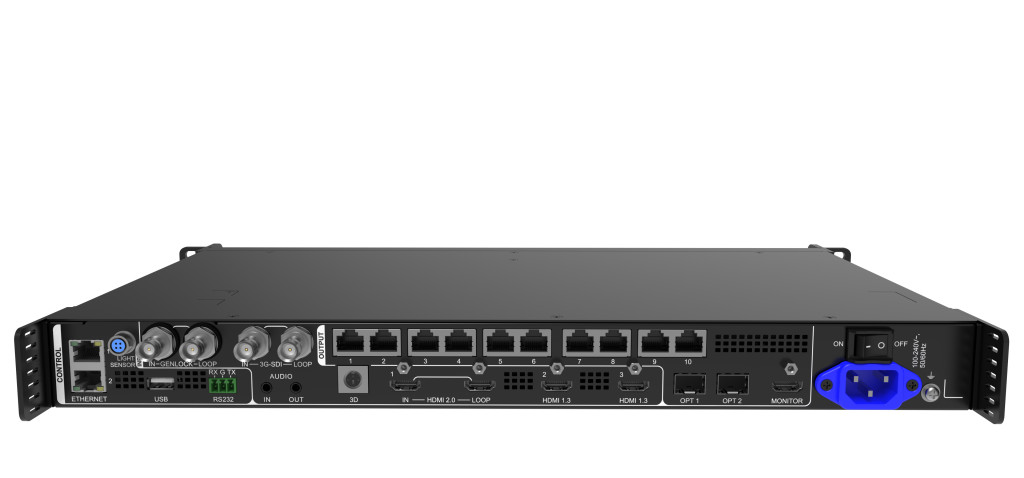

VX1000 Pro
Cikkszám:
M07010500

The VX1000 Pro is an all-in-one controller combining video processing and video control
functionalities into a single device. Equipped with 10 Ethernet ports, it supports three working
modes: video controller, fiber converter, and ByPass.
The VX1000 Pro boasts powerful video signal reception and processing capabilities, supporting
a maximum resolution of 4K×2K@60Hz for video input.

VX1000 Pro
VX1000 Pro
VX1000 Pro
VX1000 Pro
VX1000 Pro
1
5
Details
Loading Capacity: 6.5 million pixels
Max Width: 10240
Max Height: 8192
Input: Output:
 - 1× HDMI 2.0（IN&LOOP）
 - 2× HDMI 1.3
 - 1× 3G-SDI（IN&LOOP）
 - 1× 10G OPT Port（OPT1）
 - 1× USB3.0		  - 10× Ethernet Ports
 - 1× HDMI1.3
 - 1× HDMI 2.0 LOOP
 - 1× 3G-SDI LOOP
 - 2× OPT
Specifications
User Manual
Quick Start Guide
Rerelase Notes

Data
Crowd:
6,5 kg/db
